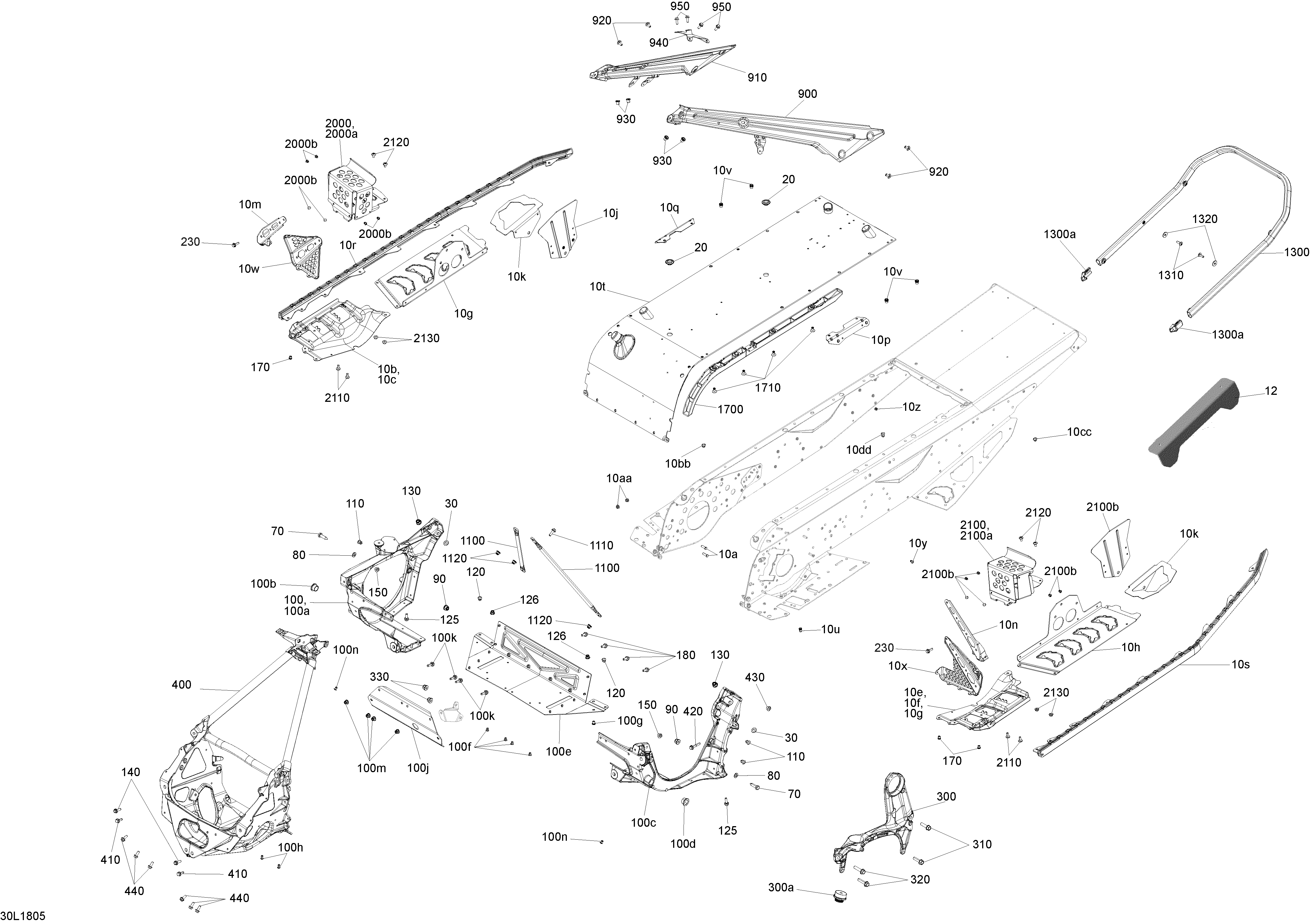

09- Frame Rave - 600 RS для BRP Lynx RAVE Racing - 2018
-
№АртикулНазвание
-
10>10dd518330124 Frame Rave Rs Black. Includes 10 to 10ddFrame Rave Rs Black. Includes 10 to 10dd
-
10a250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
10b>10c518329301 Footrest Reinforcement RhFootrest Reinforcement Rh
-
10c250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
10d>10f518329300 Footrest Reinforcement LhFootrest Reinforcement Lh
-
10e250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
10f250300031 Clinch Stud M6 X 30Clinch Stud M6 X 30
-
10g518329310 Angle Reinforcement RhAngle Reinforcement Rh
-
10h518329309 Angle Reinforcement LhAngle Reinforcement Lh
-
10j518329303 Rear Arm Support RaveRear Arm Support Rave
-
10k518329304 Rear Support RaveRear Support Rave
-
10m518329305 RH Reinforcement FootrestRH Reinforcement Footrest
-
10n518329306 LH Reinforcement FootrestLH Reinforcement Footrest
-
10p518330262 LH Member Fixation PlateLH Member Fixation Plate
-
10q518330263 RH Member Fixation PlateRH Member Fixation Plate
-
10r518329307 Right RollerRight Roller
-
10s518329308 Left RollerLeft Roller
-
10t518330337 Radiator Ass'yRadiator Ass'y
-
10u605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
10v293450275 InsertInsert
-
10w518328460 RH FootrestRH Footrest
-
10x518329645 LH FootrestLH Footrest
-
10y390909100 Avex RivetAvex Rivet
-
10z390909200 Avex RivetAvex Rivet
-
10aa293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10bb293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10cc293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
10dd293150147 Hemlock RivetHemlock Rivet
-
11518330337 Radiator Ass'yRadiator Ass'y
-
12518330274 Protective PlateProtective Plate
-
20293730052 Black PlugBlack Plug
-
30506151252 WasherWasher
-
70250000942 Hex Screw M8 X 30Hex Screw M8 X 30
-
80234081410 Flat Washer 8 mmFlat Washer 8 mm
-
90233281414 Hex. Flanged Elastic Nut M8 X 1.25Hex. Flanged Elastic Nut M8 X 1.25
-
100>100n518330128 Riveted Module E Rs. Includes 100 to 100nRiveted Module E Rs. Includes 100 to 100n
-
100a>100b518329999 RH Member Ass'yRH Member Ass'y
-
100b505073317 Leg CushionLeg Cushion
-
100c>100d518329960 LH Member Ass'yLH Member Ass'y
-
100d505073317 Leg CushionLeg Cushion
-
100e518329844 Bottom PlateBottom Plate
-
100f390909100 Avex RivetAvex Rivet
-
100g293450268 Insert M5 X 0.8Insert M5 X 0.8
-
100h293150163 Rivet HucklokRivet Hucklok
-
100j518330100 Front MemberFront Member
-
100k207662046 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
100m233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
100n390909100 Avex RivetAvex Rivet
-
110293150147 Hemlock RivetHemlock Rivet
-
120293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
125207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
126233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
130233281414 Hex. Flanged Elastic Nut M8 X 1.25Hex. Flanged Elastic Nut M8 X 1.25
-
140207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
150233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
170293450268 Insert M5 X 0.8Insert M5 X 0.8
-
180207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
230207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
300>300a518330166 Brace Ass'y. Includes 300 to 300aBrace Ass'y. Includes 300 to 300a
-
300a512061284 Rubber MountRubber Mount
-
310210283040 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
320207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
330233281414 Hex. Flanged Elastic Nut M8 X 1.25Hex. Flanged Elastic Nut M8 X 1.25
-
400518330332 S ModuleS Module
-
410250000822 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
420207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
430233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
440207661646 Hex. Flange Screw M6 X 16Hex. Flange Screw M6 X 16
-
900518330142 Rs Left Member Viper RedRs Left Member Viper Red
-
910518330143 Rs Right Member Viper RedRs Right Member Viper Red
-
920250000887 Pan Head Torx Screw M8 X 12Pan Head Torx Screw M8 X 12
-
930293450268 Insert M5 X 0.8Insert M5 X 0.8
-
940518329499 Brace Rear MemberBrace Rear Member
-
950207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
1100518329974 Upper Column SupprtUpper Column Supprt
-
1110207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
1120233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
1300>1300a518330190 Rear Bumper Red. Includes 1300 to 1300aRear Bumper Red. Includes 1300 to 1300a
-
1330a520001612 CapCap
-
1310250000779 Torx Screw M6 X 1.0 X 18, Scotch GripTorx Screw M6 X 1.0 X 18, Scotch Grip
-
1320224061201 Flat WasherFlat Washer
-
1700518329982 Front ProtectorFront Protector
-
1710293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
2000>2000b518330284 Rh Footrest Assy. Rs Black. Includes 2000 to 2000bRh Footrest Assy. Rs Black. Includes 2000 to 2000b
-
2000a605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
2000b390909200 Avex RivetAvex Rivet
-
2100>2100b518330283 Lh Footrest Assy. Rs Black. Includes 2100 to 2100bLh Footrest Assy. Rs Black. Includes 2100 to 2100b
-
2100a605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
2100b390909200 Avex RivetAvex Rivet
-
2110250000721 Torx ScrewTorx Screw
-
2120250000767 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
2130233161414 Hex. Flanged Nut M6Hex. Flanged Nut M6
