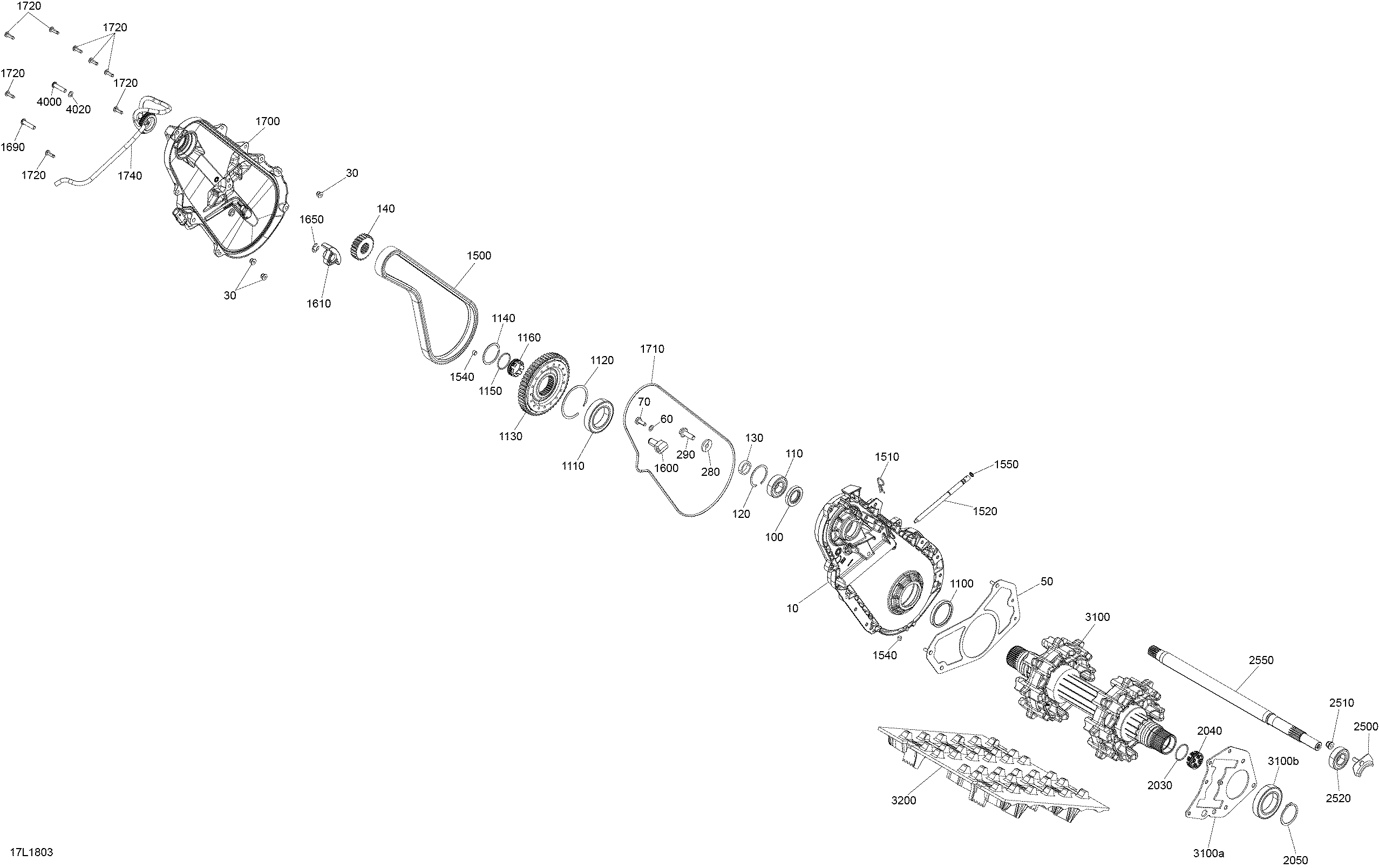

05- Drive Train Rave - 600 RS для BRP Lynx RAVE Racing - 2018
-
№АртикулНазвание
-
10504153720 Black Chain Case AssemblyBlack Chain Case Assembly
-
30233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
50504153698 Plate Ass'yPlate Ass'y
-
60504082900 WasherWasher
-
70250000740 Torx Screw M8 X 20, Scotch GripTorx Screw M8 X 20, Scotch Grip
-
100293250175 Oil SealOil Seal
-
110293350115 Ball BearingBall Bearing
-
120504152576 CirclipCirclip
-
130504152628 ShimShim
-
140504139300 Sprocket (Large), 21 TeethSprocket (Large), 21 Teeth
-
280504152784 Spring Washer M10Spring Washer M10
-
290207503046 Hex. Flanged Screw M10 X 30, Scotch GripHex. Flanged Screw M10 X 30, Scotch Grip
-
1100293200159 Oil SealOil Seal
-
1110293350059 Ball BearingBall Bearing
-
1120504152582 CirclipCirclip
-
1130504153673 Sprocket 51 TeethSprocket 51 Teeth
-
1140293370134 CirclipCirclip
-
1150293300201 O-RingO-Ring
-
1160504153696 Magnetic Cap Ass'yMagnetic Cap Ass'y
-
1500504153266 Drive Chain, 110 LinksDrive Chain, 110 Links
-
1510414575600 Hair PinHair Pin
-
1520504153760 Adjustment ScrewAdjustment Screw
-
1540250500012 Allen Drive Plug 1/8-27 PTFAllen Drive Plug 1/8-27 PTF
-
1550293300202 O-RingO-Ring
-
1600504153559 TensionerTensioner
-
1610504153312 Slider ChainSlider Chain
-
1650293370105 CirclipCirclip
-
1690250000764 Hex. Button Head Screw M8 X 35Hex. Button Head Screw M8 X 35
-
1700504153537 Chaincase Cover Ass'yChaincase Cover Ass'y
-
1710293300199 O-RingO-Ring
-
1720250000870 Torx Screw, M6 X 20Torx Screw, M6 X 20
-
1740504153535 Cap Ass'yCap Ass'y
-
2030293300201 O-RingO-Ring
-
2040504153697 Magnetic CapMagnetic Cap
-
2050504152572 CirclipCirclip
-
2500504153491 Bearing HousingBearing Housing
-
2510233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
2520293350115 Ball BearingBall Bearing
-
2550504153492 CountershaftCountershaft
-
3100>3100b504153776 Driveaxle Assy, Machined. Includes 3100 to 3100bDriveaxle Assy, Machined. Includes 3100 to 3100b
-
3100a518329492 Brake Support PlateBrake Support Plate
-
3100b293350059 Ball BearingBall Bearing
-
3200504153342 Track Ass'y 15'' X 128'' X 1.7R''Track Ass'y 15'' X 128'' X 1.7R''
-
4000250000764 Hex. Button Head Screw M8 X 35Hex. Button Head Screw M8 X 35
-
4020504082900 WasherWasher
