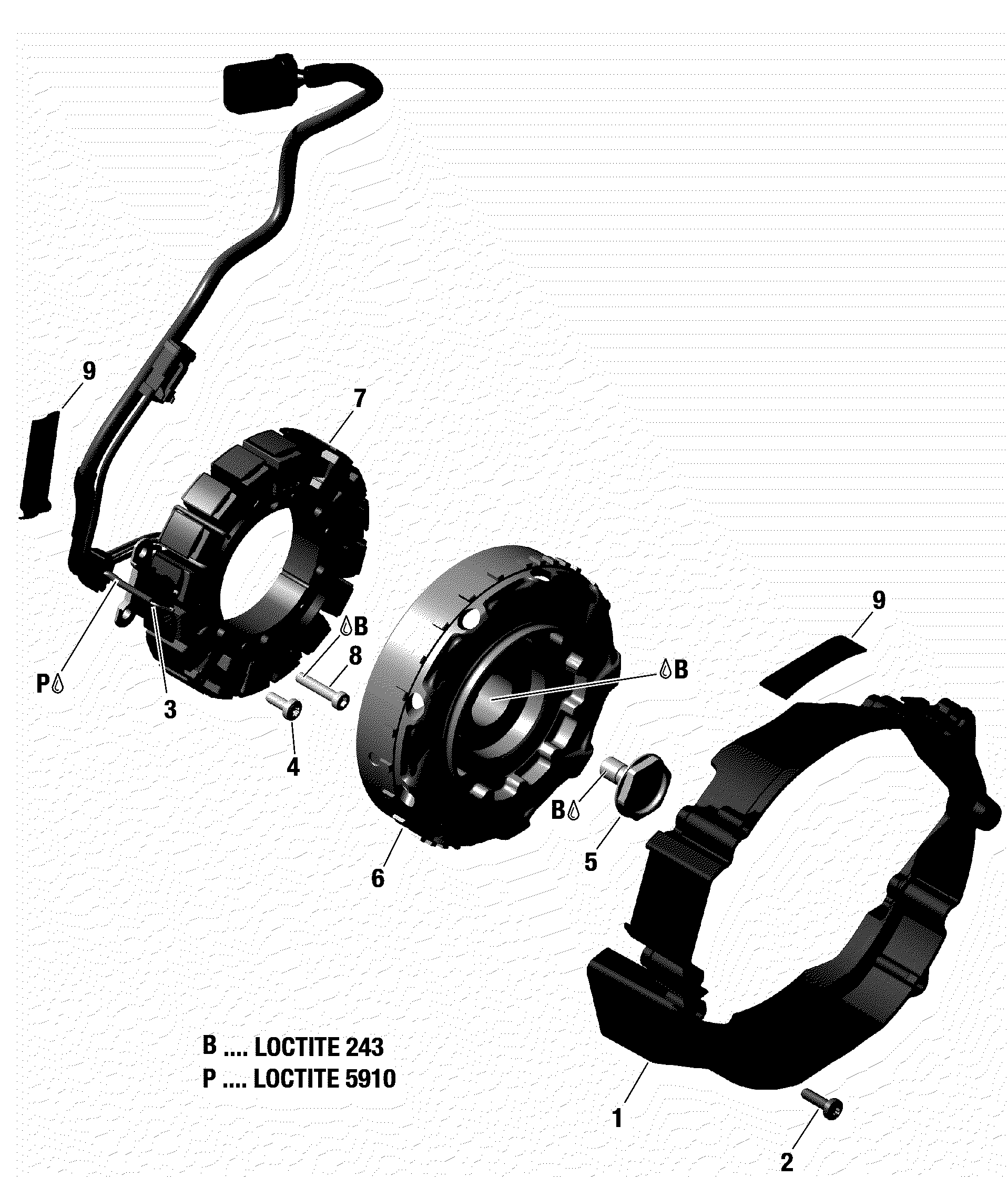

03- Magneto для BRP Lynx RAVE Racing - 2018
-
№АртикулНазвание
-
1420911850 Ignition HousingIgnition Housing
-
2420441386 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
3420966841 Pick Up Ass'yPick Up Ass'y
-
4420441386 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
5420840851 Collar Hex Screw M12 X 25Collar Hex Screw M12 X 25
-
6420864434 Magneto FlywheelMagneto Flywheel
-
7420864420 Stator Ass'y 55v/1300WStator Ass'y 55v/1300W
-
8420540001 Allen Screw M6 X 30Allen Screw M6 X 30
-
9420201360 Adhesive Pad, 1.6 mm X 20 mm X 60 mmAdhesive Pad, 1.6 mm X 20 mm X 60 mm
