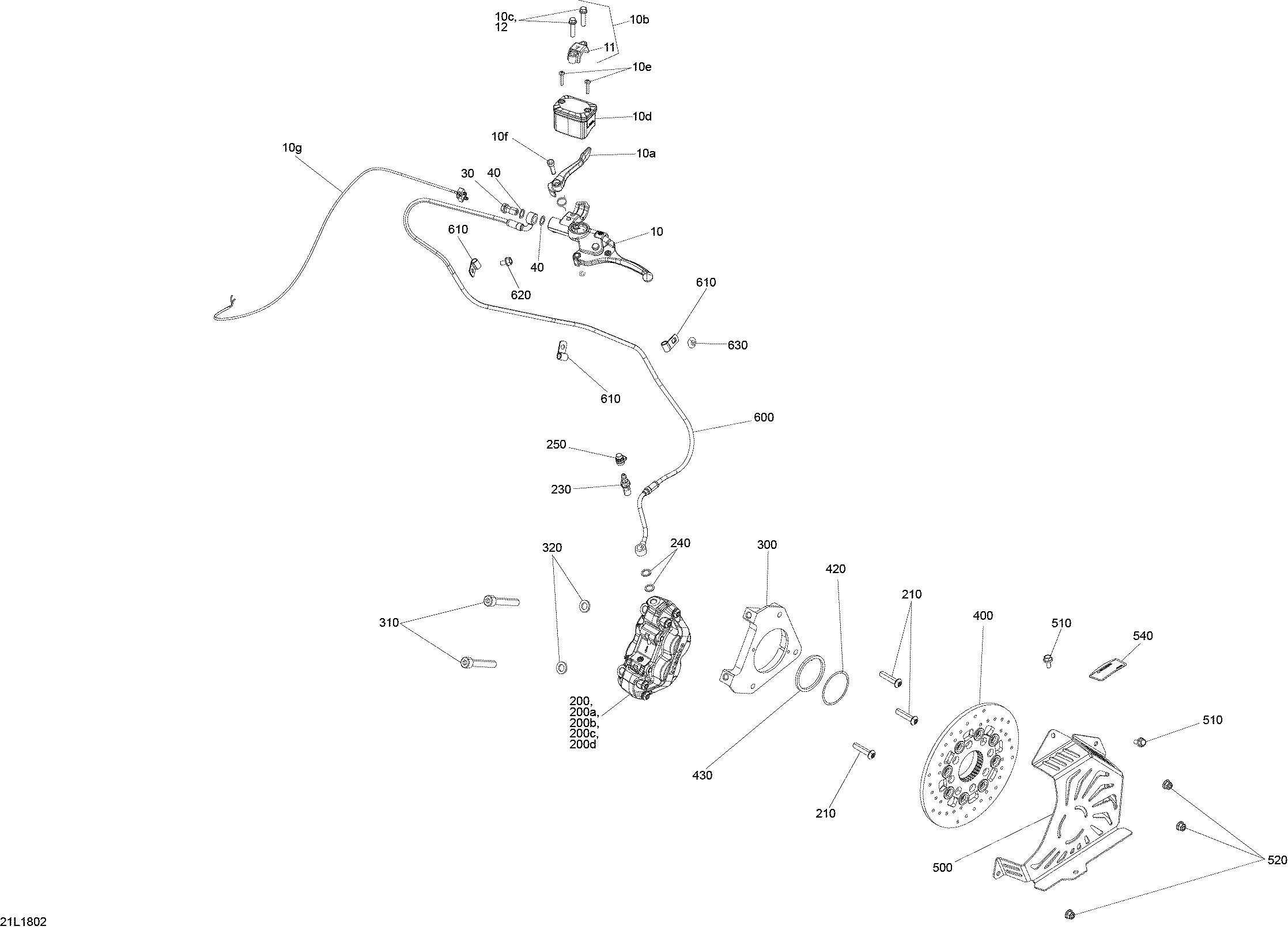

06- Brakes Rave - 600 RS для BRP Lynx RAVE Racing - 2018
-
№АртикулНазвание
-
10>10g507032614 Cylinder Master. Includes 10 to 10gCylinder Master. Includes 10 to 10g
-
10a507032476 LeverLever
-
10b>10c507032477 Clamp And Screw KitClamp And Screw Kit
-
10c250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
10d>10e507032478 Master Cylinder Reservoir Ass'yMaster Cylinder Reservoir Ass'y
-
10e415129356 Screw M4 X 20Screw M4 X 20
-
10f415030000 Pin Ass'yPin Ass'y
-
10g507032601 MicroswitchMicroswitch
-
11719000049 Clamps KitClamps Kit
-
12250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
30507032551 Banjo BoltBanjo Bolt
-
40705601628 Copper WasherCopper Washer
-
200>200d507032613 Brake Caliper Ass'y. Includes 200 to 200dBrake Caliper Ass'y. Includes 200 to 200d
-
200a507032615 Brake Pads KitBrake Pads Kit
-
200b507032616 Pin & Spring KitPin & Spring Kit
-
200c507032617 Spring PlateSpring Plate
-
200d507032618 Spring ClipsSpring Clips
-
210250000971 Screw-torx Button Head M8 X 35Screw-torx Button Head M8 X 35
-
230705601201 Banjo Bolt/ BleederBanjo Bolt/ Bleeder
-
240705601628 Copper WasherCopper Washer
-
250705601190 Bleeder Bolt CapBleeder Bolt Cap
-
300507032624 Caliper BracketCaliper Bracket
-
310244006060 Socket Screw M10 X 60Socket Screw M10 X 60
-
320503192496 WasherWasher
-
400507032635 Disc Brake AssyDisc Brake Assy
-
420293300209 O-ringO-ring
-
430507032612 SpacerSpacer
-
500507032623 Black Disk ProtectorBlack Disk Protector
-
510207661254 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
520233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
540516007652 Warning DecalWarning Decal
-
600507032609 Brake HoseBrake Hose
-
610414108400 Open ClampOpen Clamp
-
620210261040 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
630293150231 Blind Rivet 3/16Blind Rivet 3/16
