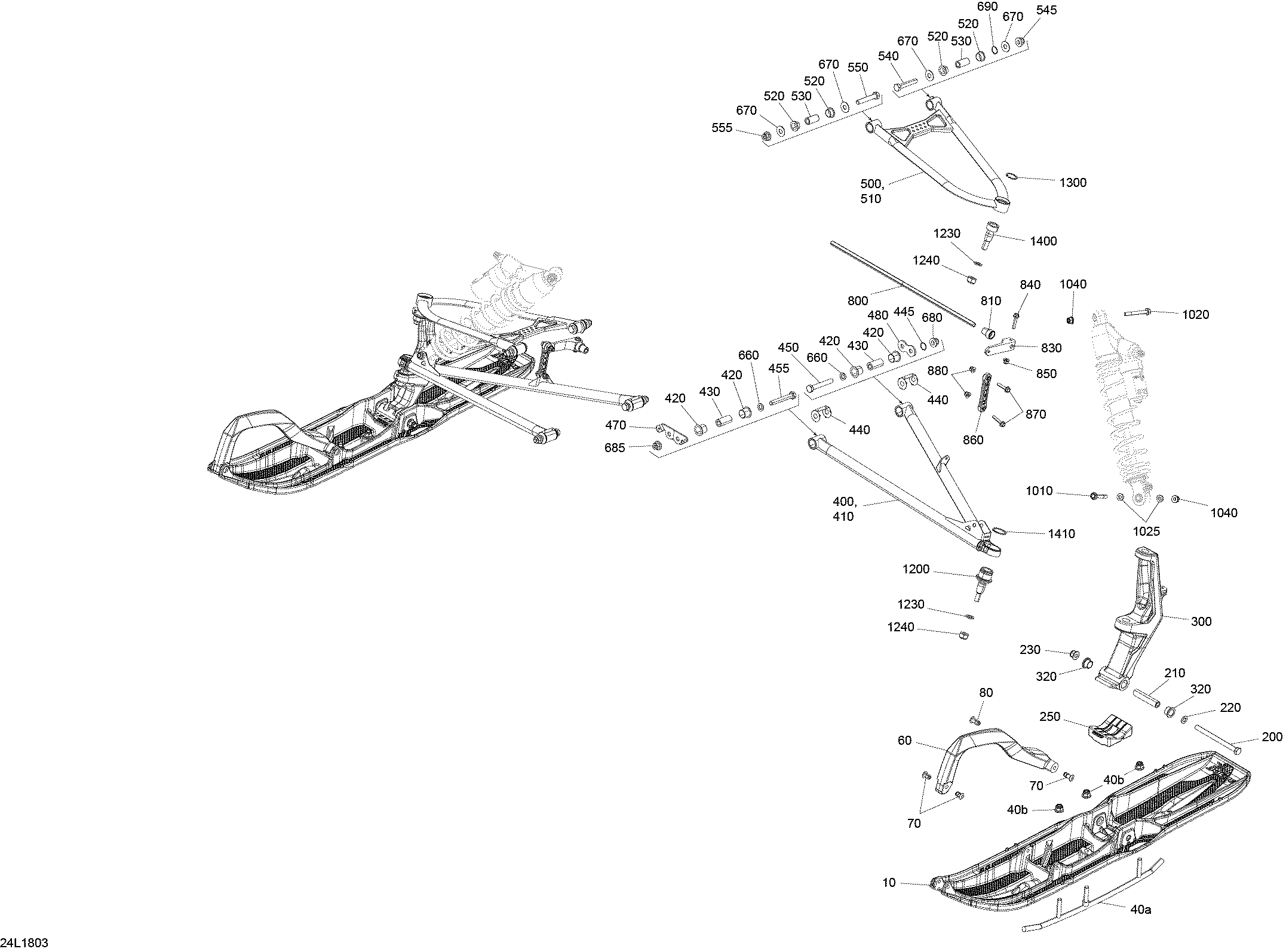

07- Front Suspension And Ski Rave Engine 600 RS для BRP Lynx RAVE Racing - 2018
-
№АртикулНазвание
-
10505074262 Ski Blade Xc BlackSki Blade Xc Black
-
40>40b860200959 Runner Kit Blade. Includes 40 to 40bRunner Kit Blade. Includes 40 to 40b
-
40a505073348 Ski Runner Blade 5 PaintedSki Runner Blade 5 Painted
-
40b233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
50233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
60505073109 HandleHandle
-
70505071812 RetainerRetainer
-
80505072133 RetainerRetainer
-
200250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
210506133300 SpacerSpacer
-
220503192496 WasherWasher
-
230233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
250505072594 Ski StopperSki Stopper
-
300505074162 Ski-leg MachinedSki-leg Machined
-
320505072690 Leg BushingLeg Bushing
-
400505074099 Arm-lower RightArm-lower Right
-
410505074098 Arm-lower LeftArm-lower Left
-
420505073330 CushionCushion
-
430505072209 BushingBushing
-
440505072634 Wear PlateWear Plate
-
445505072448 O-RingO-Ring
-
450250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
455250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
470505073723 Wear PlateWear Plate
-
480505073844 PlatePlate
-
500505074104 Arm-upperArm-upper
-
510505074105 Arm-upperArm-upper
-
520505073329 Swivel BushingSwivel Bushing
-
530505072143 BushingBushing
-
540250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
545250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
550250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
555250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
660503189564 WasherWasher
-
670505072392 WasherWasher
-
680250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
685250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
690505072448 O-RingO-Ring
-
800505073819 StabilisatorStabilisator
-
810505072064 BushingBushing
-
830505073731 Stabilisator LeverStabilisator Lever
-
840207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
850233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
860505072204 Double Ball Joint LinkDouble Ball Joint Link
-
870207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
880233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1010250000824 Hexagonal Flange Screw M8 X 58Hexagonal Flange Screw M8 X 58
-
1020250000824 Hexagonal Flange Screw M8 X 58Hexagonal Flange Screw M8 X 58
-
1025505073892 SpacerSpacer
-
1200505074133 Ball JointBall Joint
-
1230503192491 WasherWasher
-
1240232521464 Hex Elastic Nut M12Hex Elastic Nut M12
-
1300293370070 CirclipCirclip
-
1400505072257 Upper Ball JointUpper Ball Joint
-
1410293370098 Snap RingSnap Ring
