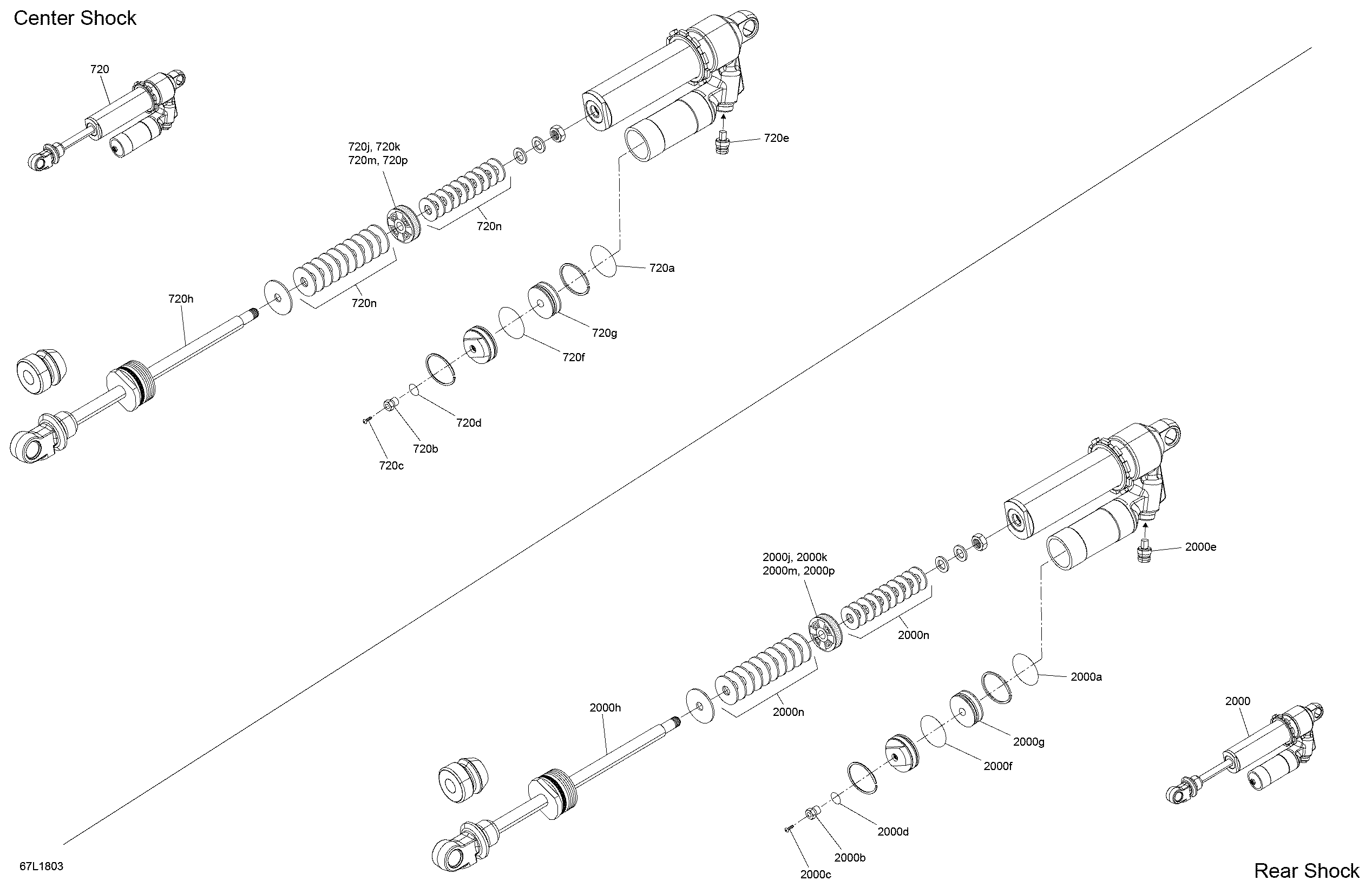

08- Rear Shocks Rave - 600 RS для BRP Lynx RAVE Racing - 2018
-
№АртикулНазвание
-
720>720xxx503193134 Shock. Includes 720 to 720xxxShock. Includes 720 to 720xxx
-
720a415093807 O-RingO-Ring
-
720b505070398 Air ValveAir Valve
-
720c505070399 ScrewScrew
-
720d505070400 O-RingO-Ring
-
720e619300015 Compression Valve Ass'yCompression Valve Ass'y
-
720f415093804 O-RingO-Ring
-
720g619300159 Piston 1.2Piston 1.2
-
720h619300160 Piston-rodPiston-rod
-
720j230039 Piston 2,0 MmPiston 2,0 Mm
-
720k230043 Piston 0 BleedPiston 0 Bleed
-
720m619300060 Leaf Valve 17x0,114Leaf Valve 17x0,114
-
720n619300069 Leaf Valve 17x0,203Leaf Valve 17x0,203
-
720p619300068 Shim 36 mm, 18 x 0,114Shim 36 mm, 18 x 0,114
-
720q619300067 Leaf Valve 18x0,152Leaf Valve 18x0,152
-
720r230029 Leaf Valve 20 X 0,114Leaf Valve 20 X 0,114
-
720s230030 Leaf Valve 20 X 0,152Leaf Valve 20 X 0,152
-
720t230031 Leaf Valve 20 X 0,203Leaf Valve 20 X 0,203
-
720u230032 Leaf Valve 20 X 0,254Leaf Valve 20 X 0,254
-
720v619300097 Leaf Valve 20 X 0,305Leaf Valve 20 X 0,305
-
720w619300133 Washer-piston, D22 X 0.114Washer-piston, D22 X 0.114
-
720x619300140 Washer-piston 22 X 0.152tWasher-piston 22 X 0.152t
-
720y619300098 Shim 36 mm, 22 x 0,203Shim 36 mm, 22 x 0,203
-
720yy230082 Leaf Valve D32 X 0.114.Leaf Valve D32 X 0.114.
-
720z619300134 Washer-piston 22 XWasher-piston 22 X
-
720aa619300144 Washer-piston 22 XWasher-piston 22 X
-
720bb619300145 Washer-piston 24 XWasher-piston 24 X
-
720dd619300147 Washer-piston 24 XWasher-piston 24 X
-
720cc619300146 Washer-piston 24 XWasher-piston 24 X
-
720ee619300095 Shim 36 mm, 24 x 0,254Shim 36 mm, 24 x 0,254
-
720ff619300148 Washer-piston 24 XWasher-piston 24 X
-
720gg619300149 Washer-piston 26 XWasher-piston 26 X
-
720hh619300141 Washer-piston 26 X 0.152tWasher-piston 26 X 0.152t
-
720jj619300150 Washer-piston 26 XWasher-piston 26 X
-
720kk619300099 Shim 36 mm, 26 x 0,254Shim 36 mm, 26 x 0,254
-
720mm619300100 Leaf Valve 26 X 0,305Leaf Valve 26 X 0,305
-
720nn619300101 Leaf Valve 28 X 0,114Leaf Valve 28 X 0,114
-
720pp619300151 Washer-piston 28 XWasher-piston 28 X
-
720qq619300102 Shim 36 mm, 28 x 0,203Shim 36 mm, 28 x 0,203
-
720rr619300103 Leaf Valve 28 X 0,254Leaf Valve 28 X 0,254
-
720ss619300152 Washer-pistonWasher-piston
-
720tt619300135 Washer-piston 30 XWasher-piston 30 X
-
720uu619300104 Leaf Valve 30 X 0,152Leaf Valve 30 X 0,152
-
720vv619300154 Washer-piston 30 XWasher-piston 30 X
-
720ww619300113 Shim 36 mm, 30 x 0,254Shim 36 mm, 30 x 0,254
-
720xx619300056 Leaf Valve 30 X 0,305Leaf Valve 30 X 0,305
-
720zz619300137 Leaf Valve 32 X 0.152Leaf Valve 32 X 0.152
-
720aaa619300138 Leaf Valve 32 X 0.203Leaf Valve 32 X 0.203
-
720bbb619300059 Leaf Valve 32x0,254Leaf Valve 32x0,254
-
720ddd230033 Leaf Valve 34 X 0,114Leaf Valve 34 X 0,114
-
720ccc619300022 Leaf Valve 32 X 0,305Leaf Valve 32 X 0,305
-
720eee230034 Leaf Valve 34 X 0,152Leaf Valve 34 X 0,152
-
720fff230035 Leaf Valve 34 X 0,203Leaf Valve 34 X 0,203
-
720ggg230036 Leaf Valve 34 X 0,254Leaf Valve 34 X 0,254
-
720hhh619300070 Leaf Valve 34 X 0,305Leaf Valve 34 X 0,305
-
720jjj230037 Leaf Valve 36 X 0,114Leaf Valve 36 X 0,114
-
720kkk619300155 Washer-piston 36 XWasher-piston 36 X
-
720mmm619300142 Washer-piston 36 X 0.203tWasher-piston 36 X 0.203t
-
720nnn503189038 Leaf Valve O36 X 0.254 (C46)Leaf Valve O36 X 0.254 (C46)
-
720ppp619300105 Leaf Valve 36 X 0,305Leaf Valve 36 X 0,305
-
720qqq230040 Leaf Valve 38 X 0,152Leaf Valve 38 X 0,152
-
720rrr230041 Leaf Valve 38 X 0,203Leaf Valve 38 X 0,203
-
720sss230042 Leaf Valve 38 X 0,254Leaf Valve 38 X 0,254
-
720ttt619300106 Leaf Valve 38 X 0,305Leaf Valve 38 X 0,305
-
720uuu619300157 Washer-piston 40 XWasher-piston 40 X
-
720vvv619300112 Leaf Valve D40 X 0.203Leaf Valve D40 X 0.203
-
720www619300136 Washer-piston 40 XWasher-piston 40 X
-
720xxx619300107 Leaf Valve 40 X 0,305Leaf Valve 40 X 0,305
-
2000>2000xxx503193136 Shock. Includes 2000 to 2000xxxShock. Includes 2000 to 2000xxx
-
2000a415093807 O-RingO-Ring
-
2000b505070398 Air ValveAir Valve
-
2000c505070399 ScrewScrew
-
2000d505070400 O-RingO-Ring
-
2000e619300015 Compression Valve Ass'yCompression Valve Ass'y
-
2000f415093804 O-RingO-Ring
-
2000g619300159 Piston 1.2Piston 1.2
-
2000h619300160 Piston-rodPiston-rod
-
2000j230039 Piston 2,0 MmPiston 2,0 Mm
-
2000k230043 Piston 0 BleedPiston 0 Bleed
-
2000m619300060 Leaf Valve 17x0,114Leaf Valve 17x0,114
-
2000n619300069 Leaf Valve 17x0,203Leaf Valve 17x0,203
-
2000p619300068 Shim 36 mm, 18 x 0,114Shim 36 mm, 18 x 0,114
-
2000q619300067 Leaf Valve 18x0,152Leaf Valve 18x0,152
-
2000r230029 Leaf Valve 20 X 0,114Leaf Valve 20 X 0,114
-
2000s230030 Leaf Valve 20 X 0,152Leaf Valve 20 X 0,152
-
2000t230031 Leaf Valve 20 X 0,203Leaf Valve 20 X 0,203
-
2000u230032 Leaf Valve 20 X 0,254Leaf Valve 20 X 0,254
-
2000v619300097 Leaf Valve 20 X 0,305Leaf Valve 20 X 0,305
-
2000w619300133 Washer-piston, D22 X 0.114Washer-piston, D22 X 0.114
-
2000x619300140 Washer-piston 22 X 0.152tWasher-piston 22 X 0.152t
-
2000y619300098 Shim 36 mm, 22 x 0,203Shim 36 mm, 22 x 0,203
-
2000z619300134 Washer-piston 22 XWasher-piston 22 X
-
2000aa619300144 Washer-piston 22 XWasher-piston 22 X
-
2000bb619300145 Washer-piston 24 XWasher-piston 24 X
-
2000cc619300146 Washer-piston 24 XWasher-piston 24 X
-
2000dd619300147 Washer-piston 24 XWasher-piston 24 X
-
2000ee619300095 Shim 36 mm, 24 x 0,254Shim 36 mm, 24 x 0,254
-
2000ff619300148 Washer-piston 24 XWasher-piston 24 X
-
2000gg619300149 Washer-piston 26 XWasher-piston 26 X
-
2000hh619300141 Washer-piston 26 X 0.152tWasher-piston 26 X 0.152t
-
2000jj619300150 Washer-piston 26 XWasher-piston 26 X
-
2000kk619300099 Shim 36 mm, 26 x 0,254Shim 36 mm, 26 x 0,254
-
2000mm619300100 Leaf Valve 26 X 0,305Leaf Valve 26 X 0,305
-
2000nn619300101 Leaf Valve 28 X 0,114Leaf Valve 28 X 0,114
-
2000nnn503189038 Leaf Valve O36 X 0.254 (C46)Leaf Valve O36 X 0.254 (C46)
-
2000pp619300151 Washer-piston 28 XWasher-piston 28 X
-
2000qq619300102 Shim 36 mm, 28 x 0,203Shim 36 mm, 28 x 0,203
-
2000rr619300103 Leaf Valve 28 X 0,254Leaf Valve 28 X 0,254
-
2000ss619300152 Washer-pistonWasher-piston
-
2000tt619300135 Washer-piston 30 XWasher-piston 30 X
-
2000uu619300104 Leaf Valve 30 X 0,152Leaf Valve 30 X 0,152
-
2000vv619300154 Washer-piston 30 XWasher-piston 30 X
-
2000ww619300113 Shim 36 mm, 30 x 0,254Shim 36 mm, 30 x 0,254
-
2000xx619300056 Leaf Valve 30 X 0,305Leaf Valve 30 X 0,305
-
2000yy230082 Leaf Valve D32 X 0.114.Leaf Valve D32 X 0.114.
-
2000zz619300137 Leaf Valve 32 X 0.152Leaf Valve 32 X 0.152
-
2000aaa619300138 Leaf Valve 32 X 0.203Leaf Valve 32 X 0.203
-
2000bbb619300059 Leaf Valve 32x0,254Leaf Valve 32x0,254
-
2000ccc619300022 Leaf Valve 32 X 0,305Leaf Valve 32 X 0,305
-
2000ddd230033 Leaf Valve 34 X 0,114Leaf Valve 34 X 0,114
-
2000eee230034 Leaf Valve 34 X 0,152Leaf Valve 34 X 0,152
-
2000fff230035 Leaf Valve 34 X 0,203Leaf Valve 34 X 0,203
-
2000ggg230036 Leaf Valve 34 X 0,254Leaf Valve 34 X 0,254
-
2000hhh619300070 Leaf Valve 34 X 0,305Leaf Valve 34 X 0,305
-
2000jjj230037 Leaf Valve 36 X 0,114Leaf Valve 36 X 0,114
-
2000kkk619300155 Washer-piston 36 XWasher-piston 36 X
-
2000mmm619300142 Washer-piston 36 X 0.203tWasher-piston 36 X 0.203t
-
2000ppp619300105 Leaf Valve 36 X 0,305Leaf Valve 36 X 0,305
-
2000qqq230040 Leaf Valve 38 X 0,152Leaf Valve 38 X 0,152
-
2000rrr230041 Leaf Valve 38 X 0,203Leaf Valve 38 X 0,203
-
2000sss230042 Leaf Valve 38 X 0,254Leaf Valve 38 X 0,254
-
2000ttt619300106 Leaf Valve 38 X 0,305Leaf Valve 38 X 0,305
-
2000uuu619300157 Washer-piston 40 XWasher-piston 40 X
-
2000vvv619300112 Leaf Valve D40 X 0.203Leaf Valve D40 X 0.203
-
2000www619300136 Washer-piston 40 XWasher-piston 40 X
-
2000xxx619300107 Leaf Valve 40 X 0,305Leaf Valve 40 X 0,305
