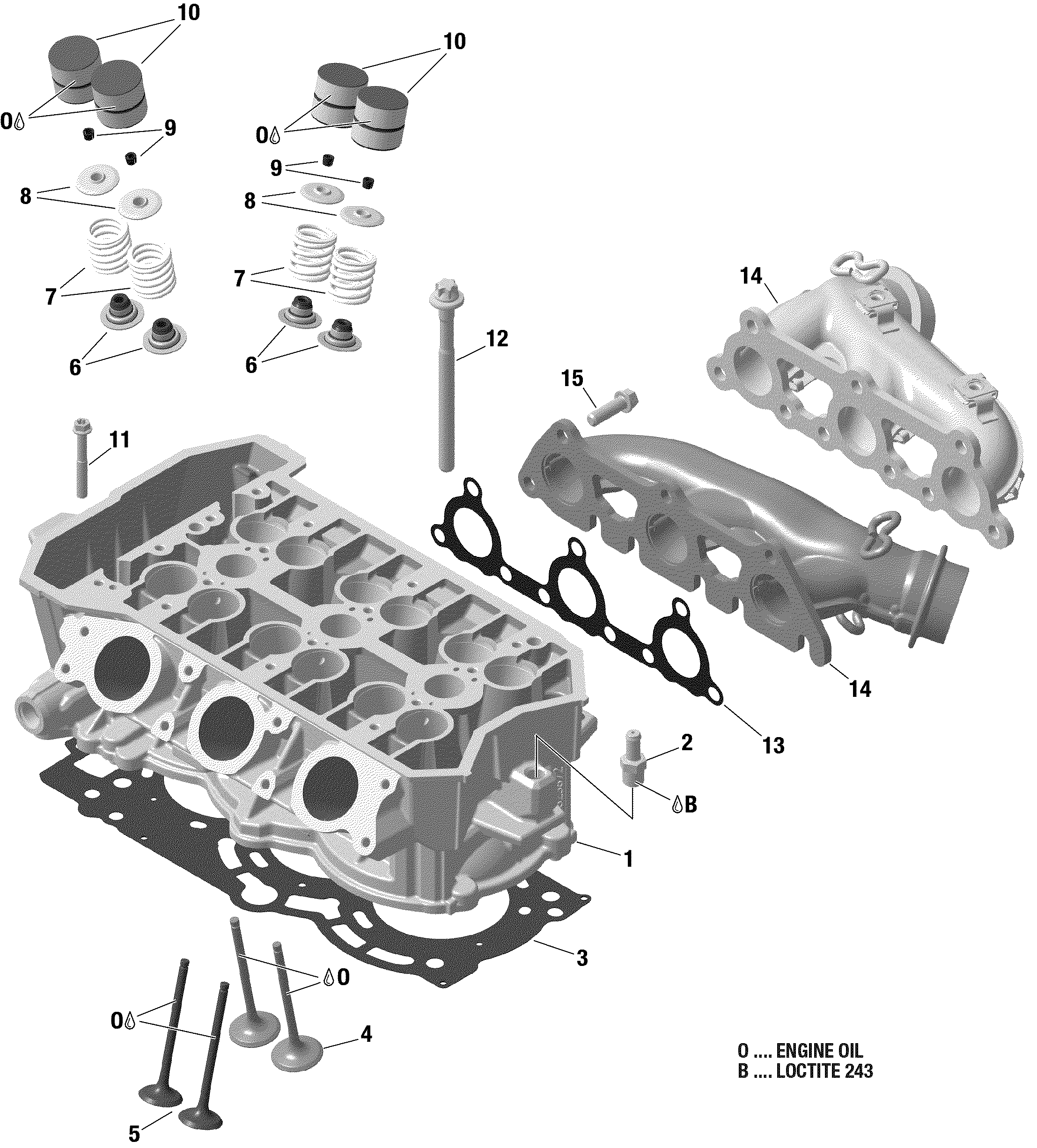

01- Cylinder Head And Exhaust Manifold 900 ACE для BRP Lynx 003 - Commander 900 ACE - 2019
-
№АртикулНазвание
-
1420623878 Cylinder Head Ass'yCylinder Head Ass'y
-
2420441420 Hose NippleHose Nipple
-
3420431813 Cylinder Head GasketCylinder Head Gasket
-
4420855131 Intake Valve 29MMIntake Valve 29MM
-
5420855141 Exhaust Valve 25MMExhaust Valve 25MM
-
6420431671 Valve Stem SealValve Stem Seal
-
7420939540 Valve SpringValve Spring
-
8420855150 Valve Spring RetainerValve Spring Retainer
-
9420254630 Cotter ValveCotter Valve
-
10420855164 Valve Lifter Bucket BlocValve Lifter Bucket Bloc
-
11420440324 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
12420940945 Flanged Torx Screw M9 X 113Flanged Torx Screw M9 X 113
-
13420431850 GasketGasket
-
14420673495 Exhaust ManifoldExhaust Manifold
-
15420440372 Flanged Torx Screw M8 X 25Flanged Torx Screw M8 X 25
