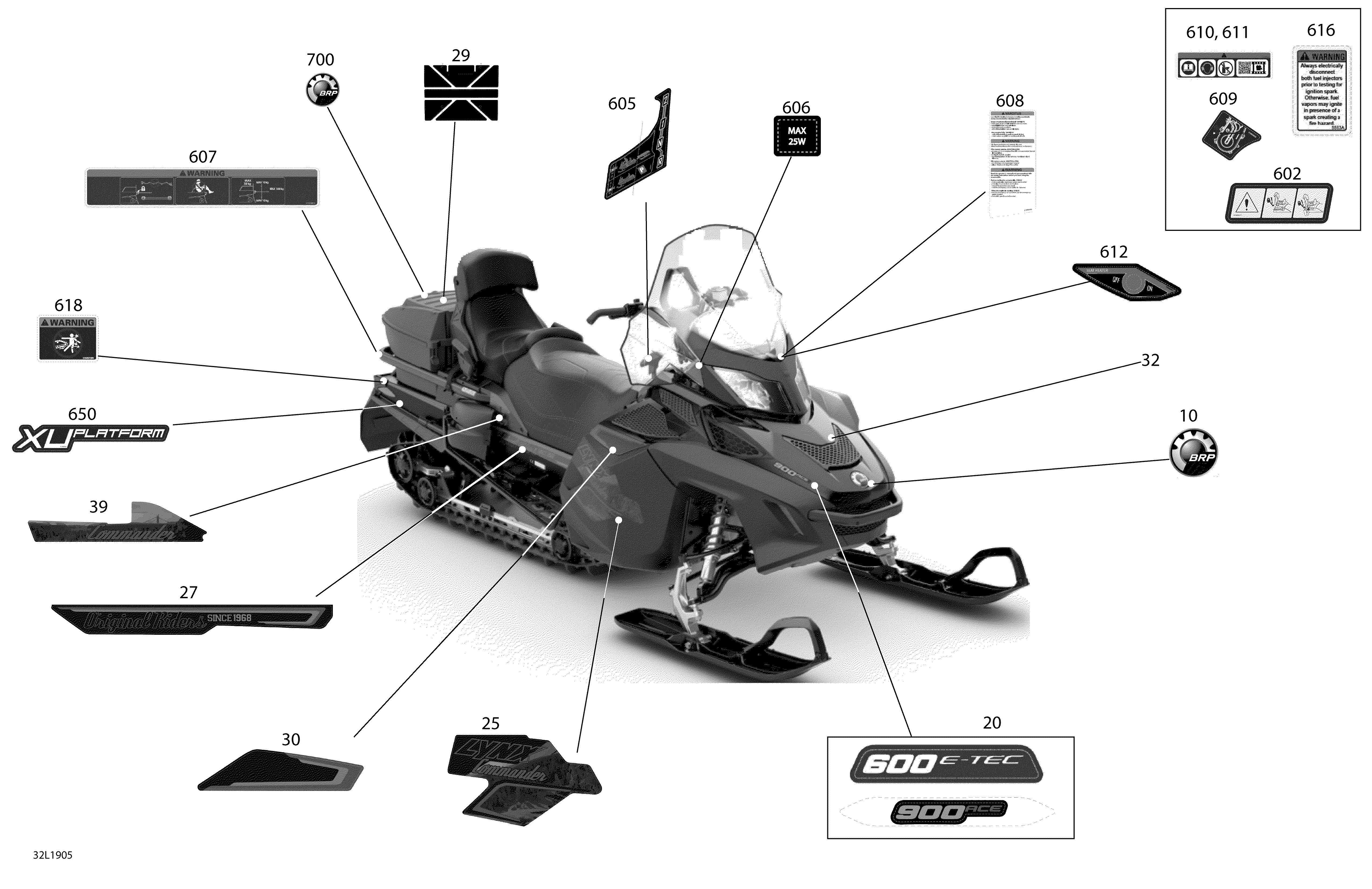

09- Decals - LTD для BRP Lynx 003 - Commander 900 ACE - 2019
-
№АртикулНазвание
-
10516008739 BRP Logo, 68mmBRP Logo, 68mm
-
20516006454 Hood Decal ''900 Ace''Hood Decal ''900 Ace''
-
25516008164 Side Panel Decal ''Lynx Commander Ltd''Side Panel Decal ''Lynx Commander Ltd''
-
27516008173 Frame Decal ''Original Riders Since 1968''Frame Decal ''Original Riders Since 1968''
-
29516005120 Tunnel DecalTunnel Decal
-
30516008170 Acces Panel DecalAcces Panel Decal
-
32516008771 Hood DecalHood Decal
-
39516008253 Storage Box Decal CommanderStorage Box Decal Commander
-
602516005111 Instruction Decal, Back Seat LockingInstruction Decal, Back Seat Locking
-
605516004294 Instruction Label, TransmissionInstruction Label, Transmission
-
606516003918 Power Outlet Decal (25W)Power Outlet Decal (25W)
-
607516008675 Warning LabelWarning Label
-
608516006403 Instruction/Warning Decal, FI/SWE/ENInstruction/Warning Decal, FI/SWE/EN
-
609516003925 Checking Label, TransmissionChecking Label, Transmission
-
610516009650 Decal Track TensionDecal Track Tension
-
611516009225 Warning Decal EuropeWarning Decal Europe
-
612516005672 Instruction Decal Seat HeaterInstruction Decal Seat Heater
-
618516007584 Warning DecalWarning Decal
-
620516008760 Rotax Power DecalRotax Power Decal
-
650516005954 Tunnel Decal '' XU Platform ''Tunnel Decal '' XU Platform ''
-
700516008738 BRP Logo, 48mmBRP Logo, 48mm
