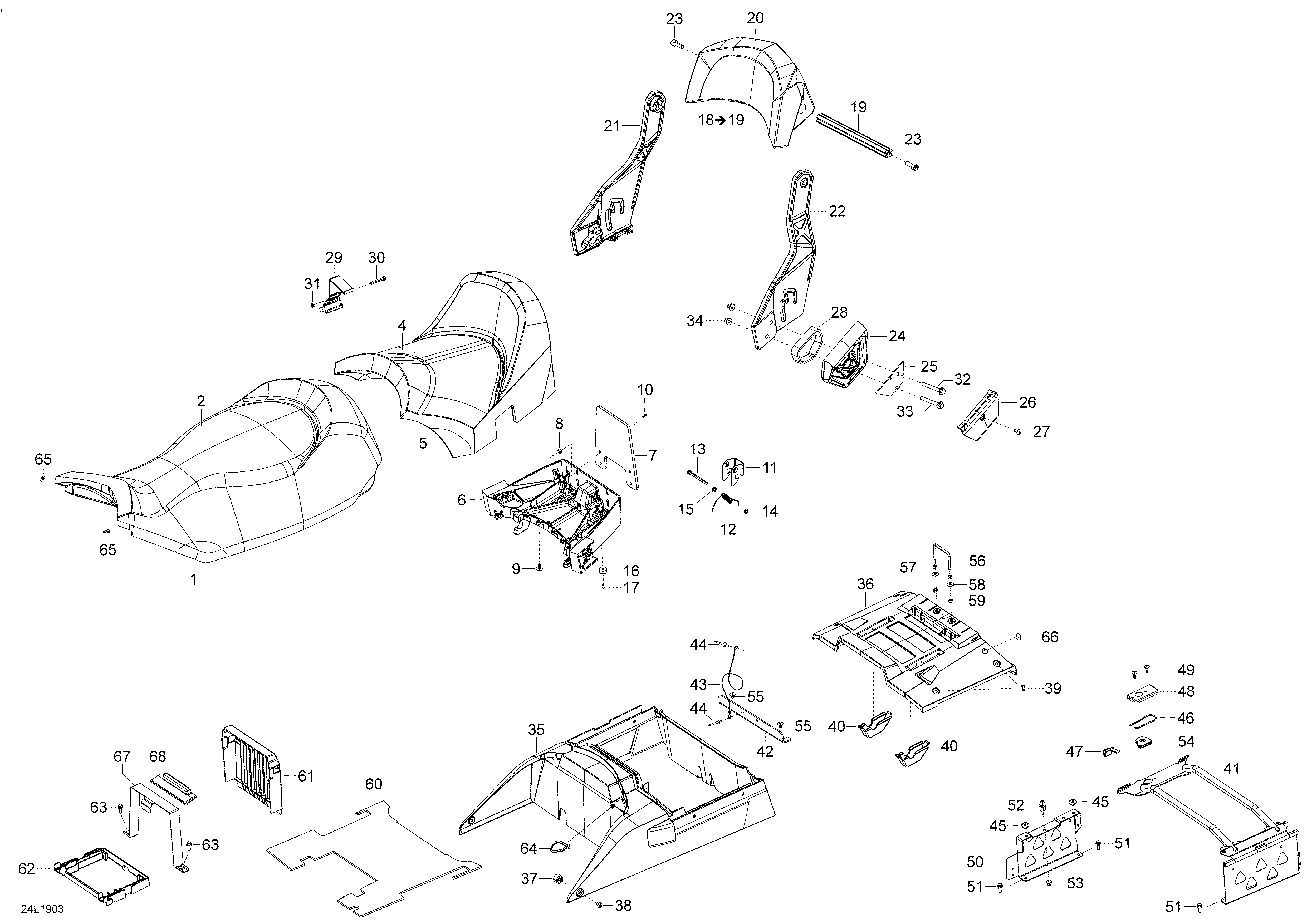

09- Seat - LTD для BRP Lynx 003 - Commander 900 ACE - 2019
-
№АртикулНазвание
-
1510006315 Front Seat FoamFront Seat Foam
-
2510006371 Front CoverFront Cover
-
3515178222 Heated FilmHeated Film
-
4510006395 Rear Seat Cover. Package LTDRear Seat Cover. Package LTD
-
5510006094 Rear Seat Foam. Package LTDRear Seat Foam. Package LTD
-
6510004816 Seat Base. Package LTDSeat Base. Package LTD
-
7510005330 Backrest Plate. Package LTDBackrest Plate. Package LTD
-
8234062410 Flat Washer 6 mm. Package LTDFlat Washer 6 mm. Package LTD
-
9414644300 Dart. Package LTDDart. Package LTD
-
10293150067 Rivet. Package LTDRivet. Package LTD
-
11708000144 Latch, Black. Package LTDLatch, Black. Package LTD
-
12708000369 Spring. Package LTDSpring. Package LTD
-
13207068044 Screw Hex. M6 X 80. Package LTDScrew Hex. M6 X 80. Package LTD
-
14732610072 Push Nut. Package LTDPush Nut. Package LTD
-
15234061410 Flat Washer 6 mm. Package LTDFlat Washer 6 mm. Package LTD
-
16510006005 Stopper Rubber. Package LTDStopper Rubber. Package LTD
-
17293150015 Pop Rivet 1/8”. Package LTDPop Rivet 1/8”. Package LTD
-
19510006205 Backrest Foam. Package LTDBackrest Foam. Package LTD
-
20510006398 Backrest Cover. Package LTDBackrest Cover. Package LTD
-
21510005420 RH Arm. Package LTDRH Arm. Package LTD
-
22510005419 LH Arm. Package LTDLH Arm. Package LTD
-
23250000553 Forming Screw M10 x 25. Package LTDForming Screw M10 x 25. Package LTD
-
24510005409 Handle. Package LTDHandle. Package LTD
-
25510005936 Support Plate. Package LTDSupport Plate. Package LTD
-
26510005444 Handle Cover. Package LTDHandle Cover. Package LTD
-
27250000676 Forming Screw M5 x 16. Package LTDForming Screw M5 x 16. Package LTD
-
28510005613 Adapter. Package LTDAdapter. Package LTD
-
29510005139 Security Lock. Package LTDSecurity Lock. Package LTD
-
30205065044 Socket Head Screw M6 X 50. Package LTDSocket Head Screw M6 X 50. Package LTD
-
31232561414 Elastic Stop Nut M6. Package LTDElastic Stop Nut M6. Package LTD
-
32207689044 Hex. Flanged Scew M8 X 90. Package LTDHex. Flanged Scew M8 X 90. Package LTD
-
33207688544 Hex. Flanged Scew. Package LTDHex. Flanged Scew. Package LTD
-
34233281414 Hex. Flanged Elastic Nut M8. Package LTDHex. Flanged Elastic Nut M8. Package LTD
-
35510006243 Storage BoxStorage Box
-
36510006244 Storage Box CoverStorage Box Cover
-
37510005147 BushingBushing
-
38250000675 Torx Truss Screw M6 x 12Torx Truss Screw M6 x 12
-
39293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
40510004999 CoverCover
-
41510005714 Lock tubeLock tube
-
42510005156 Cable Support PlateCable Support Plate
-
43293750070 Seat Retainer CableSeat Retainer Cable
-
44293150163 Rivet HucklokRivet Hucklok
-
45605452114 PlugPlug
-
46269700017 Latch SpringLatch Spring
-
47510005072 PullerPuller
-
48510005698 Lock Pin CoverLock Pin Cover
-
49250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
50510005845 Locking PlateLocking Plate
-
51207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
52605452035 Lock PinLock Pin
-
53233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
54510005044 Lock Pin GuideLock Pin Guide
-
55250000675 Torx Truss Screw M6 x 12Torx Truss Screw M6 x 12
-
56510004876 Fastener PinFastener Pin
-
57250000135 Hex. Nut M6Hex. Nut M6
-
5820117 WasherWasher
-
59232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
60510005043 FoamFoam
-
61510005079 Battery CoverBattery Cover
-
62515176804 Battery SupportBattery Support
-
63207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
64605627000 Tie-RapTie-Rap
-
65250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
66572051500 CapCap
-
67510005143 Battery StrapBattery Strap
-
68510005146 Strap CoverStrap Cover
