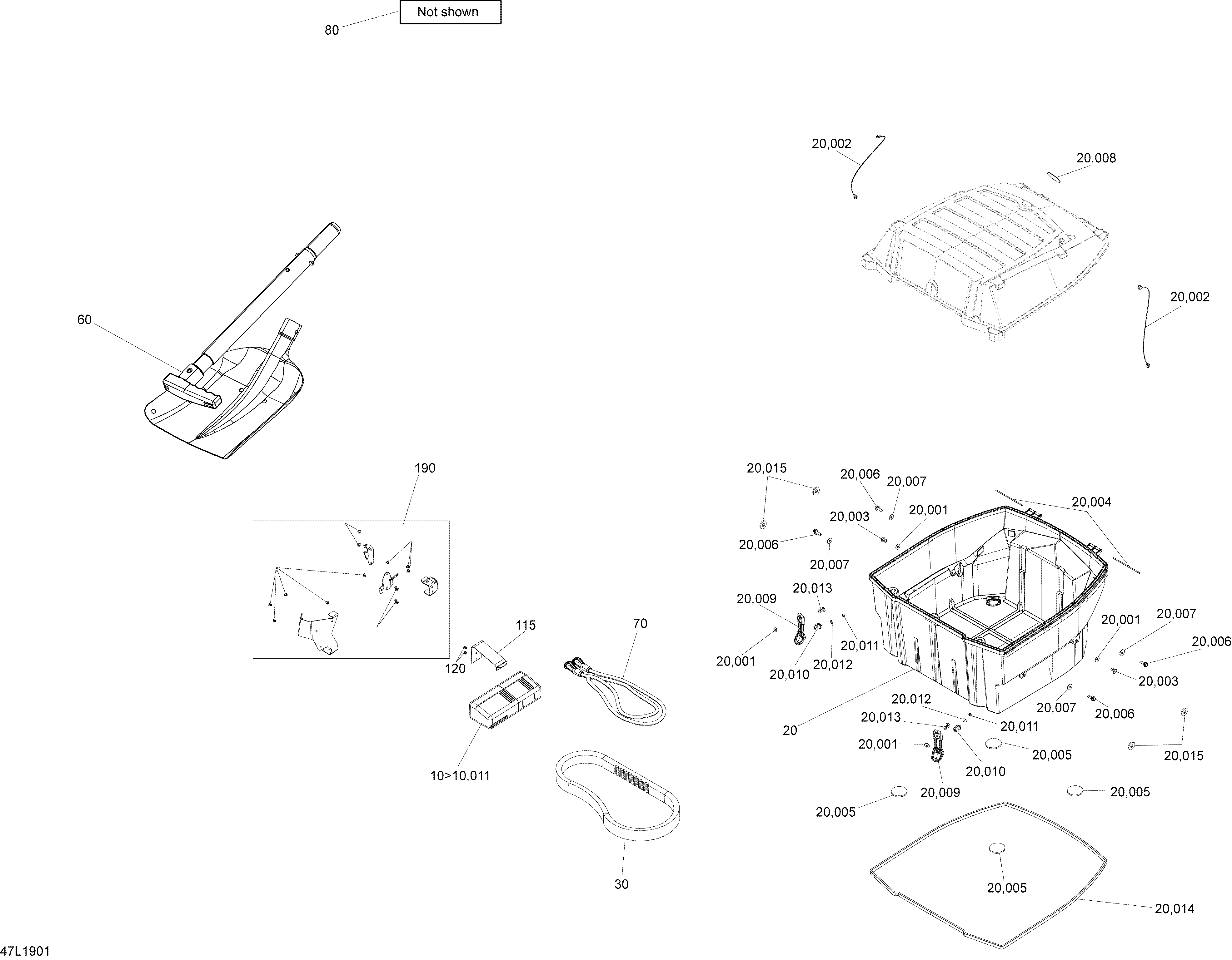

09- Options - Commander - 900 ACE - LTD для BRP Lynx 003 - Commander 900 ACE - 2019
-
№АртикулНазвание
-
10520900042 Tool Box Ass'y. Includes 10 to 10kTool Box Ass'y. Includes 10 to 10k
-
10a710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
10b710000743 Little Fuse, 7.5 AmperesLittle Fuse, 7.5 Amperes
-
10c710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
10d710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
10e710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
10f710000747 Little Fuse, 30 AmperesLittle Fuse, 30 Amperes
-
10g515176274 Halogen Bulb, 60/55 W, 12 V ( H4 )Halogen Bulb, 60/55 W, 12 V ( H4 )
-
10h520900035 MultitoolMultitool
-
10j572036310 Box CoverBox Cover
-
10k520900003 PadPad
-
20619560023 Cargo Box Ass'y. Includes 20 to 20rCargo Box Ass'y. Includes 20 to 20r
-
20a250200025 Washer M5Washer M5
-
20b293750070 Seat Retainer CableSeat Retainer Cable
-
20c36036 RivetRivet
-
20d511000702 PinPin
-
20e510005273 FoamFoam
-
20f207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
20g234062410 Flat Washer 6 mmFlat Washer 6 mm
-
20h516008738 Logo BRP, 48mmLogo BRP, 48mm
-
20j517304572 Latch-PanelLatch-Panel
-
20k605449087 Counter RollerCounter Roller
-
20m232541484 Elastic Stop Nut M4Elastic Stop Nut M4
-
20n20037 WasherWasher
-
20p36037 Black RivetBlack Rivet
-
20q293250219 SealSeal
-
20r510005844 Rubber ShimmRubber Shimm
-
30417300383 Drive BeltDrive Belt
-
60520001945 Shovel & SawShovel & Saw
-
7021156 RopeRope
-
80549011353 Protection Plate 290x320Protection Plate 290x320
-
1155346728 Tool Kit RackTool Kit Rack
-
12036108 RivetRivet
-
190520001944 Shovel Holder Ass'yShovel Holder Ass'y
