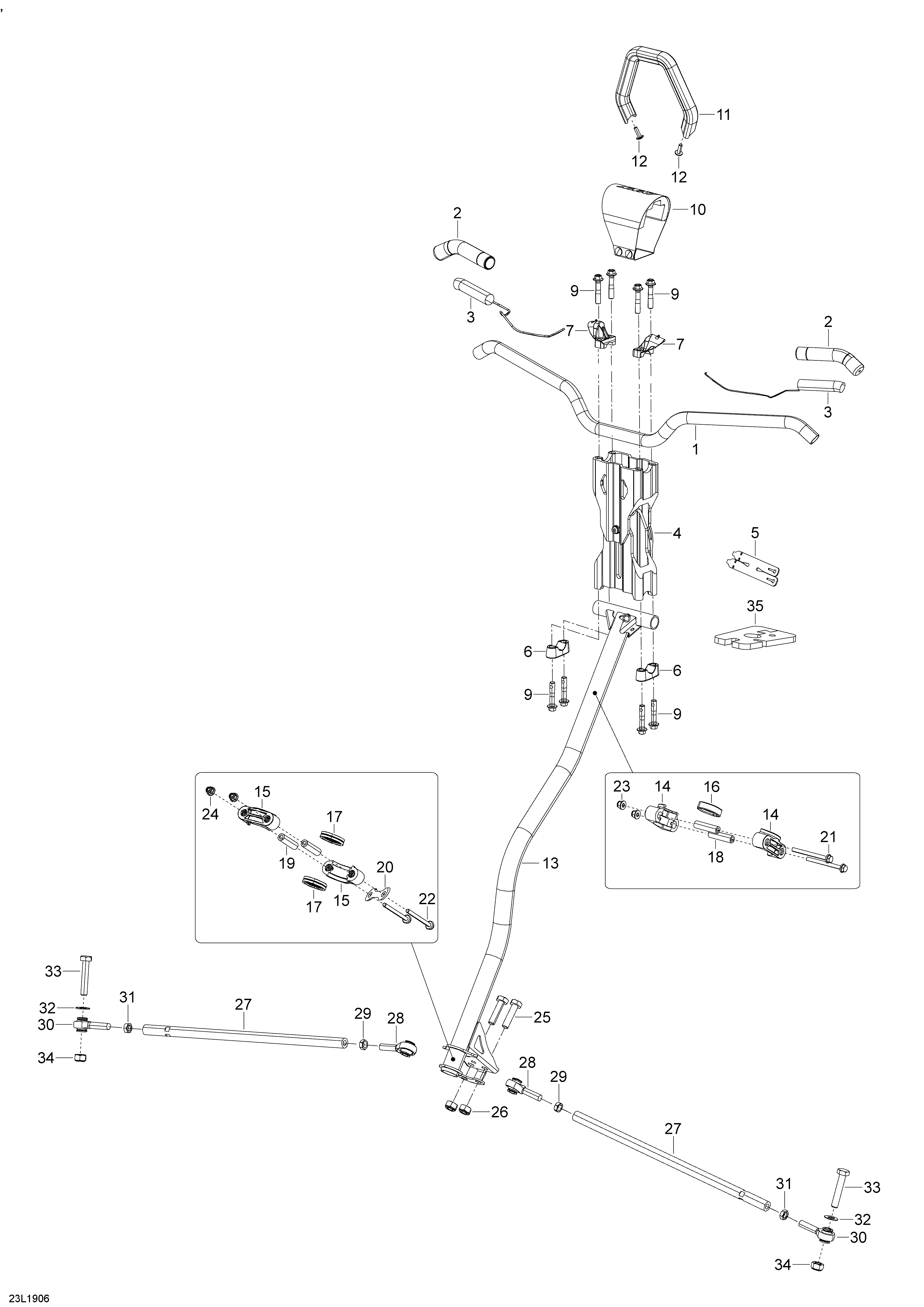

07- Steering - Commander для BRP Lynx 003 - Commander 900 ACE - 2019
-
№АртикулНазвание
-
1506152762 Handle Bar. Except Package GTHandle Bar. Except Package GT
-
1506153018 Orange, Handle Bar. Package GTOrange, Handle Bar. Package GT
-
2506152483 GripGrip
-
3506152428 Heated Film, 25WHeated Film, 25W
-
4506152616 Black Handlebar Extension (130mm). Except Package GTBlack Handlebar Extension (130mm). Except Package GT
-
4860201208 Adjustable Riser 130/205. Package GT. Includes 400 to 400gAdjustable Riser 130/205. Package GT. Includes 400 to 400g
-
4a506152646 Lever. Package GTLever. Package GT
-
4b506152647 Lever Pin. Package GTLever Pin. Package GT
-
4c506153045 Compression Bloc. Package GTCompression Bloc. Package GT
-
4d234061600 Flat Washer M6, Stainless. Package GTFlat Washer M6, Stainless. Package GT
-
4e234161601 Lock Washer Helical M6. Package GTLock Washer Helical M6. Package GT
-
4f205566060 Socket Head Screw. Package GTSocket Head Screw. Package GT
-
4g732610072 Push Nut. Package GTPush Nut. Package GT
-
5293850118 Rubber Strap Double 80/90. Package GTRubber Strap Double 80/90. Package GT
-
6506152751 Steering SupportSteering Support
-
7506152750 Steering Support. Package GTSteering Support. Package GT
-
7506152943 RH Support. Except Package GTRH Support. Except Package GT
-
7506152942 LH Support. Except Package GTLH Support. Except Package GT
-
9250000285 Hex. Flanged Screw M8 x 40Hex. Flanged Screw M8 x 40
-
10506152553 Steering Pad. Package GTSteering Pad. Package GT
-
10506152649 Steering Pad. Except Package GTSteering Pad. Except Package GT
-
11506152460 Moulding Strap. Except Package GTMoulding Strap. Except Package GT
-
12250000779 Torx Screw M6 X 1.0 X 18, Scotch Grip. Except Package GTTorx Screw M6 X 1.0 X 18, Scotch Grip. Except Package GT
-
13506152964 Steering ColumnSteering Column
-
14506152508 Upper Half-HousingUpper Half-Housing
-
15506152217 Lower Half-HousingLower Half-Housing
-
16506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
17506152518 Lower Vibration RingLower Vibration Ring
-
18506152297 Housing BushingHousing Bushing
-
19506152297 Housing BushingHousing Bushing
-
21207667086 Hex. Flanged Screw M6 x 1.0 x 70Hex. Flanged Screw M6 x 1.0 x 70
-
22207667086 Hex. Flanged Screw M6 x 1.0 x 70Hex. Flanged Screw M6 x 1.0 x 70
-
23233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
24233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
24a506152163 PlatePlate
-
25207004044 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
26232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
27506152498 Tie-RodTie-Rod
-
28506152081 LH Thread Ball JointLH Thread Ball Joint
-
29250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
30506152684 RH Thread Ball JointRH Thread Ball Joint
-
31732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
32506152582 WasherWasher
-
34233201464 Hex. Elast. Flanged Nut M10 x 1.5Hex. Elast. Flanged Nut M10 x 1.5
-
35506152404 CushionCushion
