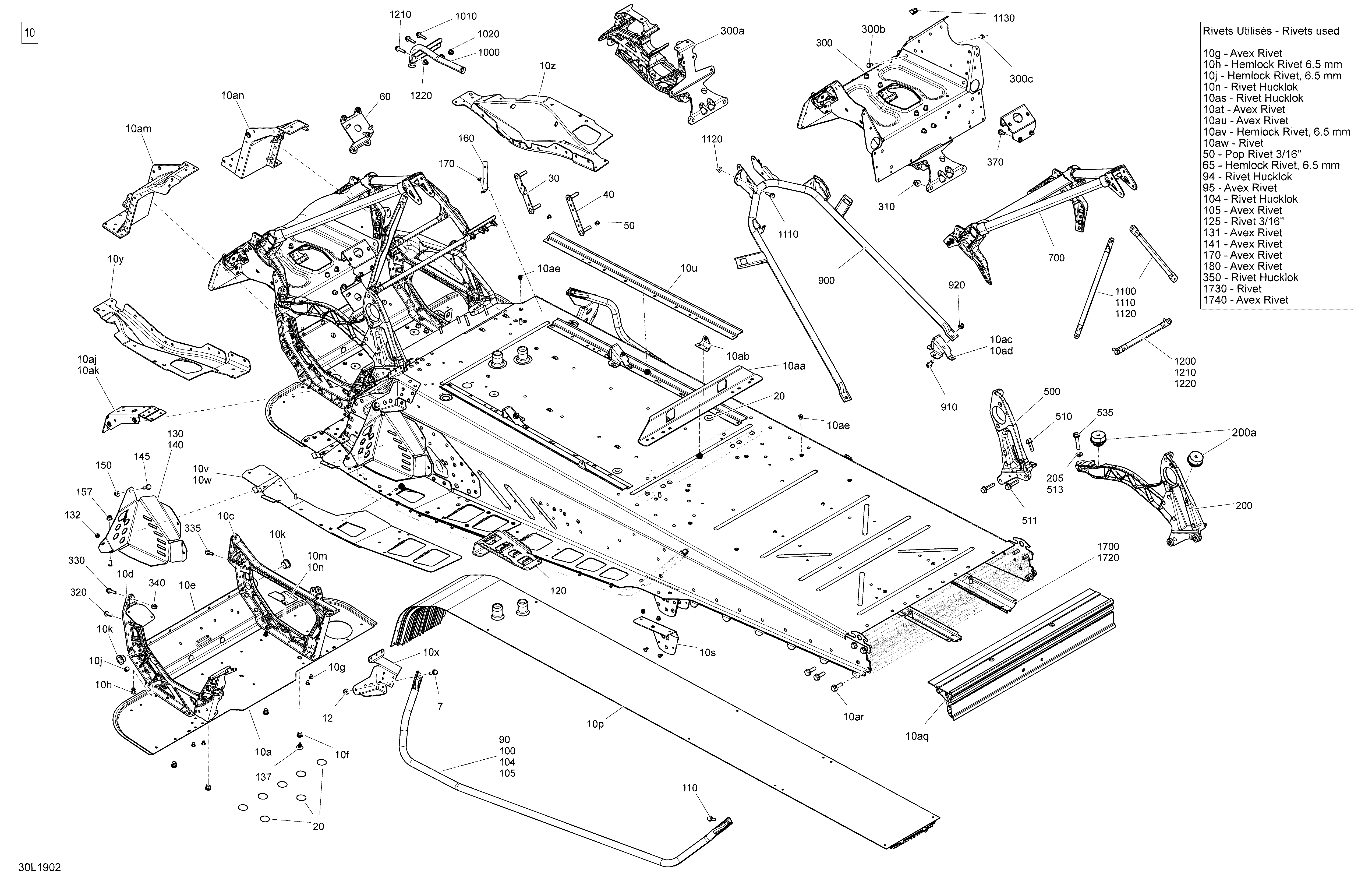

09- Frame - 900 ACE - GT для BRP Lynx 003 - Commander 900 ACE - 2019
-
№АртикулНазвание
-
10518329584 Black, Frame. Comfort Kit. Includes 10 to 10awBlack, Frame. Comfort Kit. Includes 10 to 10aw
-
10518329681 Black, Frame. Except Comfort Kit. Includes 10 to 10awBlack, Frame. Except Comfort Kit. Includes 10 to 10aw
-
10a518329825 Module E. Includes 10a to 10nModule E. Includes 10a to 10n
-
10c518326328 RH Side MemberRH Side Member
-
10d518326330 LH Side MemberLH Side Member
-
10e518326198 Front MemberFront Member
-
10f605636002 Clinch Nut Hexsert M8Clinch Nut Hexsert M8
-
10g390909100 Avex RivetAvex Rivet
-
10h293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
10j293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10k505072690 Leg BushingLeg Bushing
-
10m518327983 Muffler SupportMuffler Support
-
10n293150163 Rivet HucklokRivet Hucklok
-
10p509000976 Tunnel RadiatorTunnel Radiator
-
10q205061244 Socket ScrewSocket Screw
-
10s518329083 Rear Arm BracketRear Arm Bracket
-
10u518326107 Fastening railFastening rail
-
10v518328332 LH FootrestLH Footrest
-
10w518328333 RH FootrestRH Footrest
-
10x605355235 Fastening BracketFastening Bracket
-
10y518328016 LH Drive Axle CoverLH Drive Axle Cover
-
10z518328017 RH Drive Axle CoverRH Drive Axle Cover
-
10aa518325986 Battery support plateBattery support plate
-
10ab518329164 Seat Box BracketSeat Box Bracket
-
10ac518329109 LH Support Tube BracketLH Support Tube Bracket
-
10ad518329110 RH Support Tube BracketRH Support Tube Bracket
-
10ae605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
10aj518326430 Clinch Nut plateClinch Nut plate
-
10ak250100065 Clinching Nut Hexert M8Clinching Nut Hexert M8
-
10am518325524 LH Frame CornerLH Frame Corner
-
10an518328024 RH Frame CornerRH Frame Corner
-
10aq518328748 Rear ProfileRear Profile
-
10ar207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
10as293150163 Rivet HucklokRivet Hucklok
-
10at390909100 Avex RivetAvex Rivet
-
10au390909200 Avex RivetAvex Rivet
-
10av293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10aw293150183 RivetRivet
-
20518325560 Adhesive PatchAdhesive Patch
-
30518326123 Gearbox Front PlateGearbox Front Plate
-
40518326124 Gearbox Rear PlateGearbox Rear Plate
-
50390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
60518326178 Engine SupportEngine Support
-
65293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
90518326963 Footboard Support Tube, LHFootboard Support Tube, LH
-
94293150163 Rivet HucklokRivet Hucklok
-
95390909100 Avex RivetAvex Rivet
-
100518326964 Footboard Support Tube, RHFootboard Support Tube, RH
-
104293150163 Rivet HucklokRivet Hucklok
-
105390909100 Avex RivetAvex Rivet
-
110207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
120520001208 Black Rear FootrestBlack Rear Footrest
-
125293150102 Rivet 3/16''Rivet 3/16''
-
130518327374 Black LH Toe HookBlack LH Toe Hook
-
131390909200 Avex RivetAvex Rivet
-
132605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
137414644300 DartDart
-
140518327376 Black RH Toe HookBlack RH Toe Hook
-
141390909200 Avex RivetAvex Rivet
-
145207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
150233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
160514054846 Spring BracketSpring Bracket
-
170390909200 Avex RivetAvex Rivet
-
200518327535 Brace Ass'y. Includes 200 to 200aBrace Ass'y. Includes 200 to 200a
-
200a512060295 Rubber MountRubber Mount
-
205234281474 Conical Spring Washer M8Conical Spring Washer M8
-
300518328391 Cross Member. Includes 300 to 300cCross Member. Includes 300 to 300c
-
300a518327487 Front Suspension SupportFront Suspension Support
-
300b207161444 Hex. Screw M6 X 14Hex. Screw M6 X 14
-
300c232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
310233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
320210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
330207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
335207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
340233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
350293150163 Rivet HucklokRivet Hucklok
-
370207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
510207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
511207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
535207584044 Hex. Flanged Screw M8 X 40, Scotch GripHex. Flanged Screw M8 X 40, Scotch Grip
-
700518326975 Front MemberFront Member
-
900518329105 Upper Support TubeUpper Support Tube
-
910207182044 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
920232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
1100518326848 Upper Column SupportUpper Column Support
-
1110207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
1120233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
1130414227300 ClipClip
-
1200518326355 Center Column SupportCenter Column Support
-
1210207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
1220233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
1700518327505 Radiator Protector. Comfort KitRadiator Protector. Comfort Kit
-
1720860200737 Tunnel Protector Kit. Comfort KitTunnel Protector Kit. Comfort Kit
-
173036108 Rivet. Comfort KitRivet. Comfort Kit
-
1740390909200 Avex Rivet. Comfort KitAvex Rivet. Comfort Kit
