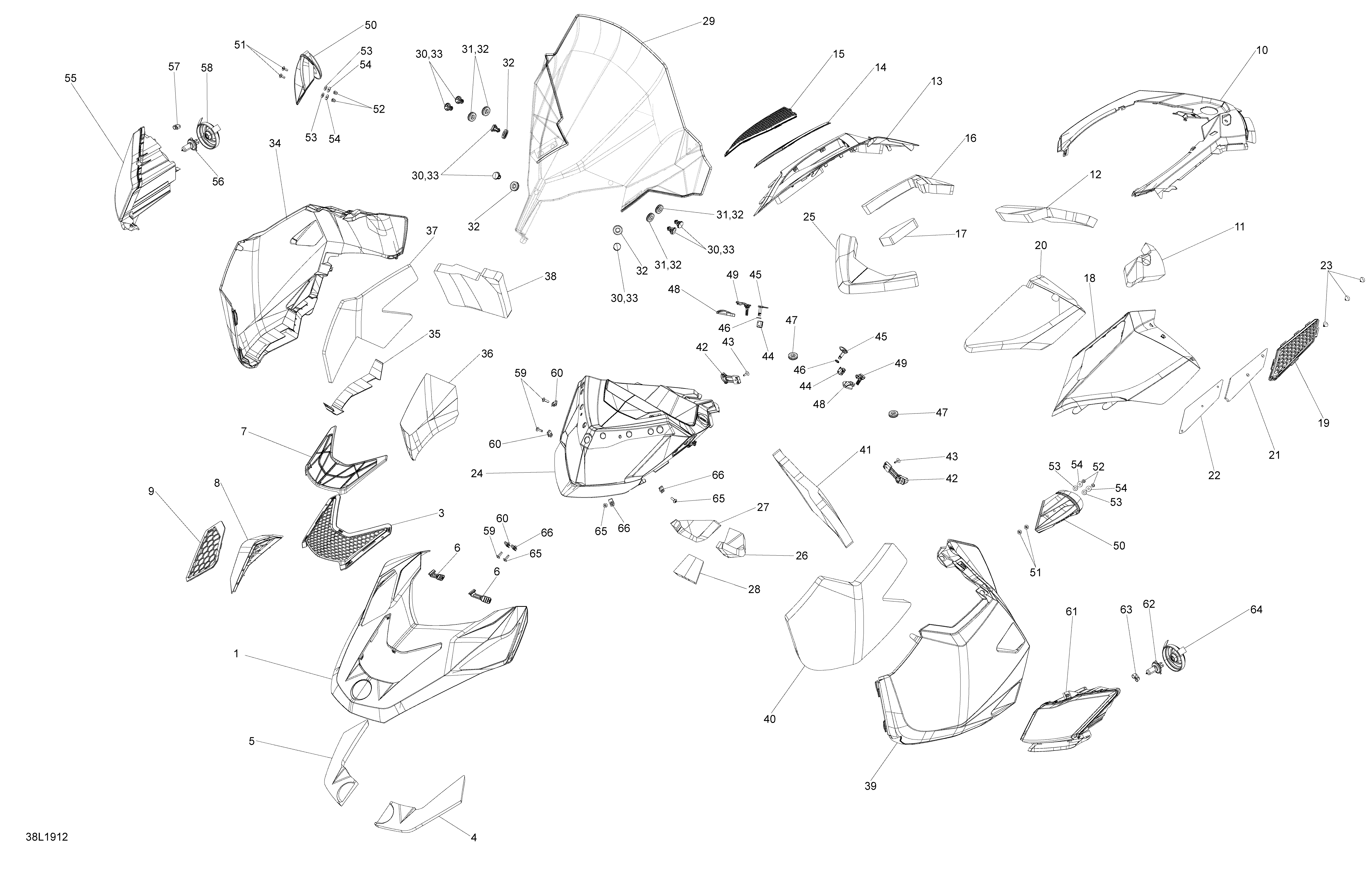

09- Hood Commander - 900 ACE для BRP Lynx 003 - Commander 900 ACE - 2019
-
№АртикулНазвание
-
1517304812 Black HoodBlack Hood
-
3517306329 Orange, Hood GrillOrange, Hood Grill
-
4517304330 InsulatorInsulator
-
5517304214 InsulatorInsulator
-
6517304289 Latch PannelLatch Pannel
-
10517306758 ConsoleConsole
-
11517305644 InsulatorInsulator
-
12517304318 InsulatorInsulator
-
13517304829 Black, RH Side Access Panel. Includes 13 to 15Black, RH Side Access Panel. Includes 13 to 15
-
14517304015 RH Access Panel GrillRH Access Panel Grill
-
15517304016 RH Lower Acces GrillRH Lower Acces Grill
-
16517304311 InsulatorInsulator
-
17517305987 InsulatorInsulator
-
18517304839 Black, LH Side Access Panel. Includes 18 to 19Black, LH Side Access Panel. Includes 18 to 19
-
19517303893 LH Access Panel GrillLH Access Panel Grill
-
20517304313 InsulatorInsulator
-
24517304272 Indicator Support. Except Package LTDIndicator Support. Except Package LTD
-
24517305281 Indicator Support. Package LTDIndicator Support. Package LTD
-
25517304314 InsulatorInsulator
-
26517304315 InsulatorInsulator
-
27517304316 InsulatorInsulator
-
28517304319 InsulatorInsulator
-
29860201000 Windshield Ass'yWindshield Ass'y
-
32517303756 GrommetGrommet
-
33517304744 ButtonButton
-
34517306970 Black, RH Side PanelBlack, RH Side Panel
-
35517306504 Aluminium FoilAluminium Foil
-
36517306505 Aluminium FoilAluminium Foil
-
37517306506 Aluminium FoilAluminium Foil
-
38517304310 RH Rear FoamRH Rear Foam
-
39517306973 Black, LH Side PanelBlack, LH Side Panel
-
40517303891 LH FoamLH Foam
-
41517304309 LH Rear FoamLH Rear Foam
-
42517304572 Latch-PanelLatch-Panel
-
43293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
44517304297 Handle Fastener Quarter-TurnHandle Fastener Quarter-Turn
-
45517304296 Quarter-Turn HandleQuarter-Turn Handle
-
46517304538 Locking PlateLocking Plate
-
47517304497 Side Panel SupportSide Panel Support
-
67293150211 RivetRivet
-
48517304075 End Piece LatchEnd Piece Latch
-
49517306057 Latch-PanelLatch-Panel
-
50517305787 RH/LH Mirror Ass'y. Package GT. Includes 50 to 54RH/LH Mirror Ass'y. Package GT. Includes 50 to 54
-
51250000721 Torx Screw. Package GTTorx Screw. Package GT
-
52232361493 Domed Nut M6. Package GTDomed Nut M6. Package GT
-
53250200024 Rubber Washer 5 mm. Package GTRubber Washer 5 mm. Package GT
-
5420117 Washer. Package GTWasher. Package GT
-
55517304194 RH Headlamp Ass'y. Includes 55 to 58RH Headlamp Ass'y. Includes 55 to 58
-
56515176274 Halogen Bulb, 60/55 W, 12 V ( H4 )Halogen Bulb, 60/55 W, 12 V ( H4 )
-
57515176498 CapCap
-
58515176499 CoverCover
-
59250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
60250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
61517304195 LH Headlamp Ass'y. Includes 61 to 64LH Headlamp Ass'y. Includes 61 to 64
-
62515176274 Halogen Bulb, 60/55 W, 12 V ( H4 )Halogen Bulb, 60/55 W, 12 V ( H4 )
-
63515176498 CapCap
-
64515176499 CoverCover
-
65250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
66250000957 Extruded Panel Nut M6Extruded Panel Nut M6
