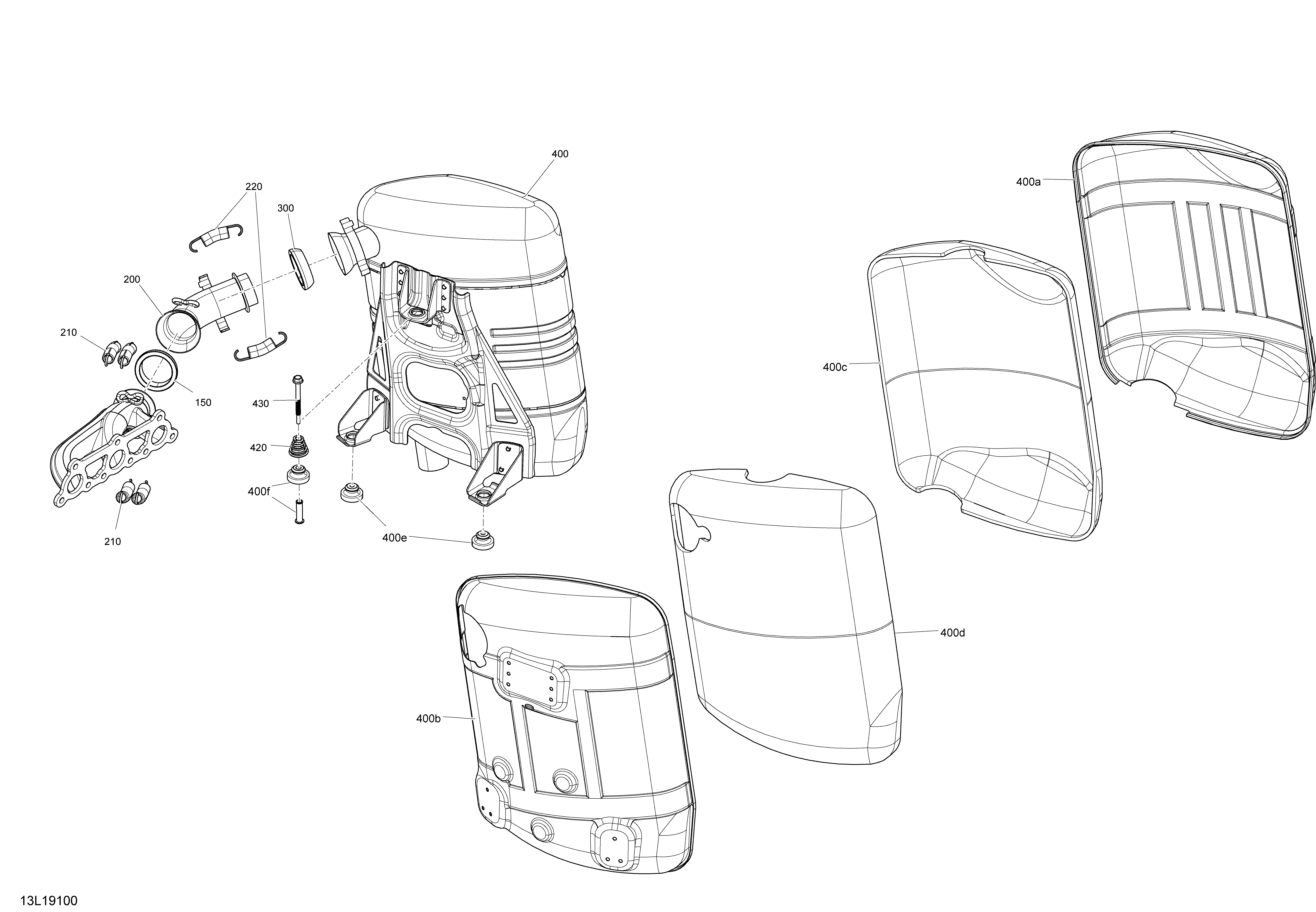

01- Exhaust - 900 ACE для BRP Lynx 003 - 49 Ranger 900 ACE - 2019
-
№АртикулНазвание
-
150707601033 Exhaust GasketExhaust Gasket
-
200514055475 PipePipe
-
210707601834 SpringSpring
-
220514055198 SpringSpring
-
300707601033 Exhaust GasketExhaust Gasket
-
400514055479 Muffler Ass'y. Includes 400 to 400fMuffler Ass'y. Includes 400 to 400f
-
400a514055793 RH DeflectorRH Deflector
-
400b514055482 LH DeflectorLH Deflector
-
400c514055711 RH WoolRH Wool
-
400d514055712 WoolWool
-
400e514055203 StopperStopper
-
400f514055422 Stopper Ass'yStopper Ass'y
-
420514055282 SpringSpring
-
430250000926 Hex. Flanged Screw M6Hex. Flanged Screw M6
