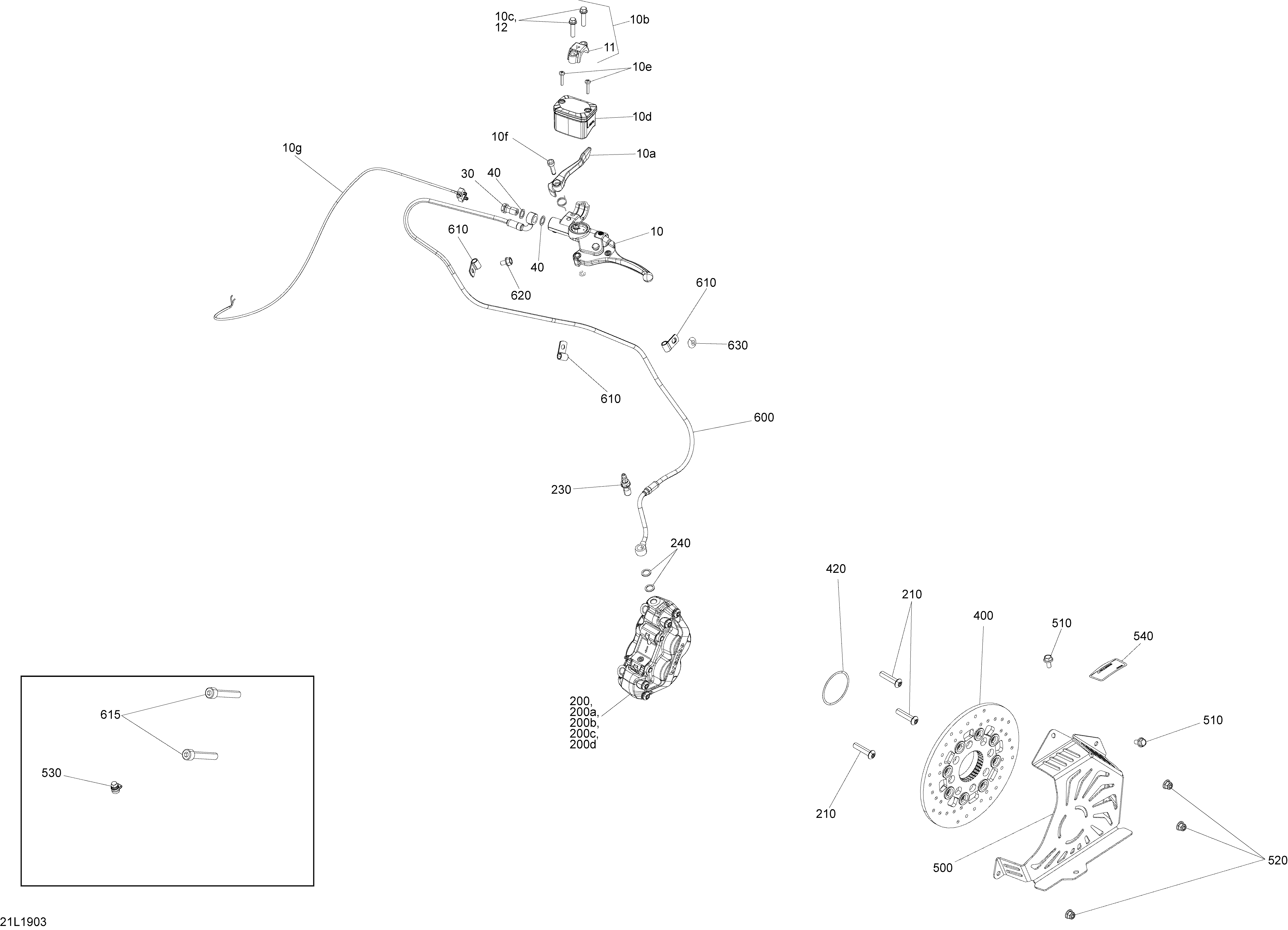

06- Brakes - 49 Ranger для BRP Lynx 003 - 49 Ranger 900 ACE - 2019
-
№АртикулНазвание
-
10507032591 Master Cylinder Ass'y. Includes 10 to 10gMaster Cylinder Ass'y. Includes 10 to 10g
-
10a507032476 LeverLever
-
10b507032477 Clamp And Screw Kit. Includes 10b to 10cClamp And Screw Kit. Includes 10b to 10c
-
10c250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
10d507032478 Master Cylinder Reservoir Ass'y. Includes 10d to 10eMaster Cylinder Reservoir Ass'y. Includes 10d to 10e
-
10e415129356 Screw M4 X 20Screw M4 X 20
-
10f415030000 Pin Ass'yPin Ass'y
-
10g507032601 MicroswitchMicroswitch
-
11719000049 Clamps KitClamps Kit
-
12250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
30507032551 Banjo BoltBanjo Bolt
-
40705601628 Copper WasherCopper Washer
-
200507032602 Brake Caliper Assembly. Includes 200 to 200cBrake Caliper Assembly. Includes 200 to 200c
-
200a507032473 Brake Pads KitBrake Pads Kit
-
200b507032474 Pin, Clip & Spring KitPin, Clip & Spring Kit
-
200c507032475 BleederBleeder
-
210250000764 Hex. Button Head Screw M8 X 1.25 X 35Hex. Button Head Screw M8 X 1.25 X 35
-
230507032551 Banjo BoltBanjo Bolt
-
240705601628 Copper WasherCopper Washer
-
400507032487 DiskDisk
-
420293300209 O-ringO-ring
-
500507032619 Black, Disk ProtectorBlack, Disk Protector
-
510250000767 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
520233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
530293900129 Hexagonal CapHexagonal Cap
-
540516007652 Warning DecalWarning Decal
-
600507032626 Brake HoseBrake Hose
-
610414108400 Open ClampOpen Clamp
-
615250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
620210261040 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
630293150231 Blind Rivet 3/16Blind Rivet 3/16
