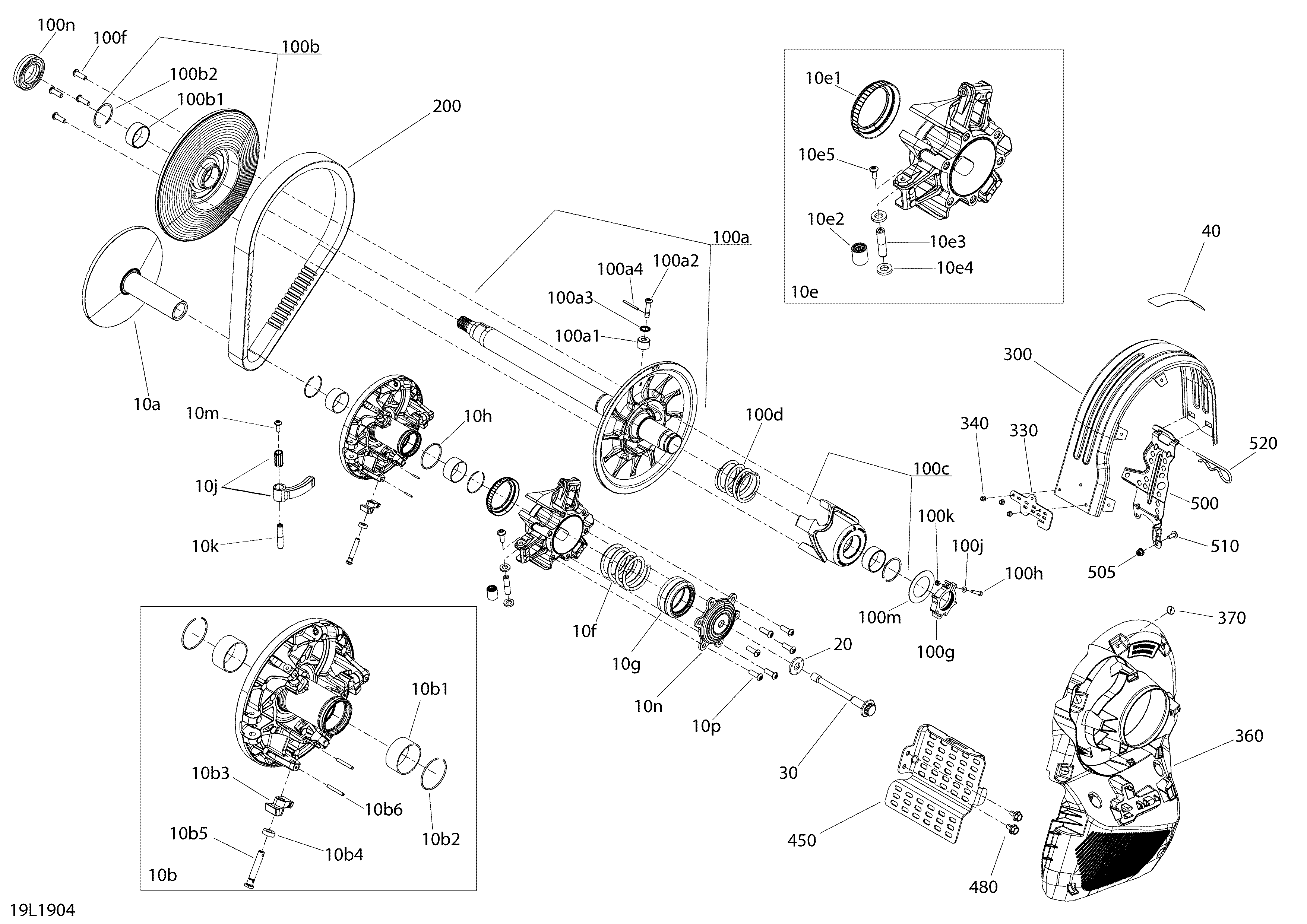

05- Pulley - 900 ACE для BRP Lynx 003 - 49 Ranger 900 ACE - 2019
-
№АртикулНазвание
-
10a417224340 Fixed Flange AssemblyFixed Flange Assembly
-
10b417224446 Sheave Drive Pulley Sliding Ass'y. Includes 10b to 10b6Sheave Drive Pulley Sliding Ass'y. Includes 10b to 10b6
-
10b1293250389 BushingBushing
-
10b2293370117 CirclipCirclip
-
10b3417224478 SliderSlider
-
10b4417224509 StopperStopper
-
10b5417224510 PinPin
-
10b6250400074 Spring Pin 3/32'' X 3/4''Spring Pin 3/32'' X 3/4''
-
10e417224447 Spider Drive Pulley Ass'y. Includes 10e to 10e5Spider Drive Pulley Ass'y. Includes 10e to 10e5
-
10e1417224257 Spring GuideSpring Guide
-
10e2417223808 Roller AssyRoller Assy
-
10e3417224204 Axle - 10mmAxle - 10mm
-
10e4417224009 Washer-ThrustWasher-Thrust
-
10e5250000763 Torx-Truss M/S M5 X 14 S.GripTorx-Truss M/S M5 X 14 S.Grip
-
10f417224330 Clutch SpringClutch Spring
-
10g417224003 Seat SpringSeat Spring
-
10h293370116 CirclipCirclip
-
10j417224370 Ramp 826 Ass'yRamp 826 Ass'y
-
10k417223631 Axle - 8mmAxle - 8mm
-
10m250000763 Torx-Truss M/S M5 X 14 S.GripTorx-Truss M/S M5 X 14 S.Grip
-
10n417224213 Torque FlangeTorque Flange
-
10p250000757 Screw-Torx Button Head M8 X 25 S.GrScrew-Torx Button Head M8 X 25 S.Gr
-
20250200144 Conical Spring Washer M14Conical Spring Washer M14
-
30417300522 Pulley Drive Bolt M14 X 144Pulley Drive Bolt M14 X 144
-
40516007667 Warning DecalWarning Decal
-
100a417127729 Fixed Flange Ass'yFixed Flange Ass'y
-
100a1417127016 RollerRoller
-
100a2417127294 Pivot StudPivot Stud
-
100a3250200009 Lock Washer 8 mmLock Washer 8 mm
-
100a4250400070 Spring PinSpring Pin
-
100b417127317 Sliding Flange Ass'ySliding Flange Ass'y
-
100b1417127318 Bushing ID 41mm OD 45mm X 19mm LBushing ID 41mm OD 45mm X 19mm L
-
100b2293370049 CirclipCirclip
-
100c417127709 Cam Ass'yCam Ass'y
-
100d417127467 Release SpringRelease Spring
-
100f250000757 Screw-Torx Button Head M8 X 25 S.GrScrew-Torx Button Head M8 X 25 S.Gr
-
100g415129604 Calibration Ass'yCalibration Ass'y
-
100h250000981 Socket Screw M5 X 25Socket Screw M5 X 25
-
100j234051410 Flat Washer M5Flat Washer M5
-
100k232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
100m417127155 WasherWasher
-
100n504152574 Ball BearingBall Bearing
-
200417300383 Drive BeltDrive Belt
-
300417300479 Belt GuardBelt Guard
-
330417300525 Front Retaining HookFront Retaining Hook
-
340390909200 Avex RivetAvex Rivet
-
360417300550 Duct CVT CoolingDuct CVT Cooling
-
370293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
450417300508 Front Support GuardFront Support Guard
-
480207561044 Flanged Screw M6 X 10, Scotch GripFlanged Screw M6 X 10, Scotch Grip
-
500417300507 Rear Support GuardRear Support Guard
-
505233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
510250000755 Torx Screw M6 X 16Torx Screw M6 X 16
-
520114045200 Hair PinHair Pin
