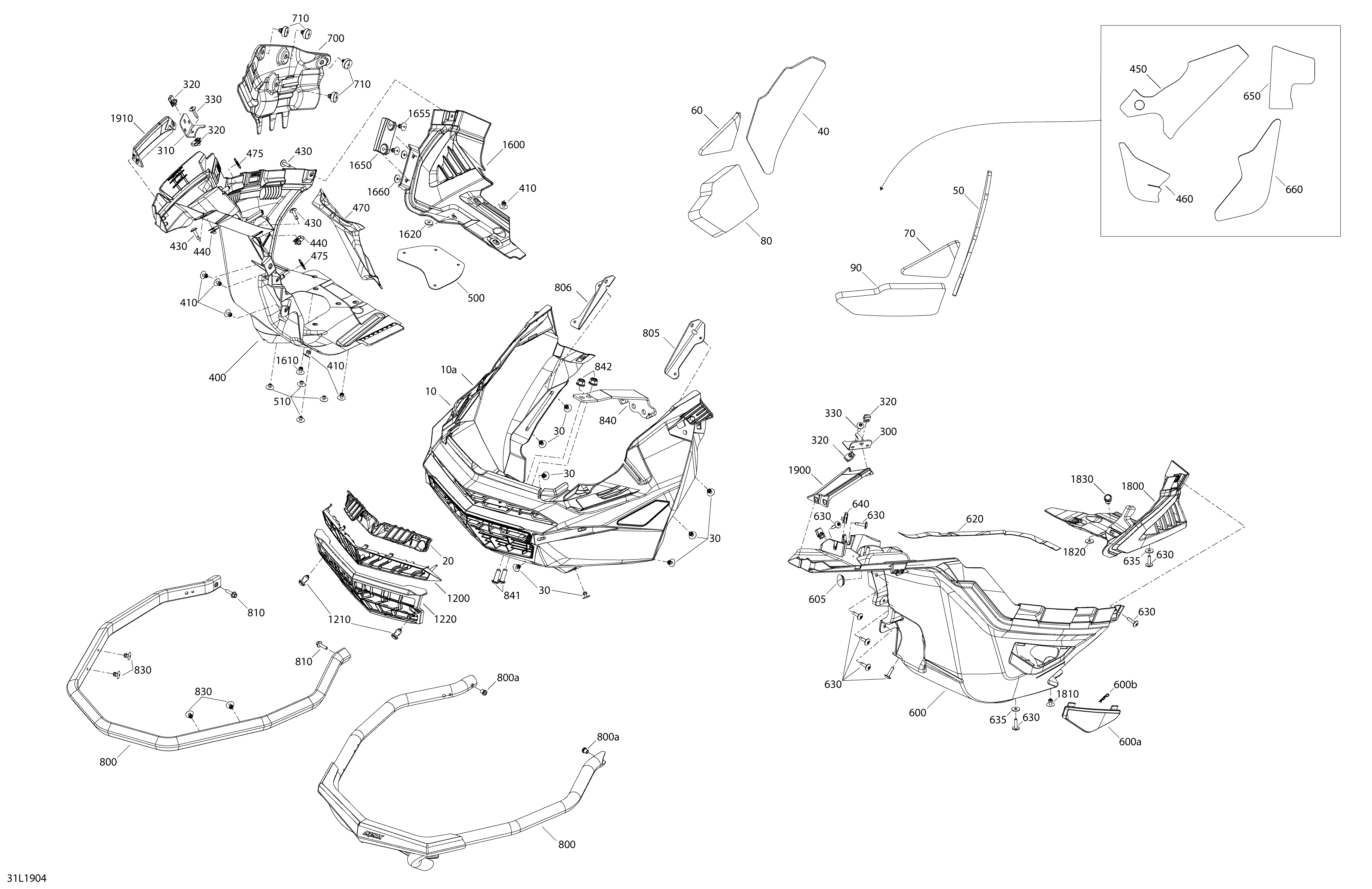

09- Bottom Pan 49 Ranger - 900 ACE для BRP Lynx 003 - 49 Ranger 900 ACE - 2019
-
№АртикулНазвание
-
10502007867 Front Bottom Pan. Except Package ST. Includes 10 to 10aFront Bottom Pan. Except Package ST. Includes 10 to 10a
-
10a502007673 Front Bottom PanFront Bottom Pan
-
20502007810 Hood CatchHood Catch
-
30293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
40502007463 RH Bottom Pan Upper FoamRH Bottom Pan Upper Foam
-
50502007653 LH Bottom Pan Upper FoamLH Bottom Pan Upper Foam
-
60502007545 RH Bottom Pan Central FoamRH Bottom Pan Central Foam
-
70502007546 LH Bottom Pan Central FoamLH Bottom Pan Central Foam
-
80502007465 RH Bottom Pan Lower FoamRH Bottom Pan Lower Foam
-
90502007466 LH Bottom Pan Lower FoamLH Bottom Pan Lower Foam
-
300502007723 LH Screw PlateLH Screw Plate
-
310502007724 RH Screw PlateRH Screw Plate
-
320250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
330250000586 Torx Truss M5 X 20Torx Truss M5 X 20
-
400502007774 RH Bottom PanRH Bottom Pan
-
410293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
430250000586 Torx Truss M5 X 20Torx Truss M5 X 20
-
440250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
450502007908 RH Bottom Pan Upper FoamRH Bottom Pan Upper Foam
-
460502007909 RH Bottom Pan Lower FoamRH Bottom Pan Lower Foam
-
470502007902 Heat ShieldHeat Shield
-
475508000853 Push NutPush Nut
-
500502007901 PlatePlate
-
510293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
600502007864 LH Bottom Pan Ass'y. Includes 600 to 600bLH Bottom Pan Ass'y. Includes 600 to 600b
-
600a502007676 Door - Bottom PanDoor - Bottom Pan
-
600b269800431 HairpinHairpin
-
605518330527 Bottom Pan PlugBottom Pan Plug
-
620293250087 Gasket, NeopreneGasket, Neoprene
-
630250000586 Torx Truss M5 X 20Torx Truss M5 X 20
-
635250200025 Washer M5Washer M5
-
640250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
650502007910 LH Bottom Pan Upper FoamLH Bottom Pan Upper Foam
-
660502007911 LH Bottom Pan Lower FoamLH Bottom Pan Lower Foam
-
700502007893 Heat ShieldHeat Shield
-
710502007957 StopperStopper
-
800502007460 Front Bumper. Package STFront Bumper. Package ST
-
800502007971 Black, Bumper. Except Package ST. Includes 800 to 800aBlack, Bumper. Except Package ST. Includes 800 to 800a
-
800a293450268 Insert M5 X 0.8. Except Package STInsert M5 X 0.8. Except Package ST
-
805502007915 LH Bumper Fastener. Except Package STLH Bumper Fastener. Except Package ST
-
806502007916 RH Bumper Fastener. Except Package STRH Bumper Fastener. Except Package ST
-
810207552044 Hex. Flanged Screw M5 X 20, Scotch GripHex. Flanged Screw M5 X 20, Scotch Grip
-
830293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
840518330693 Center Bracket. Except Package STCenter Bracket. Except Package ST
-
841250000757 Screw-Torx Button Head M8 X 25 S.Gr. Except Package STScrew-Torx Button Head M8 X 25 S.Gr. Except Package ST
-
842233281414 Hex. Flanged Elastic Nut M8. Except Package STHex. Flanged Elastic Nut M8. Except Package ST
-
1200502007977 Upper Hood FilterUpper Hood Filter
-
1210293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1220502007978 Belly Pan FilterBelly Pan Filter
-
1600502007859 RH Bottom Pan Corner 16''RH Bottom Pan Corner 16''
-
1610293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1620517124300 WasherWasher
-
1650502007757 StopperStopper
-
1655293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1660517124300 WasherWasher
-
1800502008031 LH Bottom Pan Corner 16''LH Bottom Pan Corner 16''
-
1810293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1820517124300 WasherWasher
-
1830293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1900502008035 LH Bottom Pan DeflectorLH Bottom Pan Deflector
-
1910502008036 RH Bottom Pan DeflectorRH Bottom Pan Deflector
