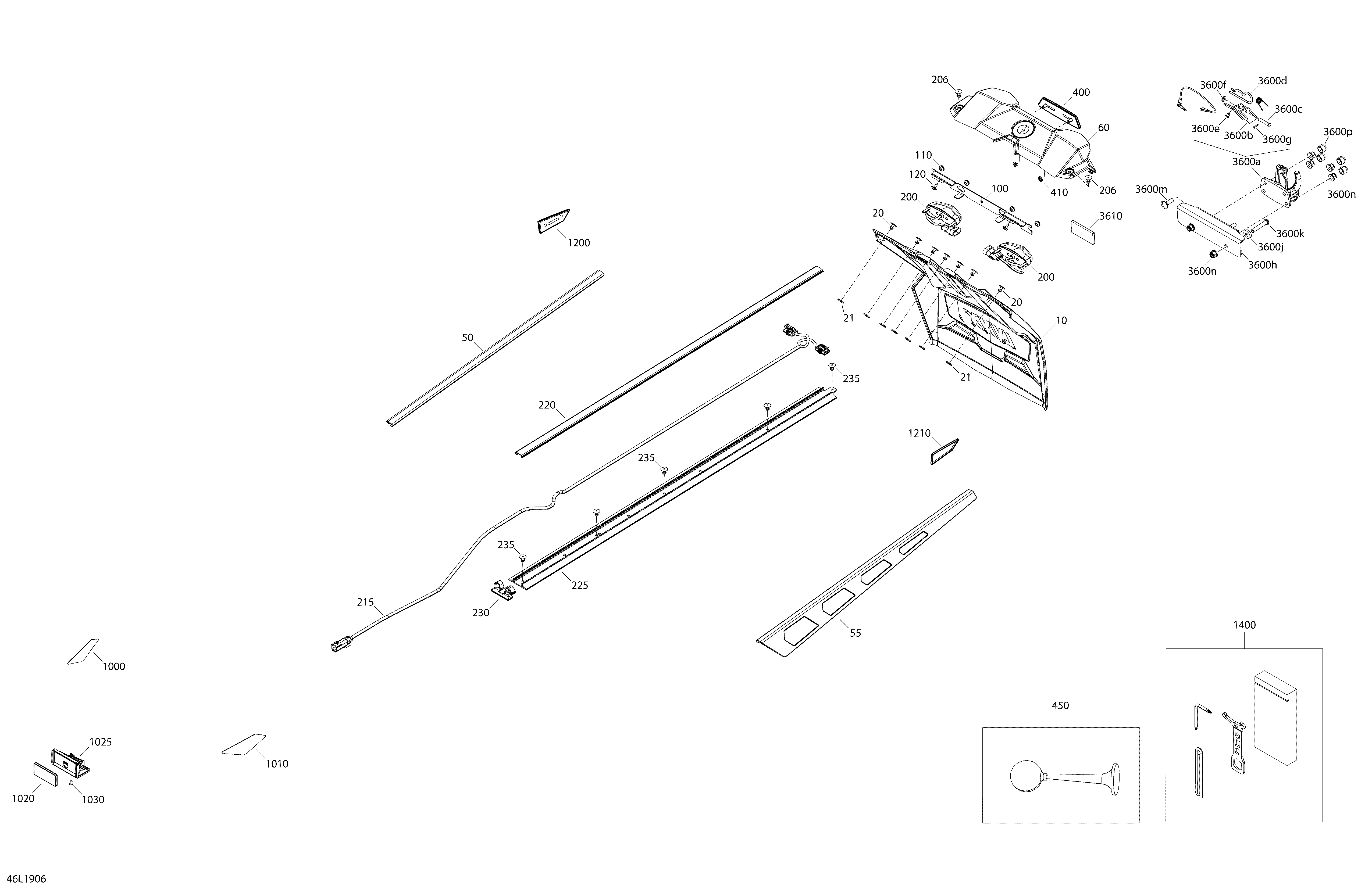

09- Utilities 49 Ranger - 900 ACE для BRP Lynx 003 - 49 Ranger 900 ACE - 2019
-
№АртикулНазвание
-
10520001886 Snow GuardSnow Guard
-
20293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
21517124300 WasherWasher
-
50520000693 RH ProtectorRH Protector
-
55520000694 LH ProtectorLH Protector
-
60520001701 Light FairingLight Fairing
-
100520001773 Rear Light Support PlateRear Light Support Plate
-
110293720101 GrommetGrommet
-
120250000805 Plastite Screw M4 X 10Plastite Screw M4 X 10
-
200520001302 Rear LightRear Light
-
206293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
215515178536 Wiring HarnessWiring Harness
-
230520001722 CapCap
-
235293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
400705012208 Red, Rear ReflectorRed, Rear Reflector
-
410732610072 Push NutPush Nut
-
450549011291 HornHorn
-
1000520001493 RH Front ReflectorRH Front Reflector
-
1010520001494 LH Front ReflectorLH Front Reflector
-
102021118 Reflector (Bright)Reflector (Bright)
-
1025520001776 Reflector SupportReflector Support
-
1030390403000 Pop Rivet 5/32Pop Rivet 5/32
-
1200705007154 Yellow, RH ReflectorYellow, RH Reflector
-
1210705007155 Yellow, LH ReflectorYellow, LH Reflector
-
1400520001767 Tool KitTool Kit
-
3600a520001774 Hitch Ass'y. Includes 3600a to 3600gHitch Ass'y. Includes 3600a to 3600g
-
3600b520001775 Locking PlateLocking Plate
-
3600c520001810 Clevis PinClevis Pin
-
3600d41029 Hair pinHair pin
-
3600e390909100 Avex RivetAvex Rivet
-
3600f520001811 WasherWasher
-
3600g520001812 Cotter PinCotter Pin
-
3600h520001632 Hitch SupportHitch Support
-
3600j520001288 SleeveSleeve
-
3600k205484546 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
3600m207782544 Carriage Bolt, M8 X 25Carriage Bolt, M8 X 25
-
3600n233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
3600p28056 CoverCover
-
361021126 Red, Reflector 121123-100Red, Reflector 121123-100
