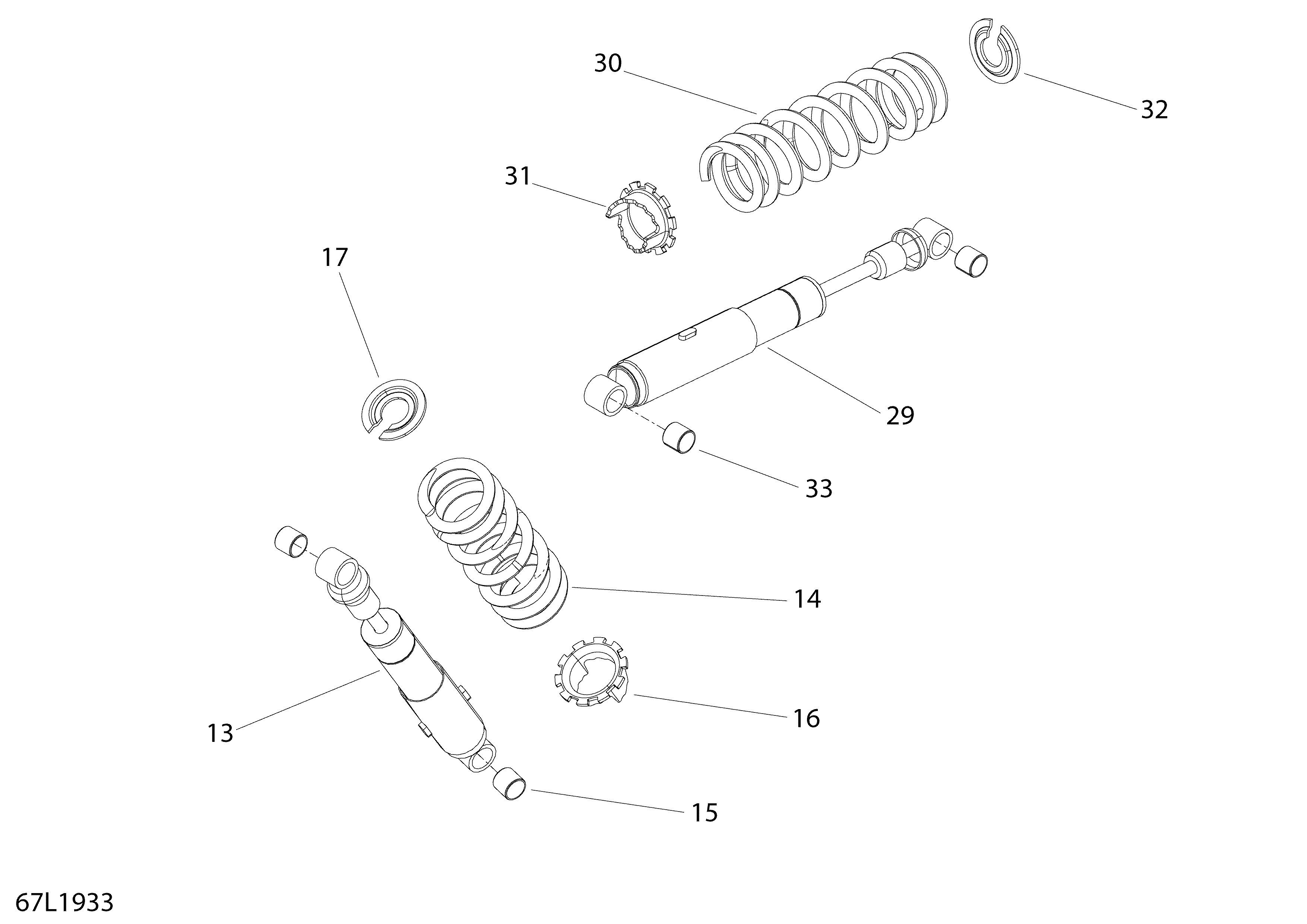

08- Rear Shocks 49 Ranger для BRP Lynx 003 - 49 Ranger 900 ACE - 2019
-
№АртикулНазвание
-
13503193516 ShockShock
-
14503192431 SpringSpring
-
1531094 CushionCushion
-
16230078 Adjusting CamAdjusting Cam
-
17230076 Spring SeatSpring Seat
-
29503193518 ShockShock
-
30503192429 SpringSpring
-
31230078 Adjusting CamAdjusting Cam
-
32230076 Spring SeatSpring Seat
-
3331094 CushionCushion
