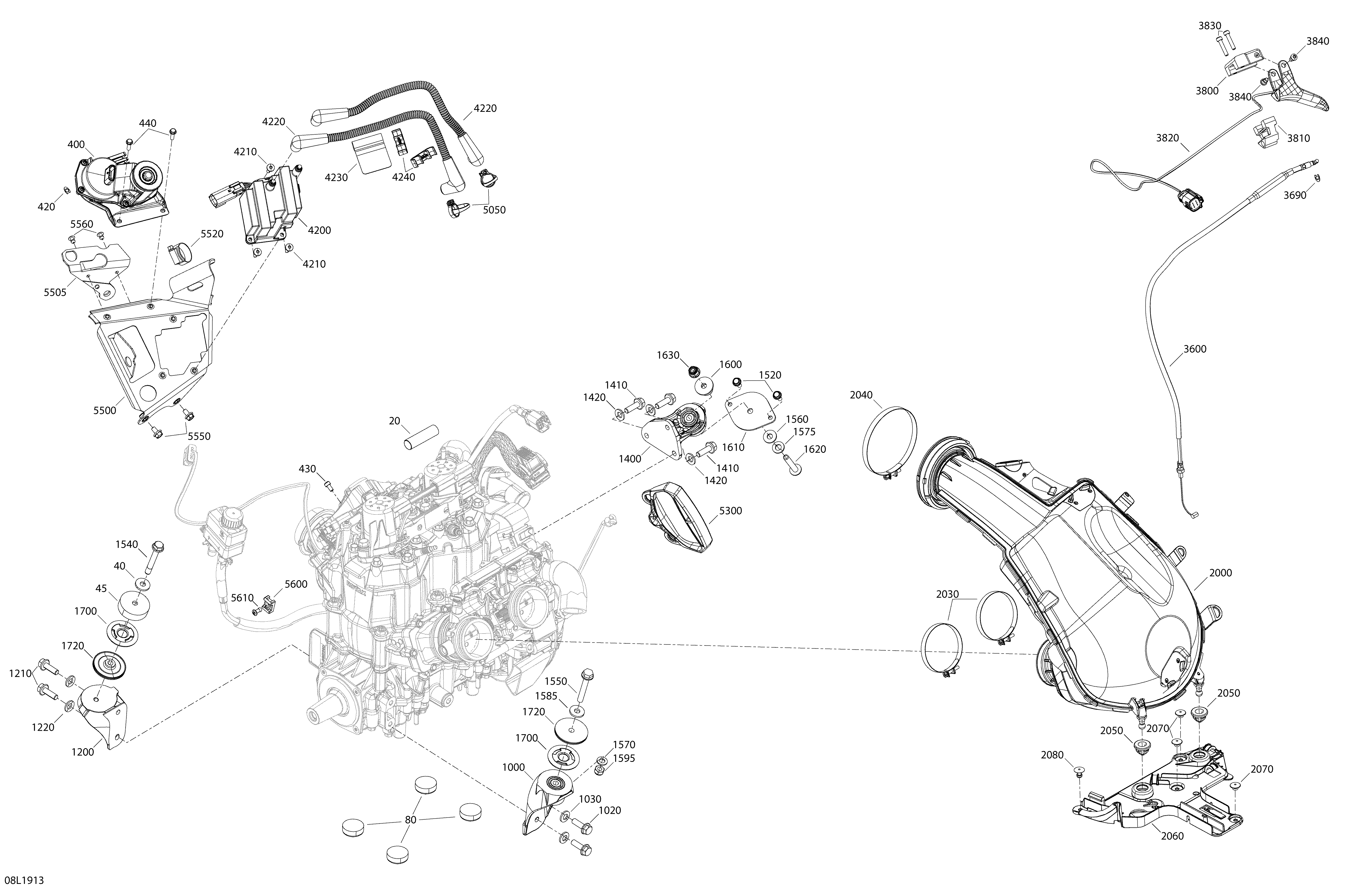

01- Engine Rave - 600 Racing для BRP Lynx 003 - RAVE RS 600 RS E-TEC - 2019
-
№АртикулНазвание
-
20515178492 Braided Sleeve 60MM LongBraided Sleeve 60MM Long
-
40503183200 Washer, YellowWasher, Yellow
-
45512061340 LimiterLimiter
-
80512061204 StopperStopper
-
400420889438 Servo Motor Ass'yServo Motor Ass'y
-
420293370122 CirclipCirclip
-
430205551060 Socket Head Screw M5 X 10Socket Head Screw M5 X 10
-
440207551634 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
1000512061283 Support Ass'ySupport Ass'y
-
1020250001016 Hex Flanged Screw M8 X 25 S.GripHex Flanged Screw M8 X 25 S.Grip
-
1030250200146 Conical Spring Washer M8Conical Spring Washer M8
-
1200512061025 Front PTO SupportFront PTO Support
-
1210250001016 Hex Flanged Screw M8 X 25 S.GripHex Flanged Screw M8 X 25 S.Grip
-
1220250200146 Conical Spring Washer M8Conical Spring Washer M8
-
1400512061349 MAG SupportMAG Support
-
1410250001016 Hex Flanged Screw M8 X 25 S.GripHex Flanged Screw M8 X 25 S.Grip
-
1420250200146 Conical Spring Washer M8Conical Spring Washer M8
-
1520250001062 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
1540207586044 Hex. Flanged Screw M8 X 60, Scotch GripHex. Flanged Screw M8 X 60, Scotch Grip
-
1550207585544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
1560506151245 WasherWasher
-
1570250200008 Flat Washer With Teflon 8 mmFlat Washer With Teflon 8 mm
-
1575250200146 Conical Spring Washer M8Conical Spring Washer M8
-
1585503183200 Washer, YellowWasher, Yellow
-
1595232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
1600512061351 LimiterLimiter
-
1610512061347 ShimShim
-
1620250000535 Torx Screw M8 X 55Torx Screw M8 X 55
-
1630233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
1700512061137 Engine StopperEngine Stopper
-
1720512061335 SpacerSpacer
-
2000508001003 Chamber Ass'yChamber Ass'y
-
2030293650212 GEMI ClampGEMI Clamp
-
2040293650247 Gemi ClampGemi Clamp
-
2050420201630 Rubber CapRubber Cap
-
2060512061274 Airbox SupportAirbox Support
-
2070293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
2080293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3600512061295 Throttle CableThrottle Cable
-
3690414274500 CirclipCirclip
-
3800512061248 Upper HousingUpper Housing
-
3810512061294 Lower HousingLower Housing
-
3820512061266 Throttle Ass'yThrottle Ass'y
-
3830205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
3840250000991 Flanged Screw M5x12Flanged Screw M5x12
-
4200512061168 Ignition CoilIgnition Coil
-
4210250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
4220512061166 Ignition CableIgnition Cable
-
4230516007661 Warning Decal, InjectorsWarning Decal, Injectors
-
4240512061238 Spark Plug Wire HolderSpark Plug Wire Holder
-
5050512060993 ClampClamp
-
5300512060136 Starter GripStarter Grip
-
5500512061276 SupportSupport
-
5505512061296 SupportSupport
-
5520509000931 Gear ClampGear Clamp
-
5550207561044 Flanged Screw M6 X 10, Scotch GripFlanged Screw M6 X 10, Scotch Grip
-
5560390909100 Avex RivetAvex Rivet
-
5600293750026 Tie Rap MountTie Rap Mount
-
5610390402300 Pop Rivet 3/16''Pop Rivet 3/16''
