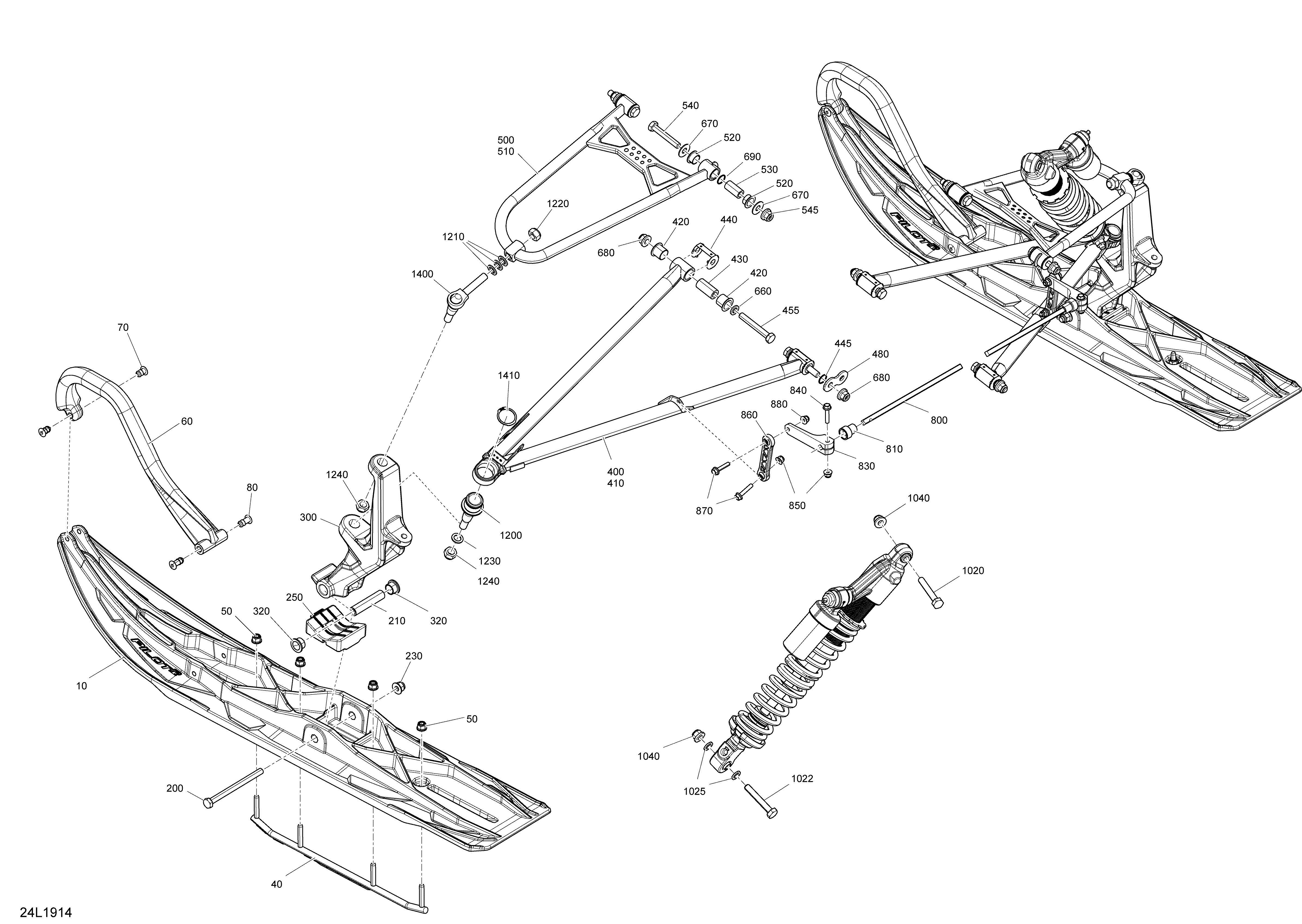

07- Front Suspension And Ski - Rave - 600 Racing для BRP Lynx 003 - RAVE RS 600 RS E-TEC - 2019
-
№АртикулНазвание
-
10505074670 Black, Racing SkiBlack, Racing Ski
-
40860201697 Runner KitRunner Kit
-
50233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
60505073138 Black HandleBlack Handle
-
70505071812 Retainer 17mm longRetainer 17mm long
-
80505072133 Retainer 23mm LongRetainer 23mm Long
-
200250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
210506133300 SpacerSpacer
-
230233201464 Hex. Elast. Flanged Nut M10 x 1.5Hex. Elast. Flanged Nut M10 x 1.5
-
250505072594 Ski StopperSki Stopper
-
300505074688 Viper Red, RH Ski Leg RSViper Red, RH Ski Leg RS
-
320505072690 Leg BushingLeg Bushing
-
400505074655 RH Lower ArmRH Lower Arm
-
410505074654 LH Lower ArmLH Lower Arm
-
420505073330 BushingBushing
-
430505072209 SleeveSleeve
-
440505072634 Wear PlateWear Plate
-
445505072448 O-RingO-Ring
-
455250001024 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
480505073844 PlatePlate
-
500505074104 LH Upper ArmLH Upper Arm
-
510505074105 RH Upper ArmRH Upper Arm
-
520505073329 BushingBushing
-
530505072143 SleeveSleeve
-
540250000290 Screw Hex. M10 X 1.25 X 60Screw Hex. M10 X 1.25 X 60
-
545250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
660503189564 WasherWasher
-
670505072392 WasherWasher
-
680250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
690505072448 O-RingO-Ring
-
800505073819 StabilizerStabilizer
-
810505072064 BushingBushing
-
830505073731 Stabilisator LeverStabilisator Lever
-
840207663056 Hex Flanged Screw M6 X 1.0 X 30Hex Flanged Screw M6 X 1.0 X 30
-
850233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
860505072204 Sway Bar Double Joint LinkSway Bar Double Joint Link
-
870207663056 Hex Flanged Screw M6 X 1.0 X 30Hex Flanged Screw M6 X 1.0 X 30
-
880233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1020250000824 Hexagonal Flange Screw M8 X 58Hexagonal Flange Screw M8 X 58
-
1022207686546 Hexagonal Flange Screw M8 X 65Hexagonal Flange Screw M8 X 65
-
1025505073892 SpacerSpacer
-
1040233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
1200505074133 Ball JointBall Joint
-
1210503189276 WasherWasher
-
1220250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
1230503192491 WasherWasher
-
1240232521464 Hex Elastic Nut M12 X 1.25Hex Elastic Nut M12 X 1.25
-
1400505072257 Upper Ball JointUpper Ball Joint
-
1410293370098 Snap RingSnap Ring
