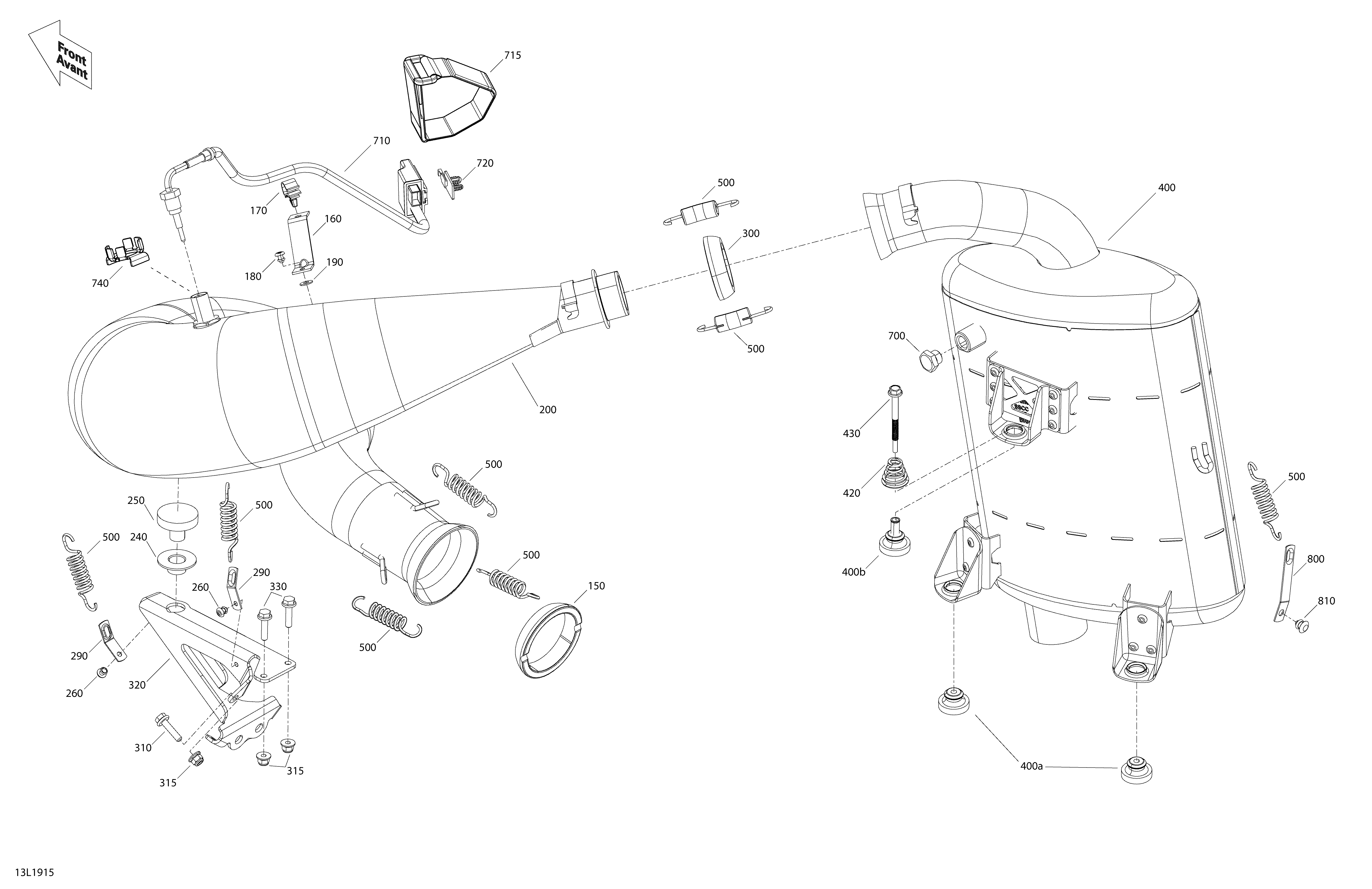

01- Exhaust Rave - 600 Racing для BRP Lynx 003 - RAVE RS 600 RS E-TEC - 2019
-
№АртикулНазвание
-
150514053487 Exhaust GasketExhaust Gasket
-
160514055512 SupportSupport
-
170515176795 Tie Rap Mount (screwable)Tie Rap Mount (screwable)
-
180390909200 Avex RivetAvex Rivet
-
190514055537 Washer 3/16Washer 3/16
-
200514055894 PipePipe
-
240514055831 Support StopperSupport Stopper
-
250514053654 Rubber BumperRubber Bumper
-
260390909200 Avex RivetAvex Rivet
-
290514054522 Spring BracketSpring Bracket
-
300514055294 Exhaust GasketExhaust Gasket
-
310207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
315233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
320514055830 SupportSupport
-
330207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
400514055429 Muffler Ass'y. Includes 400 to 400bMuffler Ass'y. Includes 400 to 400b
-
400a514055203 StopperStopper
-
400b514055422 Stopper Ass'yStopper Ass'y
-
420514055282 SpringSpring
-
430250000926 Hex. Flanged Screw M6Hex. Flanged Screw M6
-
500514055198 SpringSpring
-
700250100074 Hexagonal Head Pipe Plug M14Hexagonal Head Pipe Plug M14
-
710515178170 ModuleModule
-
715508000820 Velcro-StripVelcro-Strip
-
720514055393 SupportSupport
-
740514055704 Tab LockTab Lock
-
800514055644 Spring BracketSpring Bracket
-
810293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
