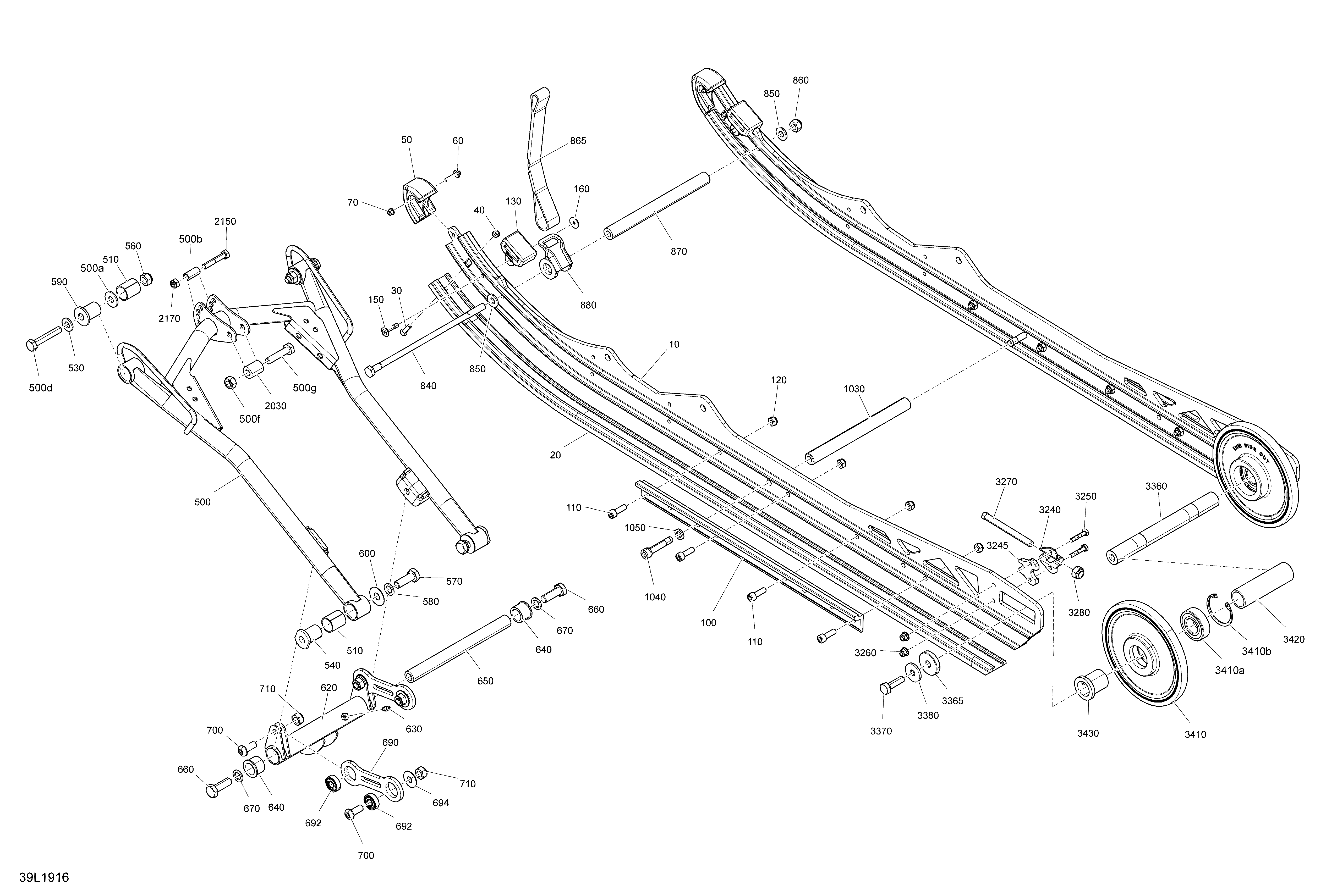

08- Rear Suspension - Lower Section для BRP Lynx 003 - RAVE RS 600 RS E-TEC - 2019
-
№АртикулНазвание
-
10503195247 Runner PPS2 RSRunner PPS2 RS
-
10503195247 Runner PPS2 RSRunner PPS2 RS
-
20503191499 Black Slider Shoe 146''Black Slider Shoe 146''
-
20503191499 Black Slider Shoe 146''Black Slider Shoe 146''
-
30208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
30208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
40232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
40232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
50503192299 Runner ProtectorRunner Protector
-
50503192299 Runner ProtectorRunner Protector
-
60207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
60207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
70233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
70233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
100503195398 Rail ReinforcementRail Reinforcement
-
100503195398 Rail ReinforcementRail Reinforcement
-
110205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
110205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
120232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
120232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
130503193504 Rubber StopperRubber Stopper
-
130503193504 Rubber StopperRubber Stopper
-
150293150224 Rivet Pop 3/16Rivet Pop 3/16
-
150293150224 Rivet Pop 3/16Rivet Pop 3/16
-
160503191273 WasherWasher
-
160503191273 WasherWasher
-
500503195248 Front ArmFront Arm
-
500503195248 Front ArmFront Arm
-
500a503191926 WasherWasher
-
500a503191926 WasherWasher
-
500b605455335 SleeveSleeve
-
500b605455335 SleeveSleeve
-
500d207006056 Hex. Cap Screw M10 X 60Hex. Cap Screw M10 X 60
-
500d207006056 Hex. Cap Screw M10 X 60Hex. Cap Screw M10 X 60
-
500f232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
500f232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
500g250000422 Hexagonal Screw M10 X 45Hexagonal Screw M10 X 45
-
500g250000422 Hexagonal Screw M10 X 45Hexagonal Screw M10 X 45
-
510503191554 BushingBushing
-
510503191554 BushingBushing
-
530250200138 WasherWasher
-
530250200138 WasherWasher
-
540503194579 Lower Axle SleeveLower Axle Sleeve
-
540503194579 Lower Axle SleeveLower Axle Sleeve
-
560233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
560233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
570250000537 Hex. Cap Screw M12 X 35Hex. Cap Screw M12 X 35
-
570250000537 Hex. Cap Screw M12 X 35Hex. Cap Screw M12 X 35
-
580503192491 WasherWasher
-
580503192491 WasherWasher
-
590503194580 Upper Axle SleeveUpper Axle Sleeve
-
590503194580 Upper Axle SleeveUpper Axle Sleeve
-
600503190656 WasherWasher
-
600503190656 WasherWasher
-
620503195249 Front SwingFront Swing
-
620503195249 Front SwingFront Swing
-
630408200700 Grease FittingGrease Fitting
-
630408200700 Grease FittingGrease Fitting
-
64031027 Flange Bearing (Cushion)Flange Bearing (Cushion)
-
64031027 Flange Bearing (Cushion)Flange Bearing (Cushion)
-
650503195399 Lower ShaftLower Shaft
-
650503195399 Lower ShaftLower Shaft
-
660250000537 Hex. Cap Screw M12 X 35Hex. Cap Screw M12 X 35
-
660250000537 Hex. Cap Screw M12 X 35Hex. Cap Screw M12 X 35
-
670503192491 WasherWasher
-
670503192491 WasherWasher
-
690503195460 Connecting RodConnecting Rod
-
690503195460 Connecting RodConnecting Rod
-
692503194696 BearingBearing
-
692503194696 BearingBearing
-
69425004 Cup SpringCup Spring
-
69425004 Cup SpringCup Spring
-
700205402546 Socket Screw BN.HD.ISO.7380Socket Screw BN.HD.ISO.7380
-
700205402546 Socket Screw BN.HD.ISO.7380Socket Screw BN.HD.ISO.7380
-
710232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
710232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
840503193227 Bolt M10 X 251MMBolt M10 X 251MM
-
840503193227 Bolt M10 X 251MMBolt M10 X 251MM
-
850250200138 WasherWasher
-
850250200138 WasherWasher
-
860233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
860233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
865503193780 Limiter StrapLimiter Strap
-
865503193780 Limiter StrapLimiter Strap
-
870503195400 Axle Stopper StrapAxle Stopper Strap
-
870503195400 Axle Stopper StrapAxle Stopper Strap
-
880503195144 Limiter Strap HolderLimiter Strap Holder
-
880503195144 Limiter Strap HolderLimiter Strap Holder
-
10305343471 ShaftShaft
-
10305343471 ShaftShaft
-
1040205505054 Socket ScrewSocket Screw
-
1040205505054 Socket ScrewSocket Screw
-
1050503192496 WasherWasher
-
1050503192496 WasherWasher
-
20305446652 BushingBushing
-
20305446652 BushingBushing
-
2150207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
2150207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
2170233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
2170233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
3240503192583 TensionerTensioner
-
3240503192583 TensionerTensioner
-
3245503193250 SpacerSpacer
-
3245503193250 SpacerSpacer
-
3250207063054 Hex. Cap Screw M6 X 30Hex. Cap Screw M6 X 30
-
3250207063054 Hex. Cap Screw M6 X 30Hex. Cap Screw M6 X 30
-
3260233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
3260233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
3270230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
3270230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
3280233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
3280233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
3360503194091 Axle-rearAxle-rear
-
3360503194091 Axle-rearAxle-rear
-
3365503192735 Rear Axle WasherRear Axle Washer
-
3365503192735 Rear Axle WasherRear Axle Washer
-
3370250000817 Hex Screw With Nilon Patch, M10 X 35Hex Screw With Nilon Patch, M10 X 35
-
3370250000817 Hex Screw With Nilon Patch, M10 X 35Hex Screw With Nilon Patch, M10 X 35
-
3380503183300 WasherWasher
-
3380503183300 WasherWasher
-
3410503191491 Wheel 180. Includes 3410 to 3410bWheel 180. Includes 3410 to 3410b
-
3410503191491 Wheel 180. Includes 3410 to 3410bWheel 180. Includes 3410 to 3410b
-
3410a293350115 Ball BearingBall Bearing
-
3410a293350115 Ball BearingBall Bearing
-
3410b415129371 Retaining RingRetaining Ring
-
3410b415129371 Retaining RingRetaining Ring
-
3420503156000 Center SpacerCenter Spacer
-
3420503156000 Center SpacerCenter Spacer
-
3430503195512 SpacerSpacer
-
3430503195512 SpacerSpacer
