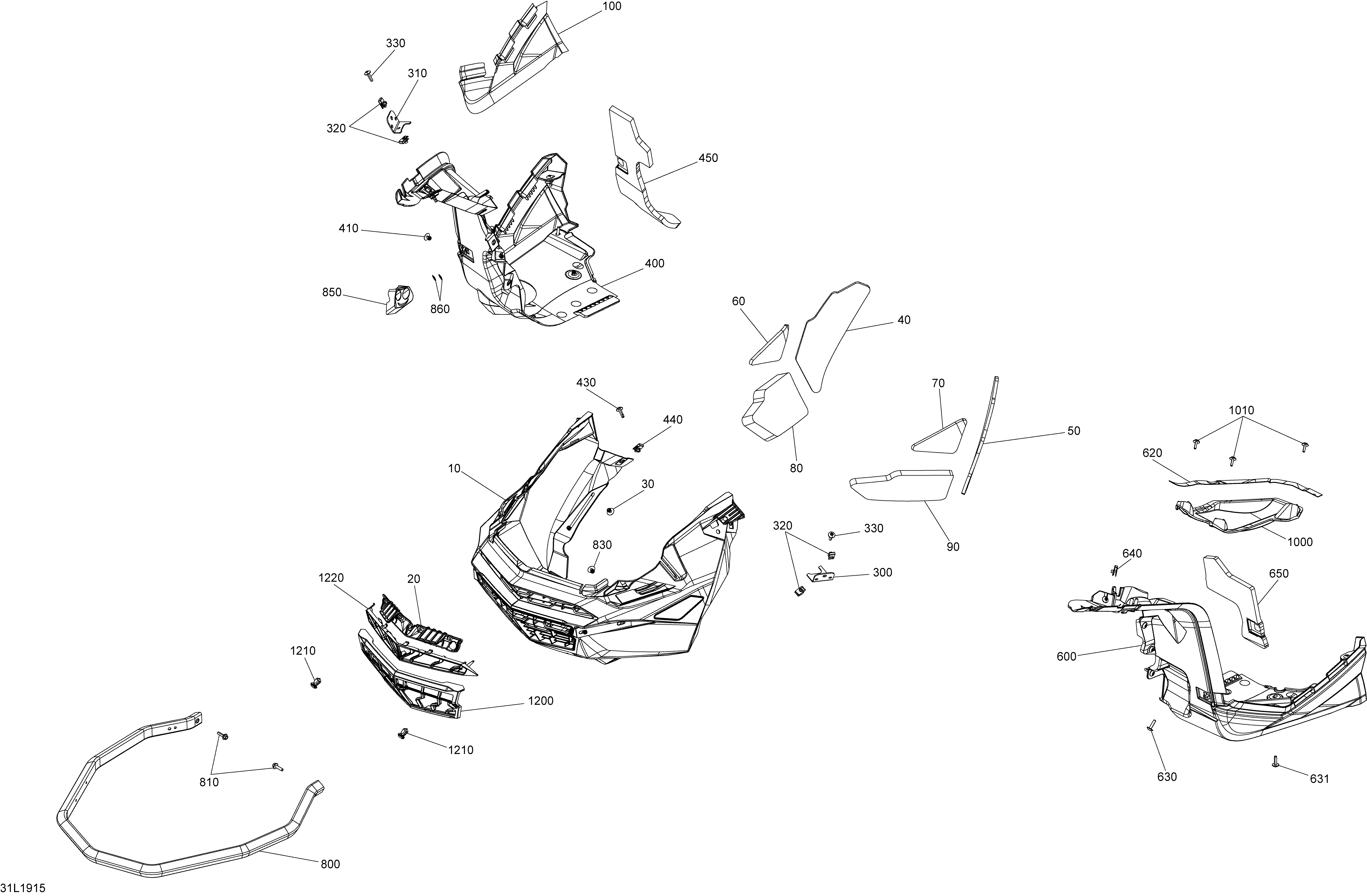

09- Bottom Pan Rave - 600 Racing для BRP Lynx 003 - RAVE RS 600 RS E-TEC - 2019
-
№АртикулНазвание
-
10502007673 Front Bottom PanFront Bottom Pan
-
20502007810 Hood CatchHood Catch
-
30293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
40502007463 RH Bottom Pan Upper FoamRH Bottom Pan Upper Foam
-
50502007653 LH Bottom Pan Upper FoamLH Bottom Pan Upper Foam
-
60502007545 RH Bottom Pan Central FoamRH Bottom Pan Central Foam
-
70502007546 LH Bottom Pan Central FoamLH Bottom Pan Central Foam
-
80502007465 RH Bottom Pan Lower FoamRH Bottom Pan Lower Foam
-
90502007466 LH Bottom Pan Lower FoamLH Bottom Pan Lower Foam
-
100508000911 Heat ShieldHeat Shield
-
300502007723 LH Screw PlateLH Screw Plate
-
310502007724 RH Screw PlateRH Screw Plate
-
320250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
330250000586 Torx Truss M5 X 20Torx Truss M5 X 20
-
400502007952 RH Bottom PanRH Bottom Pan
-
410293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
430250000586 Torx Truss M5 X 20Torx Truss M5 X 20
-
440250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
450502007695 RH Foam Upper Bottom PanRH Foam Upper Bottom Pan
-
600502007907 LH Bottom Pan. Includes 600 to 600aLH Bottom Pan. Includes 600 to 600a
-
600a502007930 LH Bottom PanLH Bottom Pan
-
620293250427 Neoprene SealNeoprene Seal
-
630250000586 Torx Truss M5 X 20Torx Truss M5 X 20
-
631250000586 Torx Truss M5 X 20Torx Truss M5 X 20
-
640250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
650502007697 LH Foam Upper Bottom PanLH Foam Upper Bottom Pan
-
800502007861 BumperBumper
-
810207552044 Hex. Flanged Screw M5 X 20, Scotch GripHex. Flanged Screw M5 X 20, Scotch Grip
-
830293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
850502007844 Rubber ProtectorRubber Protector
-
860732610072 Push NutPush Nut
-
1000502007670 Protection PlateProtection Plate
-
1010250000725 Screw M4 X 16Screw M4 X 16
-
1200508000960 Belly Pan FilterBelly Pan Filter
-
1210293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1220508000959 Upper Hood FilterUpper Hood Filter
