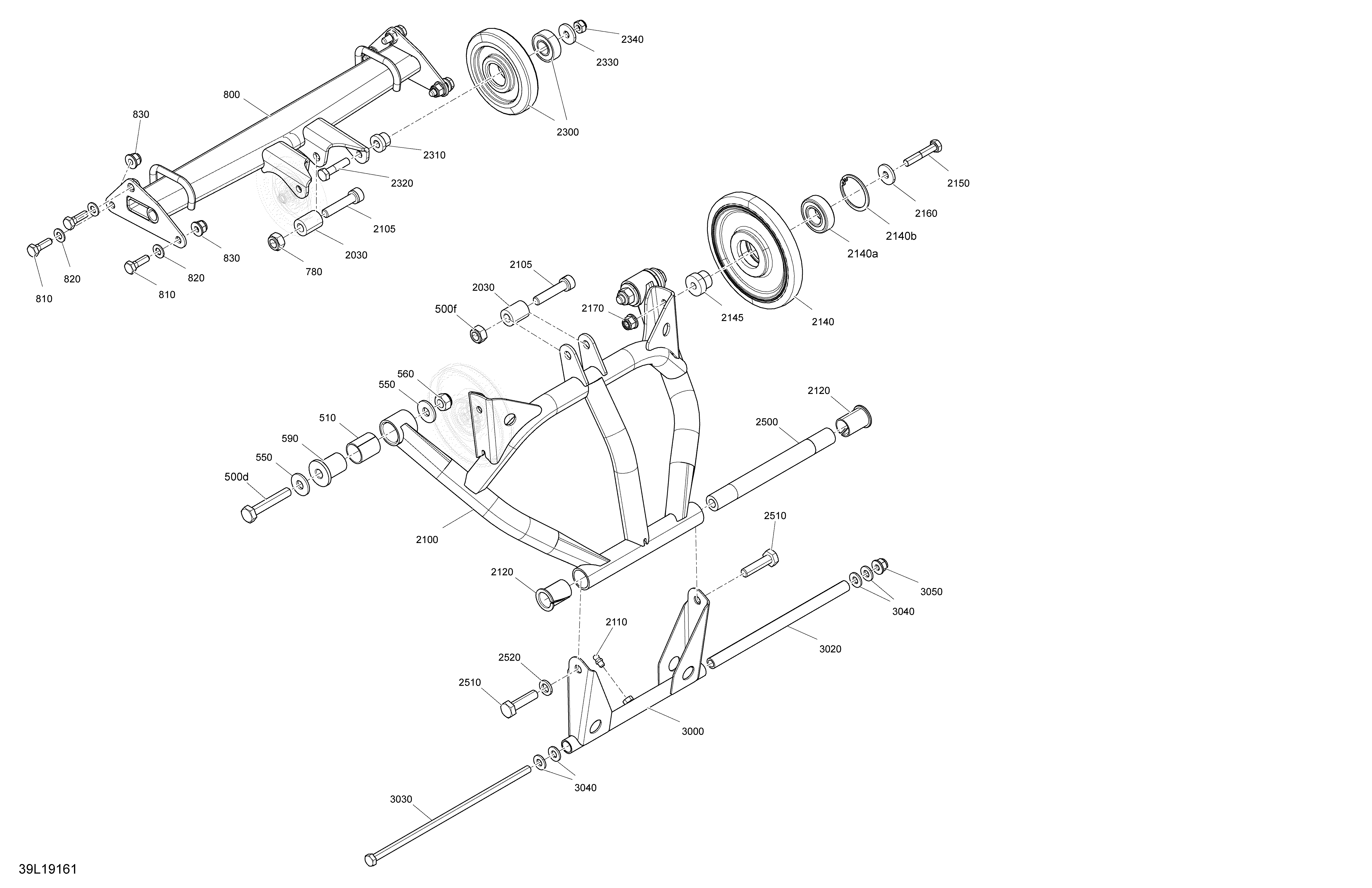

08- Rear Suspension - Upper Section для BRP Lynx 003 - RAVE RS 600 RS E-TEC - 2019
-
№АртикулНазвание
-
500d207006056 Hex. Cap Screw M10 X 60Hex. Cap Screw M10 X 60
-
500f232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
510503191554 BushingBushing
-
550503191926 WasherWasher
-
560233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
590503194580 Upper Axle SleeveUpper Axle Sleeve
-
780232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
800503193623 Middle BeamMiddle Beam
-
810250000556 Hexagonal ScrewHexagonal Screw
-
820503192494 WasherWasher
-
830233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
20305446652 BushingBushing
-
2100503194325 Rear ArmRear Arm
-
2105205004544 Socket Head Screw DIN 912Socket Head Screw DIN 912
-
2110408200700 Grease FittingGrease Fitting
-
2120503191640 CushionCushion
-
2140503193852 Idler Wheel. Includes 2140 to 2140bIdler Wheel. Includes 2140 to 2140b
-
2140a503190396 Ball BearingBall Bearing
-
2140b415129371 Retaining RingRetaining Ring
-
2145605454461 SleeveSleeve
-
2150207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
216020077 M8 WasherM8 Washer
-
2170233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
2300572043500 Idler WheelIdler Wheel
-
2310503193330 SleeveSleeve
-
2320207083544 Hex. Screw M8 X 35Hex. Screw M8 X 35
-
233020077 M8 WasherM8 Washer
-
2340232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
2500503193638 Shaft-lowerShaft-lower
-
2510207204044 Hexagonal ScrewHexagonal Screw
-
2520234001410 Flat Washer 10 mmFlat Washer 10 mm
-
3000503194342 Rear SwingRear Swing
-
3020503189156 Pivot Arm AxlePivot Arm Axle
-
3030503194069 Bolt M8Bolt M8
-
3040503192494 WasherWasher
-
3050233281466 Elastic Flang Nut M8Elastic Flang Nut M8
