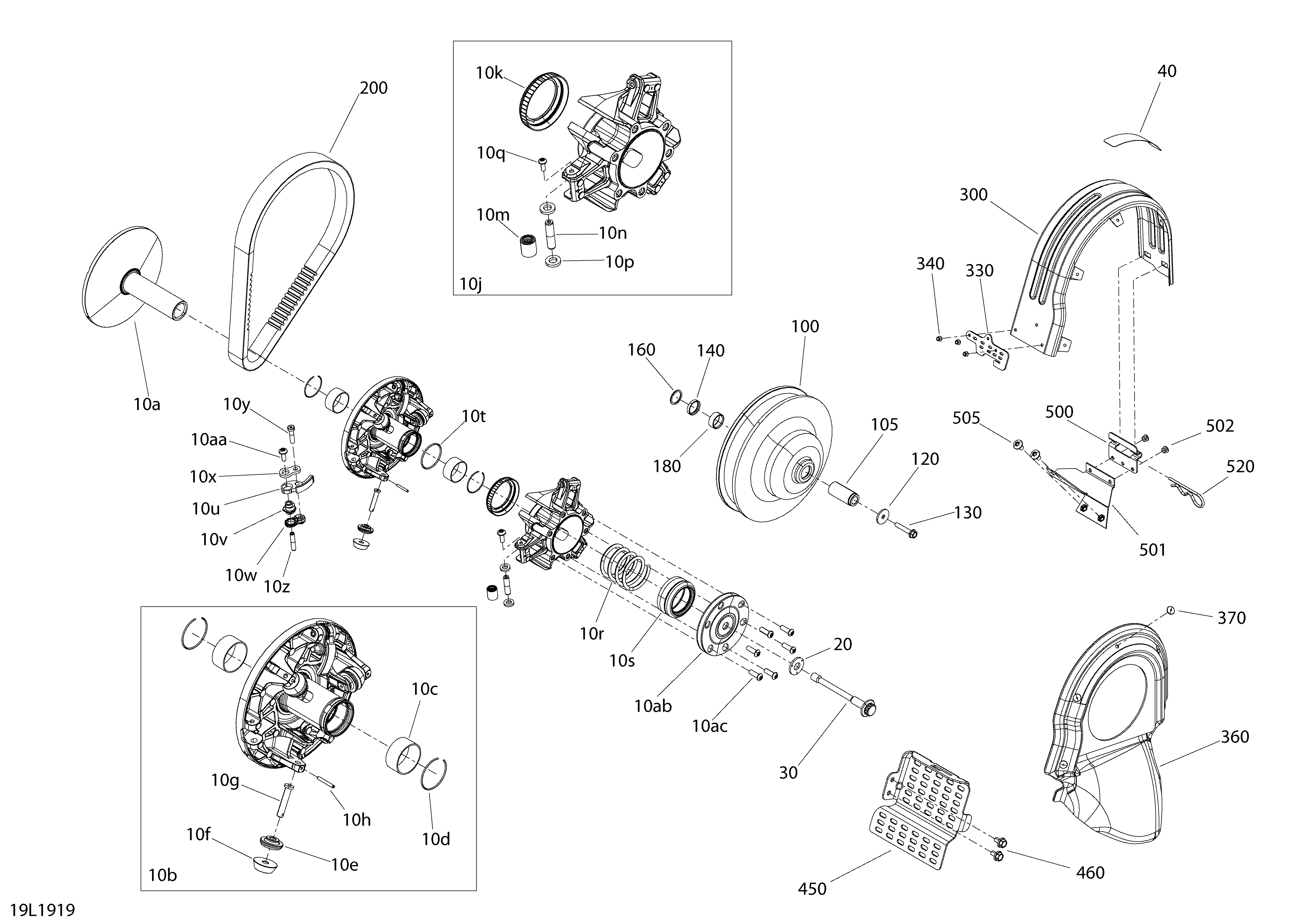

05- Pulley - Rave - 600 Racing для BRP Lynx 003 - RAVE RS 600 RS E-TEC - 2019
-
№АртикулНазвание
-
10a417224470 Fixed Sheave Drive Pulley Ass'yFixed Sheave Drive Pulley Ass'y
-
10b417224474 Sliding Sheave Drive Pulley Ass'y. Includes 10b to 10hSliding Sheave Drive Pulley Ass'y. Includes 10b to 10h
-
10c293250389 BushingBushing
-
10d293370117 CirclipCirclip
-
10e417223991 Back Torque RollerBack Torque Roller
-
10f417224458 Roller Pulley ExtRoller Pulley Ext
-
10g417224277 Axle - 8mmAxle - 8mm
-
10h250400074 Spring Pin 3/32'' X 3/4''Spring Pin 3/32'' X 3/4''
-
10j417224472 Spider Drive Pulley Ass'y. Includes 10j to 10qSpider Drive Pulley Ass'y. Includes 10j to 10q
-
10k417224151 Spring GuideSpring Guide
-
10m417223808 Roller AssyRoller Assy
-
10n417223989 Axle - 10mmAxle - 10mm
-
10p417224009 Washer-ThrustWasher-Thrust
-
10q250000763 Torx-Truss M/S M5 X 14 S.GripTorx-Truss M/S M5 X 14 S.Grip
-
10r417224169 Clutch SpringClutch Spring
-
10s417224003 Seat SpringSeat Spring
-
10t293370116 Circlip. Includes 10t to 10yCirclip. Includes 10t to 10y
-
10u417224274 Ramp 974Ramp 974
-
10v417224113 Cam MoldedCam Molded
-
10w417224086 Lever-RightLever-Right
-
10x417224114 Lever LeftLever Left
-
10y417224220 PivotPivot
-
10z417223631 Axle - 8mmAxle - 8mm
-
10aa250000763 Torx-Truss M/S M5 X 14 S.GripTorx-Truss M/S M5 X 14 S.Grip
-
10ab417224201 Drive CushionDrive Cushion
-
10ac250000757 Screw-Torx Button Head M8 X 25 S.GrScrew-Torx Button Head M8 X 25 S.Gr
-
20250200144 Conical Spring Washer M14Conical Spring Washer M14
-
30417300522 Pulley Drive Bolt M14 X 144Pulley Drive Bolt M14 X 144
-
40516007667 Warning DecalWarning Decal
-
100417127556 Pulley-drivenPulley-driven
-
105417127300 BushingBushing
-
120503183100 WasherWasher
-
130207584544 Hex. Flanged Screw M8 X 45, Scotch GripHex. Flanged Screw M8 X 45, Scotch Grip
-
140504149100 SpacerSpacer
-
150417300252 Spacer. Not ShownSpacer. Not Shown
-
160417300265 SpacerSpacer
-
180417300399 SpacerSpacer
-
200417300534 Drive BeltDrive Belt
-
300417300479 Belt GuardBelt Guard
-
330417300525 Front Retaining HookFront Retaining Hook
-
340390909200 Avex RivetAvex Rivet
-
360417300565 CVT Air DuctCVT Air Duct
-
370293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
450417300546 SupportSupport
-
460207561044 Flanged Screw M6 X 10, Scotch GripFlanged Screw M6 X 10, Scotch Grip
-
500417300568 Belt Guard Bracket SupportBelt Guard Bracket Support
-
520114045200 Hair PinHair Pin
-
550417300506 Stopper. Not ShownStopper. Not Shown
-
610417224222 Pivot 38mm. Not ShownPivot 38mm. Not Shown
-
620417224366 Weight. Not ShownWeight. Not Shown
-
630417224060 Spacer. Not ShownSpacer. Not Shown
-
650417127625 Release Spring. Not ShownRelease Spring. Not Shown
