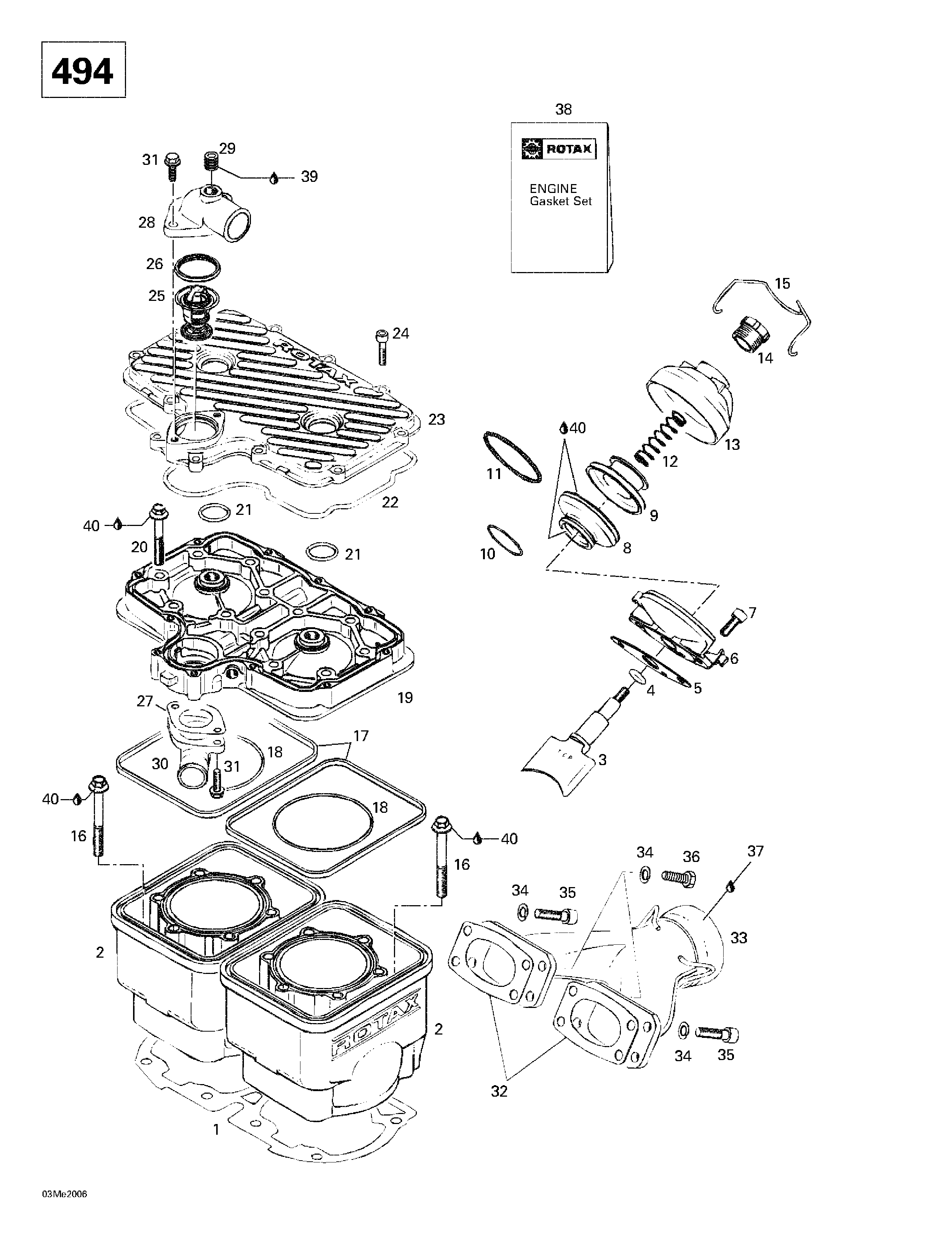

01- Cylinder, Exhaust Manifold для BRP Ski-Doo Touring 500 LC - 2000
-
№АртикулНазвание
-
1420931361 Gasket Double 0.4 mmGasket Double 0.4 mm
-
2420923617 Cylinder With Sleeve Ass'yCylinder With Sleeve Ass'y
-
3420854300 Exhaust ValveExhaust Valve
-
4420430110 O-RingO-Ring
-
5420250239 GasketGasket
-
6420854265 Valve Rod HousingValve Rod Housing
-
7420241236 Socket Head Screw M6 x 16Socket Head Screw M6 x 16
-
8290260723 BellowsBellows
-
9420854447 Exhaust ValveExhaust Valve
-
10420838253 Spring ClampSpring Clamp
-
11290239043 Hose SpringHose Spring
-
12420239944 SpringSpring
-
13420911551 Valve CoverValve Cover
-
14420241220 Adjuster ScrewAdjuster Screw
-
15420838082 Spring ClipSpring Clip
-
16420841996 Screw M8 x 68.5Screw M8 x 68.5
-
17420850040 Rubber RingRubber Ring
-
18420831792 O-RingO-Ring
-
19420923167 Cylinder Head (Silver)Cylinder Head (Silver)
-
20420240326 Screw M8 x 53.5Screw M8 x 53.5
-
21420430782 O-RingO-Ring
-
22420931260 O-RingO-Ring
-
23420923623 Cylinder Head Cover (Silver)Cylinder Head Cover (Silver)
-
24205062544 Socket Head Screw M6 x 25Socket Head Screw M6 x 25
-
25414834100 Thermostat 42 DegThermostat 42 Deg
-
26420931270 Sealing RingSealing Ring
-
27420850336 GasketGasket
-
28420922061 Bent Outlet SocketBent Outlet Socket
-
29420240480 Plug Screw 1/8-27 NPTPlug Screw 1/8-27 NPT
-
30420922480 Bent Outlet SocketBent Outlet Socket
-
31420941250 Tapping Screw M6 x 20Tapping Screw M6 x 20
-
32420850535 GasketGasket
-
33420973228 Exhaust ManifoldExhaust Manifold
-
34234181401 Lock Washer 8 mmLock Washer 8 mm
-
35205083044 Socket Head Screw M8 x 30Socket Head Screw M8 x 30
-
36207182544 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
37413710300 Sealant, Loctite 17914, 80 mlSealant, Loctite 17914, 80 ml
-
38420994227 Gasket SetGasket Set
-
39413702700 Loctite 515, 50 mlLoctite 515, 50 ml
-
40413707000 Molykote 111Molykote 111
