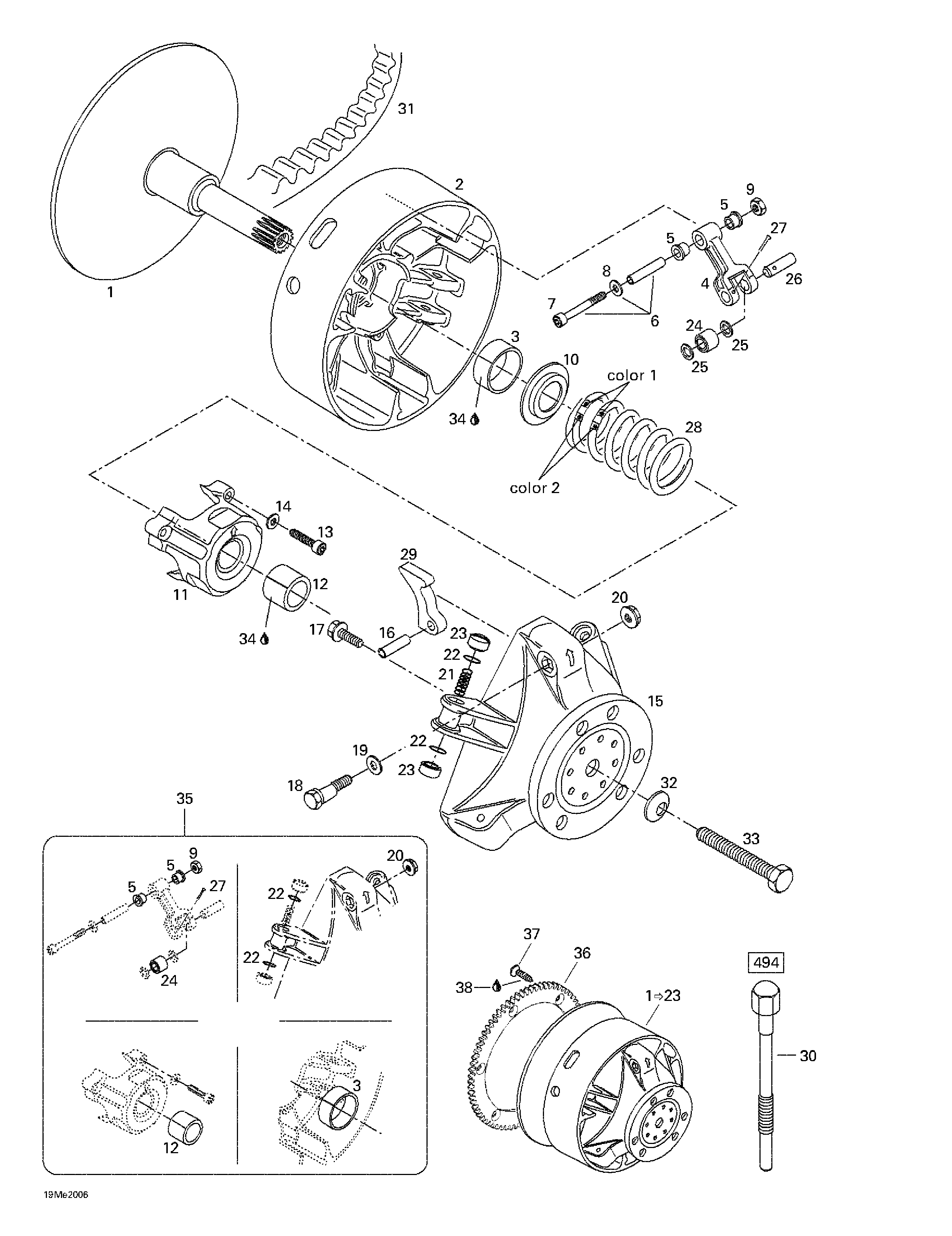

05- Drive Pulley для BRP Ski-Doo Touring 500 LC - 2000
-
№АртикулНазвание
-
1417222283 Drive Pulley Ass'y. Includes 1 - 23.Drive Pulley Ass'y. Includes 1 - 23.
-
1417222160 Fixe FlangeFixe Flange
-
2417222049 Slinding Flange. Includes 2 - 3.Slinding Flange. Includes 2 - 3.
-
3417004201 Bushing Slinding FlangeBushing Slinding Flange
-
4417003801 Lever Ass'y. Includes 4 - 5.Lever Ass'y. Includes 4 - 5.
-
5417004305 BushingBushing
-
6417004800 Screw Ass'y. Includes 6 - 8.Screw Ass'y. Includes 6 - 8.
-
7222965065 Socket Head Screw M6 x 50Socket Head Screw M6 x 50
-
8234061410 Flat Washer 6 mmFlat Washer 6 mm
-
9232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
10417222044 Spring SeatSpring Seat
-
11417222157 Spring Cover Ass'y. Includes 11 - 12.Spring Cover Ass'y. Includes 11 - 12.
-
12417004501 Bushing Spring CoverBushing Spring Cover
-
13205064086 Socket Head Screw M6 x 40Socket Head Screw M6 x 40
-
14420245370 Washer 6 mmWasher 6 mm
-
15417222081 Governor Cup Ass'yGovernor Cup Ass'y
-
16732804009 Rolled Pin M8 x 24Rolled Pin M8 x 24
-
17210361890 Hex. Forming Screw M6 x 18Hex. Forming Screw M6 x 18
-
18417005500 Calibration ScrewCalibration Screw
-
19417005600 WasherWasher
-
20233061414 Hex. Flange Nut M6Hex. Flange Nut M6
-
21417005700 SpringSpring
-
22732401030 O-RingO-Ring
-
23417005800 Slider ShoeSlider Shoe
-
24417003900 Roller Ass'yRoller Ass'y
-
25417004302 Stopper WasherStopper Washer
-
26417004309 PinPin
-
27732958001 Cotter PinCotter Pin
-
28414817700 Spring (Blue/Green)Spring (Blue/Green)
-
29417005228 Ramp (228)Ramp (228)
-
30529022400 Puller Inner HalfPuller Inner Half
-
31414860700 Drive BeltDrive Belt
-
32234271414 Conical Spring WasherConical Spring Washer
-
33417120000 ScrewScrew
-
34413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
35417006100 Clutch Repair KitClutch Repair Kit
-
36417009400 Ring Gear (86 TooTh)Ring Gear (86 TooTh)
-
37236281684 Screw M8 x 16Screw M8 x 16
-
38293800005 Loctite 271, 10 mlLoctite 271, 10 ml
