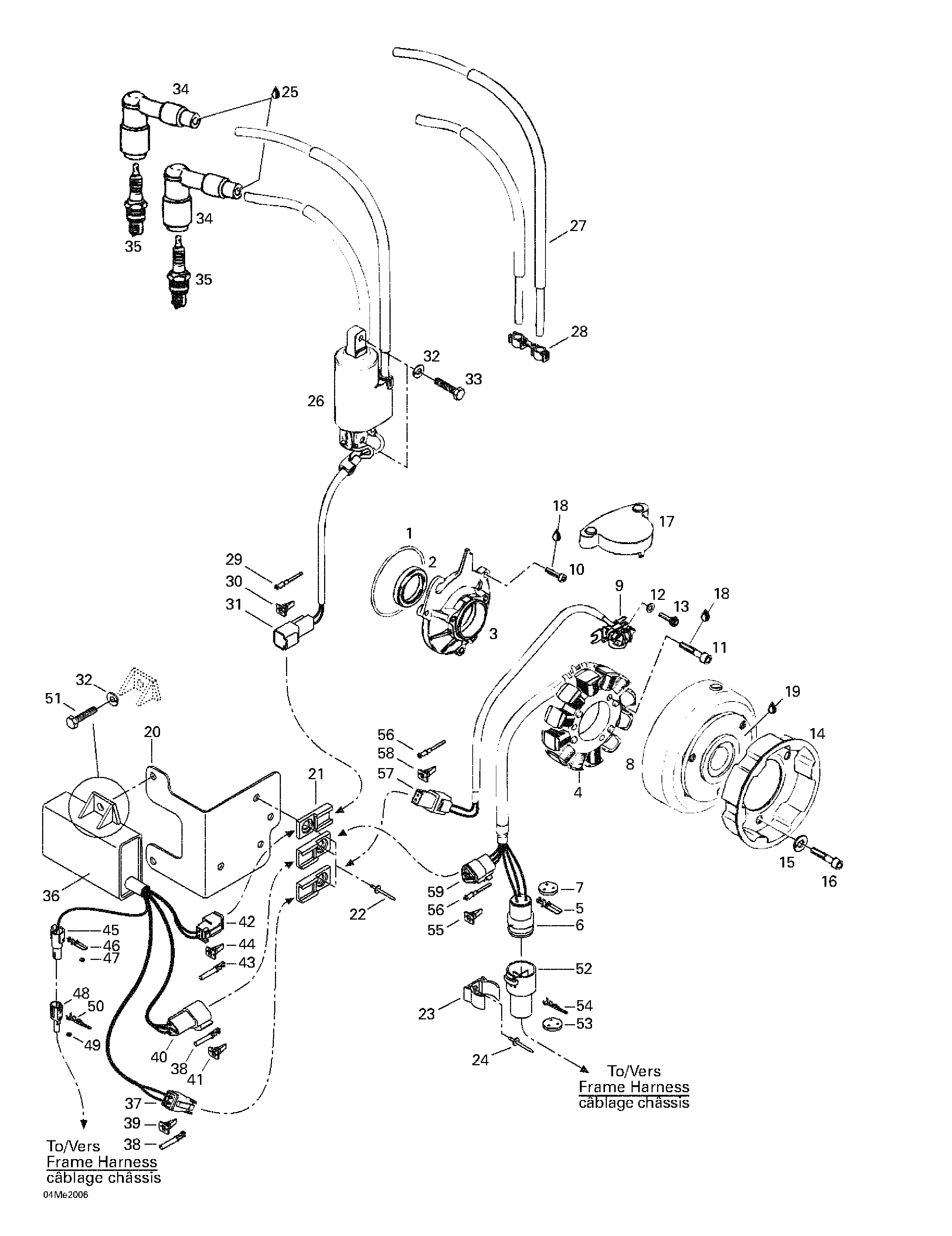

03- Magneto (12V, 220W) для BRP Ski-Doo Touring 500 LC - 2000

№

Артикул

Название
1

420850430 O-Ring

O-Ring

1 150 ₽
2

420930695 Seal-Oil

Seal-Oil

3 180 ₽
3

420810265 Armature Plate

Armature Plate

0 ₽
4

410922905 Stator Plate Ass'y. Includes 4 - 7.

Stator Plate Ass'y. Includes 4 - 7.

43 010 ₽
5

409011900 Female Terminal

Female Terminal

660 ₽
6

409208200 Female Connector Housing (3 circuits)

Female Connector Housing (3 circuits)

1 490 ₽
7

409208500 Seal (3 Circuits)

Seal (3 Circuits)

890 ₽
8

410922906 Magneto Flywheel

Magneto Flywheel

0 ₽
9

420965642 Pick Up Ass'y

Pick Up Ass'y

7 090 ₽
10

420941540 Socket Head Screw M5 x 20

Socket Head Screw M5 x 20

200 ₽
11

420840886 Socket Head Screw M6 x 30

Socket Head Screw M6 x 30

160 ₽
12

420827800 Washer 5.5 mm

Washer 5.5 mm

330 ₽
13

420840511 Socket Head Screw M5 x 16

Socket Head Screw M5 x 16

670 ₽
14

420852416 Starting Pulley

Starting Pulley

0 ₽
15

420945752 Lock Washer 8 mm

Lock Washer 8 mm

420 ₽
16

420841520 Socket Head Screw M8 x 12

Socket Head Screw M8 x 12

150 ₽
17

420810700 Pick-Up Cover

Pick-Up Cover

1 300 ₽
18

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml

2 760 ₽
19

413711400 Loctite 648, 10 ml

Loctite 648, 10 ml

3 420 ₽
20

515175107 Cable Support

Cable Support

0 ₽
21

270000141 Clip

Clip

990 ₽
22

390906400 Pop Rivet 3/16

Pop Rivet 3/16

0 ₽
23

415089700 Clip

Clip

0 ₽
24

390402500 Pop Rivet 1/8

Pop Rivet 1/8

150 ₽
25

293550004 Dielectric Grease, 150 g

Dielectric Grease, 150 g

5 900 ₽
26

415085400 Ignition Coil. Includes 26 - 31.

Ignition Coil. Includes 26 - 31.

8 110 ₽
27

278001268 Spark Plug Wire

Spark Plug Wire

0 ₽
28

410914600 Plastic Clip (PQG 5)

Plastic Clip (PQG 5)

1 980 ₽
29

278000631 Male Terminal (16/18 Ga.)

Male Terminal (16/18 Ga.)

420 ₽
30

409207500 Male Lock (2 Circuits)

Male Lock (2 Circuits)

310 ₽
31

409206900 Male Connector Housing (2 Circuits)

Male Connector Housing (2 Circuits)

910 ₽
32

234161471 Lock Washer 6 mm

Lock Washer 6 mm

190 ₽
33

207162044 Hex. Screw M6 x 20

Hex. Screw M6 x 20

280 ₽
34

278000237 Spark Plug Protector

Spark Plug Protector

7 700 ₽
35

414961100 Spark Plug (NGK BR9ES)

Spark Plug (NGK BR9ES)

270 ₽
36

512058927 Ignition Module. Includes 36 - 47.

Ignition Module. Includes 36 - 47.

0 ₽
37

409206900 Male Connector Housing (2 Circuits)

Male Connector Housing (2 Circuits)

910 ₽
38

278000631 Male Terminal (16/18 Ga.)

Male Terminal (16/18 Ga.)

420 ₽
39

409207500 Male Lock (2 Circuits)

Male Lock (2 Circuits)

310 ₽
40

409207000 Male Connector Housing (3 Circuits)

Male Connector Housing (3 Circuits)

0 ₽
41

409207600 Male Lock (3 Circuits)

Male Lock (3 Circuits)

310 ₽
42

409207300 Female Connector Housing (2 Circuits)

Female Connector Housing (2 Circuits)

910 ₽
43

278000632 Female Terminal (16 / 18 Ga.)

Female Terminal (16 / 18 Ga.)

200 ₽
44

409207100 Female Lock (2 Circuits)

Female Lock (2 Circuits)

310 ₽
46

409012100 Female Terminal

Female Terminal

1 590 ₽
47

409012300 Seal

Seal

410 ₽
48

409208800 Male Connector Housing (1 Circuit)

Male Connector Housing (1 Circuit)

0 ₽
49

409012300 Seal

Seal

410 ₽
50

409011300 Male Terminal

Male Terminal

1 380 ₽
51

207161644 Hex. Screw M6 x 16

Hex. Screw M6 x 16

70 ₽
52

409207900 Male Connector Housing (3 Circuits)

Male Connector Housing (3 Circuits)

1 180 ₽
53

409208500 Seal (3 Circuits)

Seal (3 Circuits)

890 ₽
54

409011100 Male Terminal

Male Terminal

660 ₽
55

409207200 (Female) Secondary Lock (3 Circuits) (Deutsch)

(Female) Secondary Lock (3 Circuits) (Deutsch)

420 ₽
56

278000632 Female Terminal (16 / 18 Ga.)

Female Terminal (16 / 18 Ga.)

200 ₽
57

409207300 Female Connector Housing (2 Circuits)

Female Connector Housing (2 Circuits)

910 ₽
58

409207100 Female Lock (2 Circuits)

Female Lock (2 Circuits)

310 ₽
59

409207400 Female Connector Housing (3 Circuits)

Female Connector Housing (3 Circuits)

990 ₽
