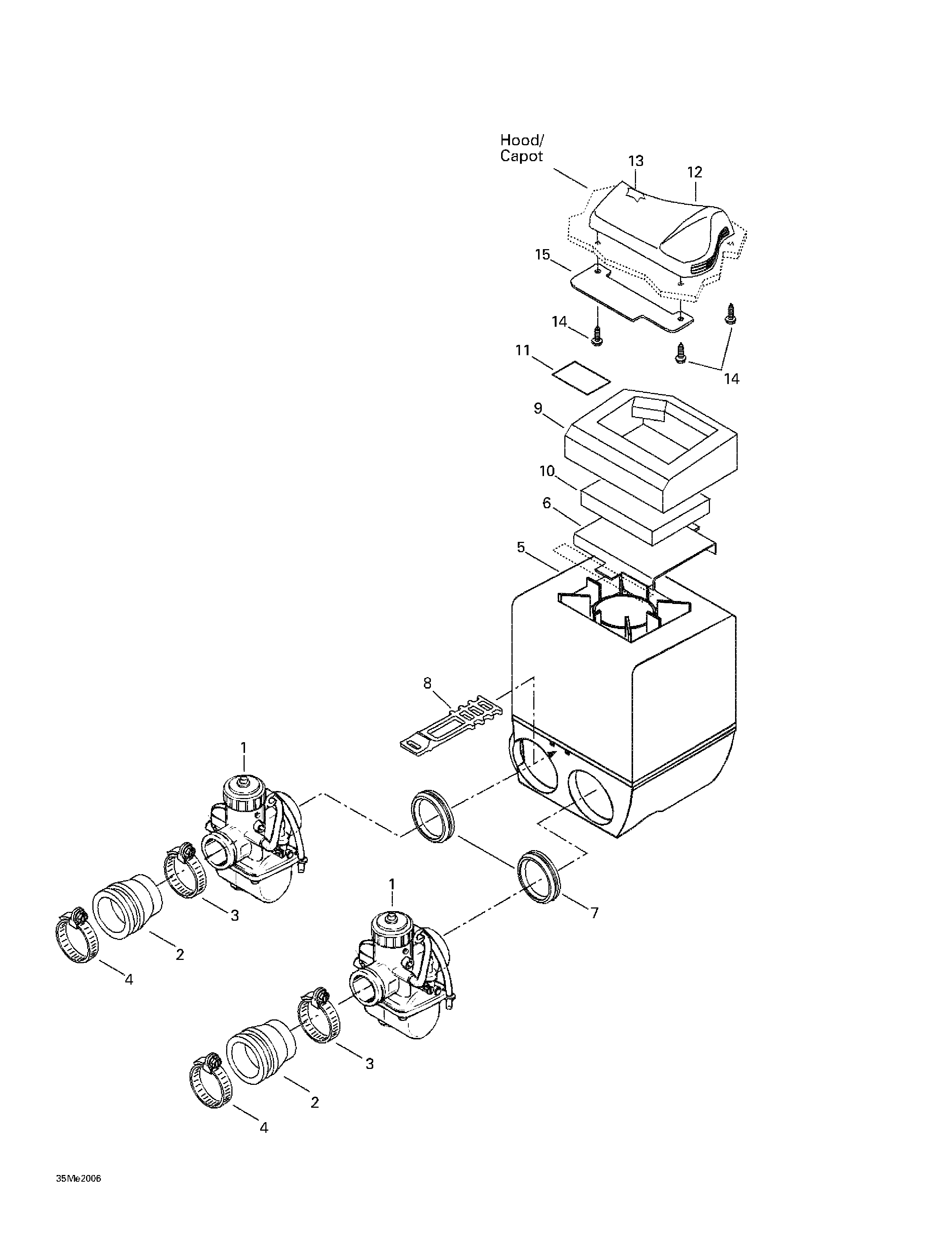

02- Air Intake System для BRP Ski-Doo Touring 500 LC - 2000
-
№АртикулНазвание
-
1403138608 Carburetor VM 38-431 (PTO)Carburetor VM 38-431 (PTO)
-
403138609 Carburetor VM 38-432 (MAG)Carburetor VM 38-432 (MAG)
-
2570048100 Adaptor Caburetor (38 mm)Adaptor Caburetor (38 mm)
-
3415038400 CollarCollar
-
4414532800 CollarCollar
-
5508000026 Air Intake Ass'y. Includes 5 - 11.Air Intake Ass'y. Includes 5 - 11.
-
6517283900 Grill IntakeGrill Intake
-
7570048900 Intake Adaptor VM 38Intake Adaptor VM 38
-
8570069700 LatchLatch
-
9415105900 Exterior FoamExterior Foam
-
10415014800 Air FilterAir Filter
-
11516000130 Label CautionLabel Caution
-
12572077900 Cover IntakeCover Intake
-
13414972600 Air FilterAir Filter
-
14243141640 Hex. Screw M4.8 x 16Hex. Screw M4.8 x 16
-
15517298800 DeflectorDeflector
