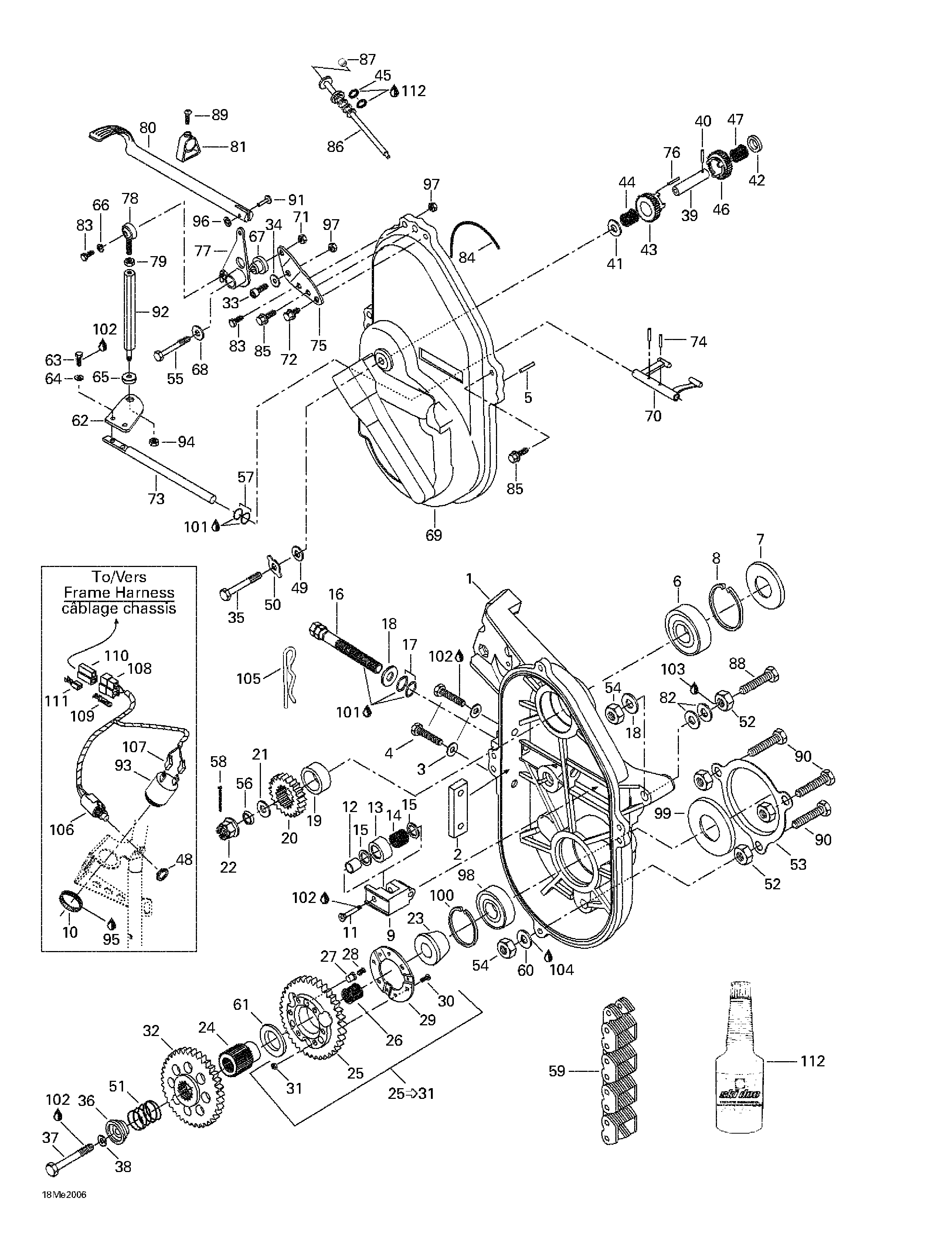

05- Transmission для BRP Ski-Doo Touring 500 LC - 2000
-
№АртикулНазвание
-
1504151777 ChaincaseChaincase
-
2504082400 Chain SliderChain Slider
-
3732900040 Flat WasherFlat Washer
-
4207161644 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
5732620001 Cylinder PinCylinder Pin
-
6405404400 Ball Bearing 6205Ball Bearing 6205
-
7414882800 SealSeal
-
8371901700 Retaining RingRetaining Ring
-
9504081000 Chain TensionerChain Tensioner
-
10414805101 Plastic NutPlastic Nut
-
11732601144 ScrewScrew
-
12504080200 BushingBushing
-
13414531300 RollerRoller
-
14405403000 Needle BearingNeedle Bearing
-
15504080300 WasherWasher
-
16732601311 Tensioner Adjustment ScrewTensioner Adjustment Screw
-
17414484400 O-RingO-Ring
-
18234001410 Flat Washer 10 mmFlat Washer 10 mm
-
19504093400 ShimShim
-
20504078400 Sprocket (23 Tooth-Narrow)Sprocket (23 Tooth-Narrow)
-
21504087100 WasherWasher
-
22232210414 Castellated Nut M16Castellated Nut M16
-
23504076300 Retaining RingRetaining Ring
-
24504097700 Coupling ShaftCoupling Shaft
-
25581095900 Sprocket Ass'y (44 Tooth-Narrow). Includes 25 - 31.Sprocket Ass'y (44 Tooth-Narrow). Includes 25 - 31.
-
25504088200 Sprocket (44 Tooth-Narrow)Sprocket (44 Tooth-Narrow)
-
26414772600 Needle BearingNeedle Bearing
-
27504076800 Drive PinDrive Pin
-
28414772700 SpringSpring
-
29504076100 Retaining RingRetaining Ring
-
30207152044 Hex. Screw M5 x 20Hex. Screw M5 x 20
-
31233551416 Lock Spring Nut M5Lock Spring Nut M5
-
32504096800 Gear Sliding (56 Tooth)Gear Sliding (56 Tooth)
-
33205061644 Socket Head Screw M6 x 16Socket Head Screw M6 x 16
-
34234061410 Flat Washer 6 mmFlat Washer 6 mm
-
35207089044 Hex. Screw M8 x 90Hex. Screw M8 x 90
-
36504099100 CapCap
-
37207005044 Hex Screw M10 x 50Hex Screw M10 x 50
-
38234100602 Lock Washer 10 mmLock Washer 10 mm
-
39504083100 Reverse ShaftReverse Shaft
-
40732804003 Spring PinSpring Pin
-
41504077300 Trust Washer (Spacer)Trust Washer (Spacer)
-
42504078700 Trust RingTrust Ring
-
43581122200 Sprocket Ass'y (19 Tooth). Includes 43 - 44.Sprocket Ass'y (19 Tooth). Includes 43 - 44.
-
44414805000 Needle BearingNeedle Bearing
-
45414969400 O-RingO-Ring
-
46581098200 Sprocket Ass'y (19. Includes 46 - 47. .Sprocket Ass'y (19. Includes 46 - 47. .
-
47414773100 Needle BearingNeedle Bearing
-
48732610075 NutNut
-
49504082900 WasherWasher
-
50504087700 Lock TabLock Tab
-
51504099200 Release SpringRelease Spring
-
52504083800 SpacerSpacer
-
53501022100 ProtectorProtector
-
54233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
55207084544 Hex. Screw M8 x 45Hex. Screw M8 x 45
-
56417000900 Spring WasherSpring Washer
-
57414773200 O-RingO-Ring
-
58371801300 Cotter PinCotter Pin
-
59504151883 Drive Chain (72. .Drive Chain (72. .
-
60234001460 Copper Flat Washer 10 mmCopper Flat Washer 10 mm
-
61504094300 WasherWasher
-
62504094602 PlatePlate
-
63207151444 Hex. Screw M5 x 14Hex. Screw M5 x 14
-
64234151401 Lock Washer 5 mmLock Washer 5 mm
-
65570045700 Rubber WasherRubber Washer
-
66234161471 Lock Washer 6 mmLock Washer 6 mm
-
67414927600 Flange BushingFlange Bushing
-
68224081201 Flat WasherFlat Washer
-
69504098500 Cover ChaincaseCover Chaincase
-
70504075800 ForkFork
-
71232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
72210261680 Hex. Forming Screw M6 x 16Hex. Forming Screw M6 x 16
-
73504142900 ShaftShaft
-
74414772500 Spring Pin M5 x 20Spring Pin M5 x 20
-
75504095000 Support-PivotSupport-Pivot
-
76570048600 Alignement RodAlignement Rod
-
77504094900 PlatePlate
-
78414773400 Ball JointBall Joint
-
79232061414 Hex. Nut M6Hex. Nut M6
-
80570044600 GripGrip
-
81572071100 Stopper-SwitchStopper-Switch
-
82504073700 ShimShim
-
83207162044 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
84414362300 SealSeal
-
85210263080 Hex. Forming Screw M6 x 30Hex. Forming Screw M6 x 30
-
86572092700 Filler Cap. Includes 86 - 87.Filler Cap. Includes 86 - 87.
-
87206540490 Set Socket Screw M4Set Socket Screw M4
-
88207107044 Hex. Screw M10 x 70Hex. Screw M10 x 70
-
89364901600 ScrewScrew
-
90207104544 Hex. Screw M10 x 45Hex. Screw M10 x 45
-
91390008900 RivetRivet
-
92504094700 Tie RodTie Rod
-
93414805102 HornHorn
-
94232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
95296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
96389804300 Push NutPush Nut
-
97232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
98405403900 Ball Bearing 6206Ball Bearing 6206
-
99581056500 Oil SealOil Seal
-
100414784900 Circlip-innerCirclip-inner
-
101219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
102293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
103293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
104413702700 Loctite 515, 50 mlLoctite 515, 50 ml
-
105414575600 Hair PinHair Pin
-
106515175152 Reverse Knob. Includes 106 - 111.Reverse Knob. Includes 106 - 111.
-
107409010300 Female TerminalFemale Terminal
-
108409204500 Male Connector Housing (2 circuits)Male Connector Housing (2 circuits)
-
109409206100 Male TerminalMale Terminal
-
110409204600 Female Connector Housing (2 circuits)Female Connector Housing (2 circuits)
-
111561503100 Female TerminalFemale Terminal
-
112413803300 Synthetic Chaincase Oil,. 12 x 355 mlSynthetic Chaincase Oil,. 12 x 355 ml
