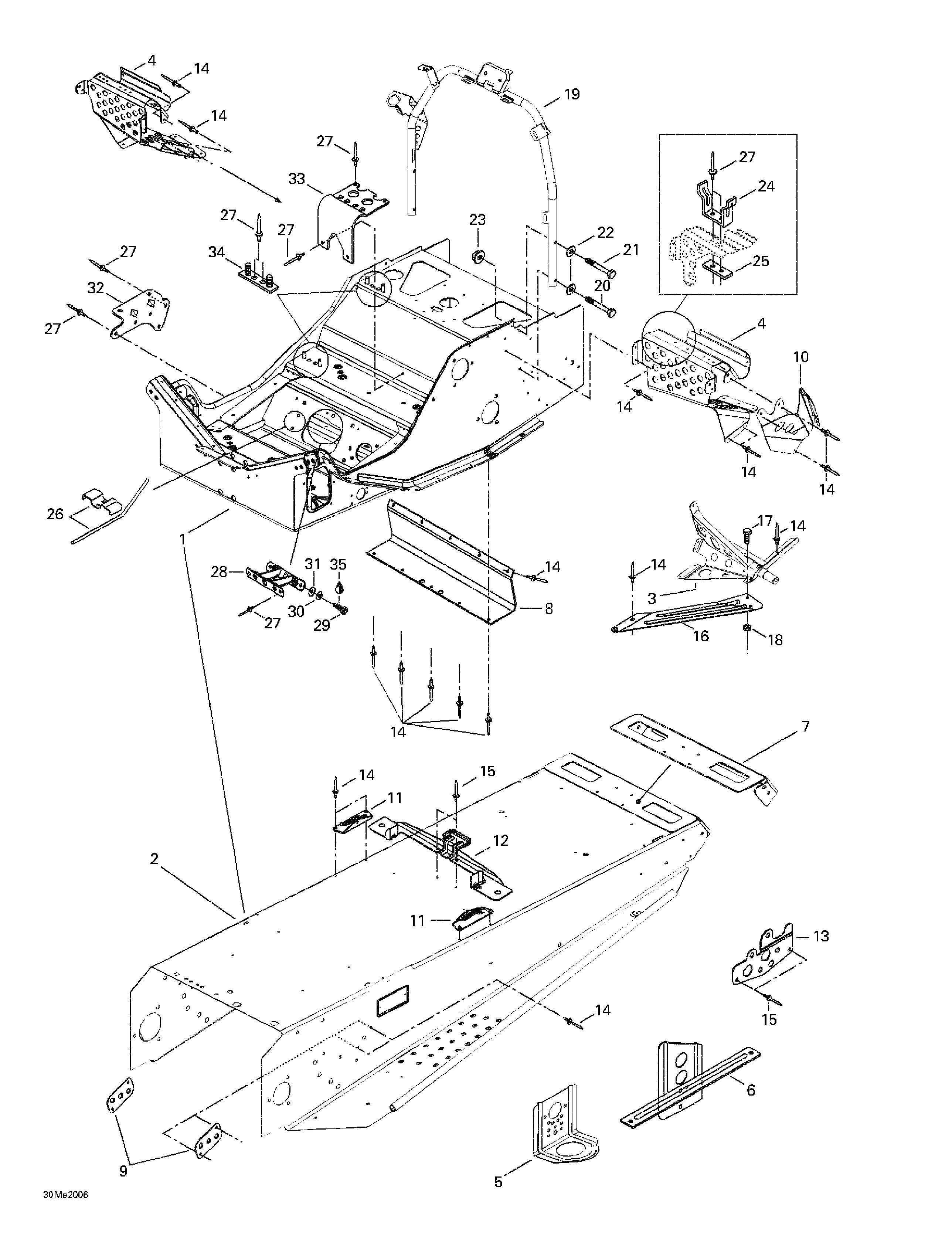

09- Frame And Accessories для BRP Ski-Doo Touring 500 LC - 2000
-
№АртикулНазвание
-
1518322082 Frame Ass'y. Includes 1 - 18. (Radiator and Radiator Protector Included)Frame Ass'y. Includes 1 - 18. (Radiator and Radiator Protector Included)
-
3518320506 R.H. Footrest SupportR.H. Footrest Support
-
518320507 L.H. Footrest SupportL.H. Footrest Support
-
4518318933 R.H. Front FootrestR.H. Front Footrest
-
518318934 L.H. Front FootrestL.H. Front Footrest
-
5518312495 Front BracketFront Bracket
-
6518318903 R.H. Rear BracketR.H. Rear Bracket
-
518318904 L.H. Rear BracketL.H. Rear Bracket
-
7518321302 Rear CapRear Cap
-
8518321867 DeflectorDeflector
-
9518201321 Reinforcement PlateReinforcement Plate
-
10518308715 R.H. Upper PlateR.H. Upper Plate
-
518308714 L.H. Upper PlateL.H. Upper Plate
-
11517266900 R.H. Tank BracketR.H. Tank Bracket
-
517267000 L.H. Tank BracketL.H. Tank Bracket
-
12518317506 Seat BracketSeat Bracket
-
13518321882 R.H. Rear BracketR.H. Rear Bracket
-
518321883 L.H. Rear BracketL.H. Rear Bracket
-
14390402200 Pop Rivet 3/16Pop Rivet 3/16
-
15390402400 Pop Rivet 3/16Pop Rivet 3/16
-
16518321958 R.H. Reinforcement PlateR.H. Reinforcement Plate
-
518321959 L.H. Reinforcement PlateL.H. Reinforcement Plate
-
17207151644 Hex. Screw M5 x 16Hex. Screw M5 x 16
-
18233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
19518321428 Handle Steering SupportHandle Steering Support
-
20207064044 Hex. Screw M6 x 40Hex. Screw M6 x 40
-
21207063544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
22234061410 Flat Washer 6 mmFlat Washer 6 mm
-
23233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
24518202100 Pulley Guard BracketPulley Guard Bracket
-
25518207500 ReinforcementReinforcement
-
26518313700 Rope GuideRope Guide
-
27390402200 Pop Rivet 3/16Pop Rivet 3/16
-
28518304741 Reinforcement PlateReinforcement Plate
-
29207182044 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
30234181401 Lock Washer 8 mmLock Washer 8 mm
-
31224081201 Flat WasherFlat Washer
-
32518206300 Muffler SupportMuffler Support
-
33518310400 Air Silencer SupportAir Silencer Support
-
34518315300 Support PlateSupport Plate
-
35293800005 Loctite 271, 10 mlLoctite 271, 10 ml
