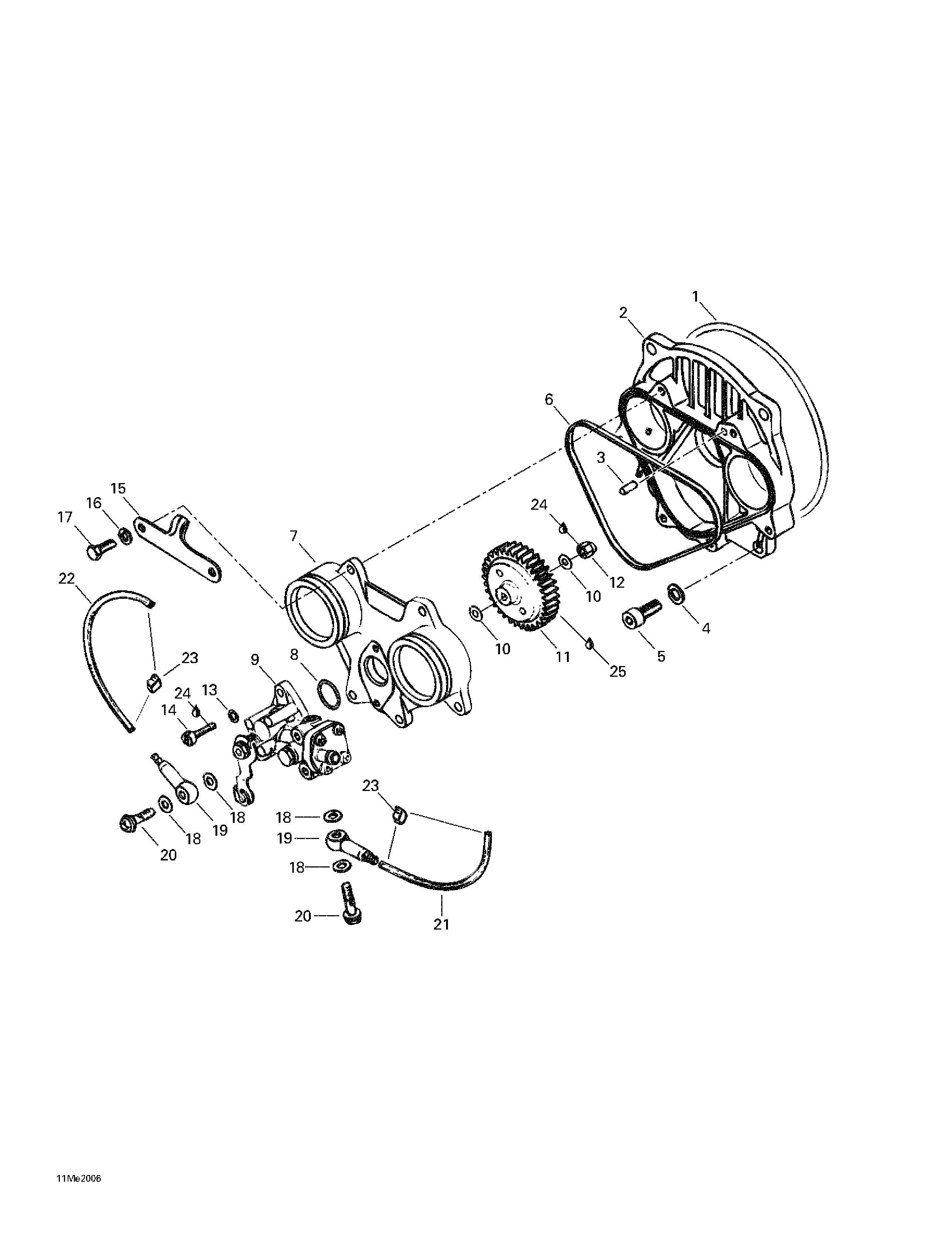

02- Oil Injection System для BRP Ski-Doo Touring 500 LC - 2000
-
№АртикулНазвание
-
1420831360 O-RingO-Ring
-
2420810486 Rotary Valve Cover Ass'y. Includes 2 - 3.Rotary Valve Cover Ass'y. Includes 2 - 3.
-
3420929650 Drive PinDrive Pin
-
4420945752 Lock Washer 8 mmLock Washer 8 mm
-
5205082044 Socket Head Screw M8 x 20Socket Head Screw M8 x 20
-
6420831707 Rubber RingRubber Ring
-
7420810490 Oil Pump Mounting FlangedOil Pump Mounting Flanged
-
8420230370 O-RingO-Ring
-
9420887930 Oil Pump Ass'yOil Pump Ass'y
-
10420927945 Flat Washer 6.2 mmFlat Washer 6.2 mm
-
11420935945 Oil Pump Gear 41 TeethOil Pump Gear 41 Teeth
-
12232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
13420945750 Lock Washer 5 mmLock Washer 5 mm
-
14420240761 Cylindrical Slotted Screw M5 x 16Cylindrical Slotted Screw M5 x 16
-
15420851340 Plate (Intake Silencer)Plate (Intake Silencer)
-
16420945751 Lock Washer 6 mmLock Washer 6 mm
-
17207162044 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
18404146600 Oil Banjo GasketOil Banjo Gasket
-
19420956010 Valve Ass'yValve Ass'y
-
20404146800 Banjo Bolt M6 x 16Banjo Bolt M6 x 16
-
21414413800 Oil Line (MAG Side)Oil Line (MAG Side)
-
22414413800 Oil Line (PTO Side)Oil Line (PTO Side)
-
23420853840 ClampClamp
-
24293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
25413707000 Molykote 111Molykote 111
