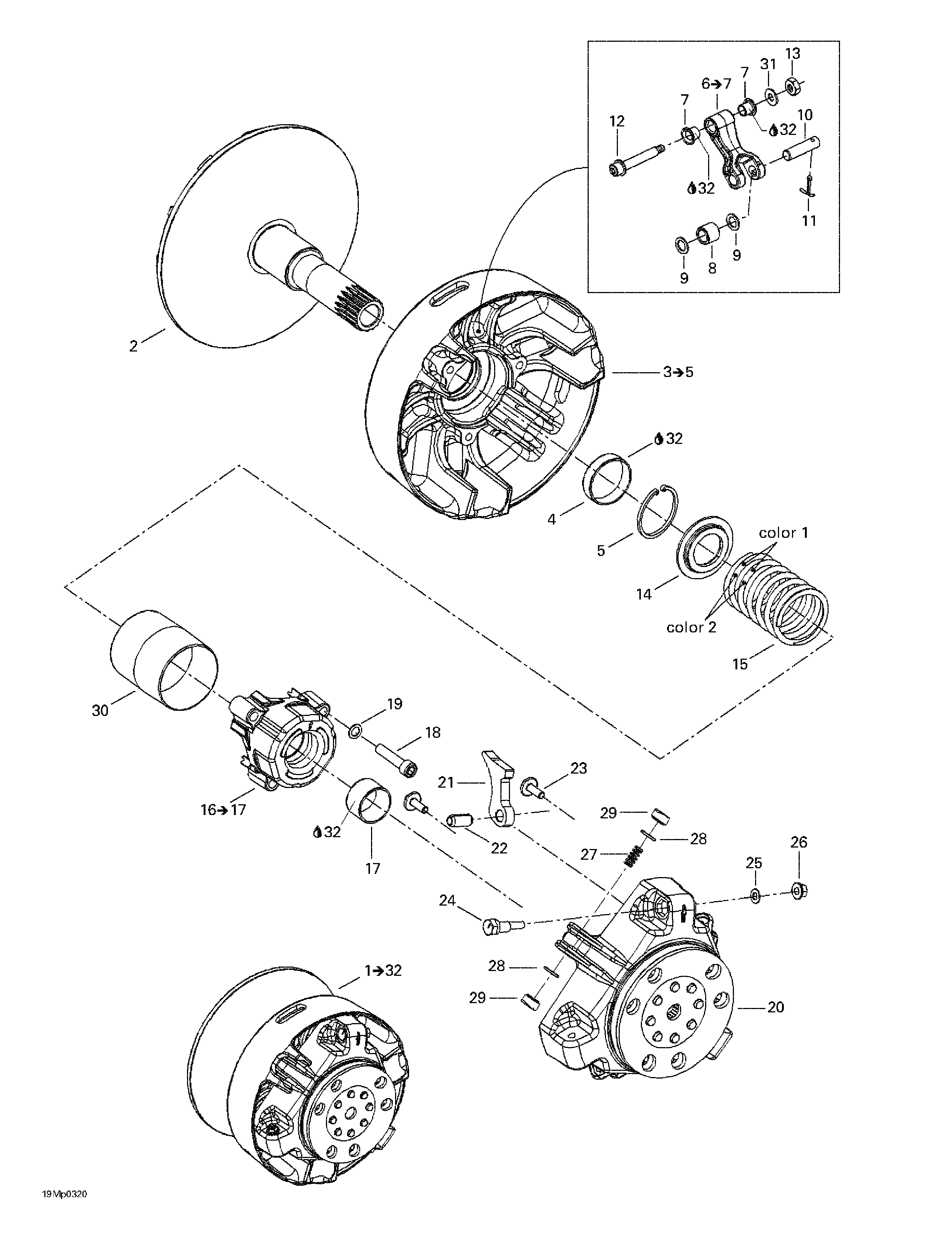

05- Drive Pulley для BRP Ski-Doo MX Z Blair Morgan Special Edition - 2003
-
№АртикулНазвание
-
2417222167 Fixed flangeFixed flange
-
3417222171 Sliding flange ass'y. Includes 3 - 5.Sliding flange ass'y. Includes 3 - 5.
-
4417006900 BushingBushing
-
5293370037 CirclipCirclip
-
6417222306 Lever ass'y. Includes 6 - 7.Lever ass'y. Includes 6 - 7.
-
7417004305 BushingBushing
-
8417003900 Roller ass'yRoller ass'y
-
9417004302 Stopper washerStopper washer
-
10417004308 PinPin
-
11732958001 Cotter pinCotter pin
-
12417222028 Screw ass'yScrew ass'y
-
13232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
14417222312 Spring seatSpring seat
-
15415015300 Spring (violet/yellow)Spring (violet/yellow)
-
16417007500 Spring cover ass'y. Includes 16 - 17.Spring cover ass'y. Includes 16 - 17.
-
17417009204 BushingBushing
-
18205084044 Socket Head Screw M8 x 40Socket Head Screw M8 x 40
-
19250200009 Lock washer 8 mmLock washer 8 mm
-
20417222213 Governor cupGovernor cup
-
21417222546 Ramp 414Ramp 414
-
22250400009 Rolled pin M10 x 22Rolled pin M10 x 22
-
23250000059 Hex. flanged screw M6 x 18Hex. flanged screw M6 x 18
-
24417005500 Calibration screwCalibration screw
-
25417005600 WasherWasher
-
26233061414 Hex. flanged nut M6Hex. flanged nut M6
-
27417005700 SpringSpring
-
28732401030 O-ringO-ring
-
29417222362 Slider shoeSlider shoe
-
30417009205 GuardGuard
-
31234061410 Flat washer 6 mmFlat washer 6 mm
-
32413703100 Loctite 609, 10 mlLoctite 609, 10 ml
