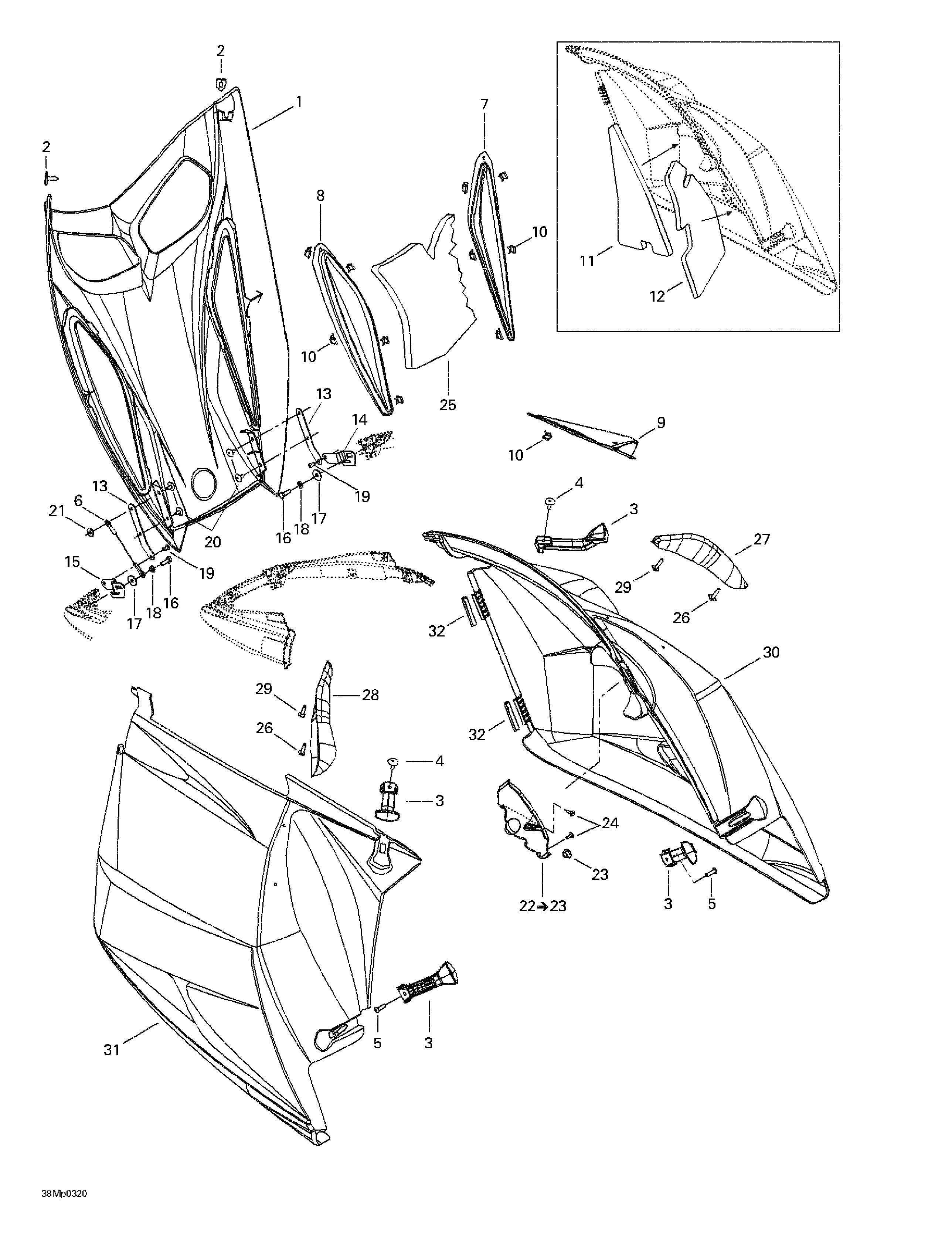

09- Hood для BRP Ski-Doo MX Z Blair Morgan Special Edition - 2003
-
№АртикулНазвание
-
1517302788 Hood (BLACK (B-160))Hood (BLACK (B-160))
-
2517302543 PinPin
-
3517302448 Panel latchPanel latch
-
4293150087 Pop rivet 3/16''Pop rivet 3/16''
-
6517302673 Retainer cableRetainer cable
-
7517302936 R.H. hood grill (BLACK (B-160))R.H. hood grill (BLACK (B-160))
-
8517302937 L.H. hood grill (BLACK (B-160))L.H. hood grill (BLACK (B-160))
-
9517302938 R.H. panel grill (BLACK (B-160))R.H. panel grill (BLACK (B-160))
-
10517302789 ClipClip
-
11517302512 Front foamFront foam
-
12517302513 Rear foamRear foam
-
13517302544 Upper half-hingeUpper half-hinge
-
14517302444 R.H. lower half-hingeR.H. lower half-hinge
-
15517302445 L.H. lower half-hingeL.H. lower half-hinge
-
16207161844 Hex. screw M6 x 18Hex. screw M6 x 18
-
17224061121 Flat washerFlat washer
-
18234161471 Lock washer 6 mmLock washer 6 mm
-
19390909200 Rivet AvexRivet Avex
-
20390406500 Pop rivet 3/16''Pop rivet 3/16''
-
21517225900 Flat washerFlat washer
-
22517302552 R.H. console. Includes 22 - 23.R.H. console. Includes 22 - 23.
-
23275500241 PlugPlug
-
24241151640 Hex. flanged screw K50 x 16Hex. flanged screw K50 x 16
-
25517302557 FoamFoam
-
26250000084 Phillips screw K40 x 16Phillips screw K40 x 16
-
27517302800 R.H. air deflectorR.H. air deflector
-
28517302801 L.H. air deflectorL.H. air deflector
-
29250000101 Screw M4 x 25Screw M4 x 25
-
30517302925 R.H. panel (YELLOW (B-190))R.H. panel (YELLOW (B-190))
-
31517302805 L.H. panel (YELLOW (B-190))L.H. panel (YELLOW (B-190))
-
32517302823 Hinge lockHinge lock
