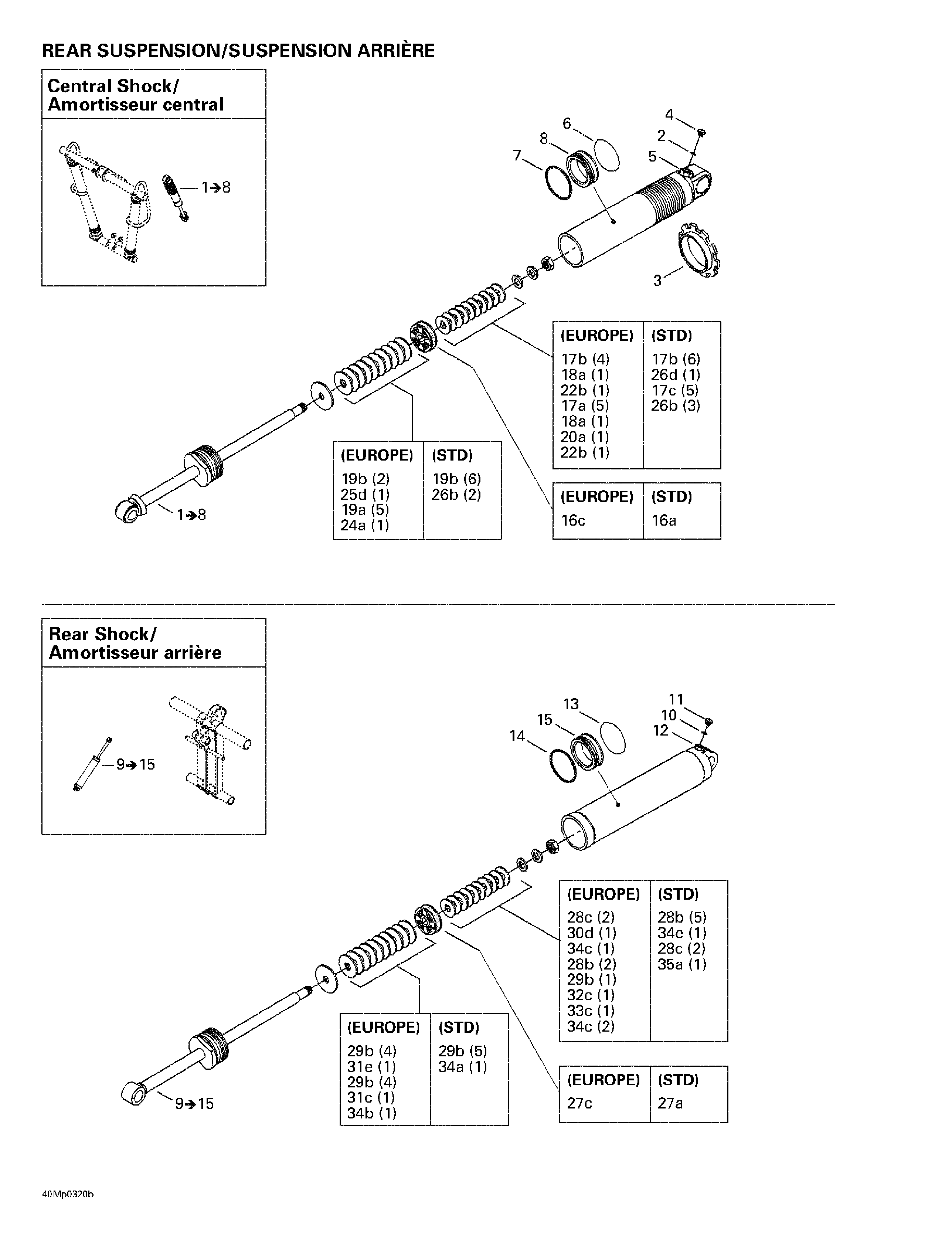

08- Rear Take Apart Shocks для BRP Ski-Doo MX Z Blair Morgan Special Edition - 2003
-
№АртикулНазвание
-
1503190016 Center shock. Includes 1 - 8.Center shock. Includes 1 - 8.
-
1503190247 Center shock (EUROPE). Includes 1 - 8.Center shock (EUROPE). Includes 1 - 8.
-
2505070400 O-ringO-ring
-
3414888316 Spring collarSpring collar
-
4505070399 ScrewScrew
-
5505070398 Air valveAir valve
-
6503189308 Piston ringPiston ring
-
7414888312 O-ringO-ring
-
8503189309 Free pistonFree piston
-
9503190013 Rear shock. Includes 9 - 15.Rear shock. Includes 9 - 15.
-
9503190248 Rear shock (EUROPE). Includes 9 - 15.Rear shock (EUROPE). Includes 9 - 15.
-
10505070400 O-ringO-ring
-
11505070399 ScrewScrew
-
12505070398 Air valveAir valve
-
13503189006 Piston ringPiston ring
-
14503189007 O-ringO-ring
-
15503189008 Flotting pistonFlotting piston
-
16a414888307 Piston (2 x 0.3-6) (C36)Piston (2 x 0.3-6) (C36)
-
16b414888306 Piston (2 x 0.3-4) (C36)Piston (2 x 0.3-4) (C36)
-
16c414888305 Piston (2 x 0.3-2) (C36)Piston (2 x 0.3-2) (C36)
-
16d414888304 Piston (C36)Piston (C36)
-
17a415039100 Leaf valve O30 x 0.254 (C36)Leaf valve O30 x 0.254 (C36)
-
17b414888318 Leaf valve O30 x 0.203 (C36)Leaf valve O30 x 0.203 (C36)
-
17c414888319 Leaf valve O30 x 0.152 (C36)Leaf valve O30 x 0.152 (C36)
-
18a414888320 Leaf valve O28 x 0.203 (C36)Leaf valve O28 x 0.203 (C36)
-
18b414888321 Leaf valve O28 x 0.152 (C36)Leaf valve O28 x 0.152 (C36)
-
19a415039000 Leaf valve O26 x 0.254 (C36)Leaf valve O26 x 0.254 (C36)
-
19b414888322 Leaf valve O26 x 0.203 (C36)Leaf valve O26 x 0.203 (C36)
-
19c414888323 Leaf valve O26 x 0.152 (C36)Leaf valve O26 x 0.152 (C36)
-
20a414888324 Leaf valve O22 x 0.203 (C36)Leaf valve O22 x 0.203 (C36)
-
20b414888325 Leaf valve O22 x 0.152 (C36)Leaf valve O22 x 0.152 (C36)
-
21a414888340 Leaf valve O21 x 0.114 (C36)Leaf valve O21 x 0.114 (C36)
-
22a414888326 Leaf valve O20 x 0.203 (C36)Leaf valve O20 x 0.203 (C36)
-
22b414888327 Leaf valve O20 x 0.152 (C36)Leaf valve O20 x 0.152 (C36)
-
22c414888328 Leaf valve O20 x 0.114 (C36)Leaf valve O20 x 0.114 (C36)
-
23a414888329 Leaf valve O18 x 0.203 (C36)Leaf valve O18 x 0.203 (C36)
-
23b414888330 Leaf valve O18 x 0.152 (C36)Leaf valve O18 x 0.152 (C36)
-
24a414888331 Leaf valve O16 x 0.254 (C36)Leaf valve O16 x 0.254 (C36)
-
24b414888332 Leaf valve O16 x 0.203 (C36)Leaf valve O16 x 0.203 (C36)
-
24c414888333 Leaf valve O16 x 0.152 (C36)Leaf valve O16 x 0.152 (C36)
-
24d415038900 Leaf valve O16 x 0.114 (C36)Leaf valve O16 x 0.114 (C36)
-
25a414888334 Leaf valve O15 x 0.254 (C36)Leaf valve O15 x 0.254 (C36)
-
25b414888335 Leaf valve O15 x 0.203 (C36)Leaf valve O15 x 0.203 (C36)
-
25c414888336 Leaf valve O15 x 0.152 (C36)Leaf valve O15 x 0.152 (C36)
-
25d414888337 Leaf valve O15 x 0.114 (C36)Leaf valve O15 x 0.114 (C36)
-
26a503189538 Leaf valve O12 x 0.254 (C36)Leaf valve O12 x 0.254 (C36)
-
26b414888338 Leaf valve O12 x 0.203 (C36)Leaf valve O12 x 0.203 (C36)
-
26c414888339 Leaf valve O12 x 0.152 (C36)Leaf valve O12 x 0.152 (C36)
-
26d415038800 Leaf valve O12 x 0.114 (C36)Leaf valve O12 x 0.114 (C36)
-
27b503189002 Piston (O1.7) (C46)Piston (O1.7) (C46)
-
27D503189003 Piston (O1.2) (C46)Piston (O1.2) (C46)
-
27e503189004 Piston (C46)Piston (C46)
-
28a503189041 Leaf valve O40 x 0.254 (C46)Leaf valve O40 x 0.254 (C46)
-
28b503189040 Leaf valve O40 x 0.203 (C46)Leaf valve O40 x 0.203 (C46)
-
28c503189039 Leaf valve O40 x 0.152 (C46)Leaf valve O40 x 0.152 (C46)
-
29a503189038 Leaf valve O36 x 0.254 (C46)Leaf valve O36 x 0.254 (C46)
-
29b503189037 Leaf valve O36 x 0.203 (C46)Leaf valve O36 x 0.203 (C46)
-
29c503189036 Leaf valve O36 x 0.152 (C46)Leaf valve O36 x 0.152 (C46)
-
29E503189031 Leaf valve O30 x 0.114 (C46)Leaf valve O30 x 0.114 (C46)
-
30a503189035 Leaf valve O30 x 0.305 (C46)Leaf valve O30 x 0.305 (C46)
-
30b503189034 Leaf valve O30 x 0.254 (C46)Leaf valve O30 x 0.254 (C46)
-
30c503189033 Leaf valve O30 x 0.203 (C46)Leaf valve O30 x 0.203 (C46)
-
30d503189032 Leaf valve O30 x 0.152 (C46)Leaf valve O30 x 0.152 (C46)
-
31a503189030 Leaf valve O28 x 0.305 (C46)Leaf valve O28 x 0.305 (C46)
-
31b503189029 Leaf valve O28 x 0.254 (C46)Leaf valve O28 x 0.254 (C46)
-
31c503189028 Leaf valve O28 x 0.203 (C46)Leaf valve O28 x 0.203 (C46)
-
31d503189027 Leaf valve O28 x 0.152 (C46)Leaf valve O28 x 0.152 (C46)
-
31e503189026 Leaf valve O28 x 0.114 (C46)Leaf valve O28 x 0.114 (C46)
-
32a503189025 Leaf valve O26 x 0.305 (C46)Leaf valve O26 x 0.305 (C46)
-
32b503189024 Leaf valve O26 x 0.254 (C46)Leaf valve O26 x 0.254 (C46)
-
32c503189023 Leaf valve O26 x 0.203 (C46)Leaf valve O26 x 0.203 (C46)
-
32d503189022 Leaf valve O26 x 0.152 (C46)Leaf valve O26 x 0.152 (C46)
-
32e503189021 Leaf valve O26 x 0.114 (C46)Leaf valve O26 x 0.114 (C46)
-
33a503189020 Leaf valve O24 x 0.305 (C46)Leaf valve O24 x 0.305 (C46)
-
33b503189019 Leaf valve O24 x 0.254 (C46)Leaf valve O24 x 0.254 (C46)
-
33c503189018 Leaf valve O24 x 0.203 (C46)Leaf valve O24 x 0.203 (C46)
-
33d503189017 Leaf valve O24 x 0.152 (C46)Leaf valve O24 x 0.152 (C46)
-
33e503189016 Leaf valve O24 x 0.114 (C46)Leaf valve O24 x 0.114 (C46)
-
34a503189015 Leaf valve O22 x 0.305 (C46)Leaf valve O22 x 0.305 (C46)
-
34b503189014 Leaf valve O22 x 0.254 (C46)Leaf valve O22 x 0.254 (C46)
-
34c503189013 Leaf valve O22 x 0.203 (C46)Leaf valve O22 x 0.203 (C46)
-
34d503189012 Leaf valve O22 x 0.152 (C46)Leaf valve O22 x 0.152 (C46)
-
34E503189011 Leaf valve O22 x 0.114 (C46)Leaf valve O22 x 0.114 (C46)
-
36293600035 Shock oil (not shown)Shock oil (not shown)
