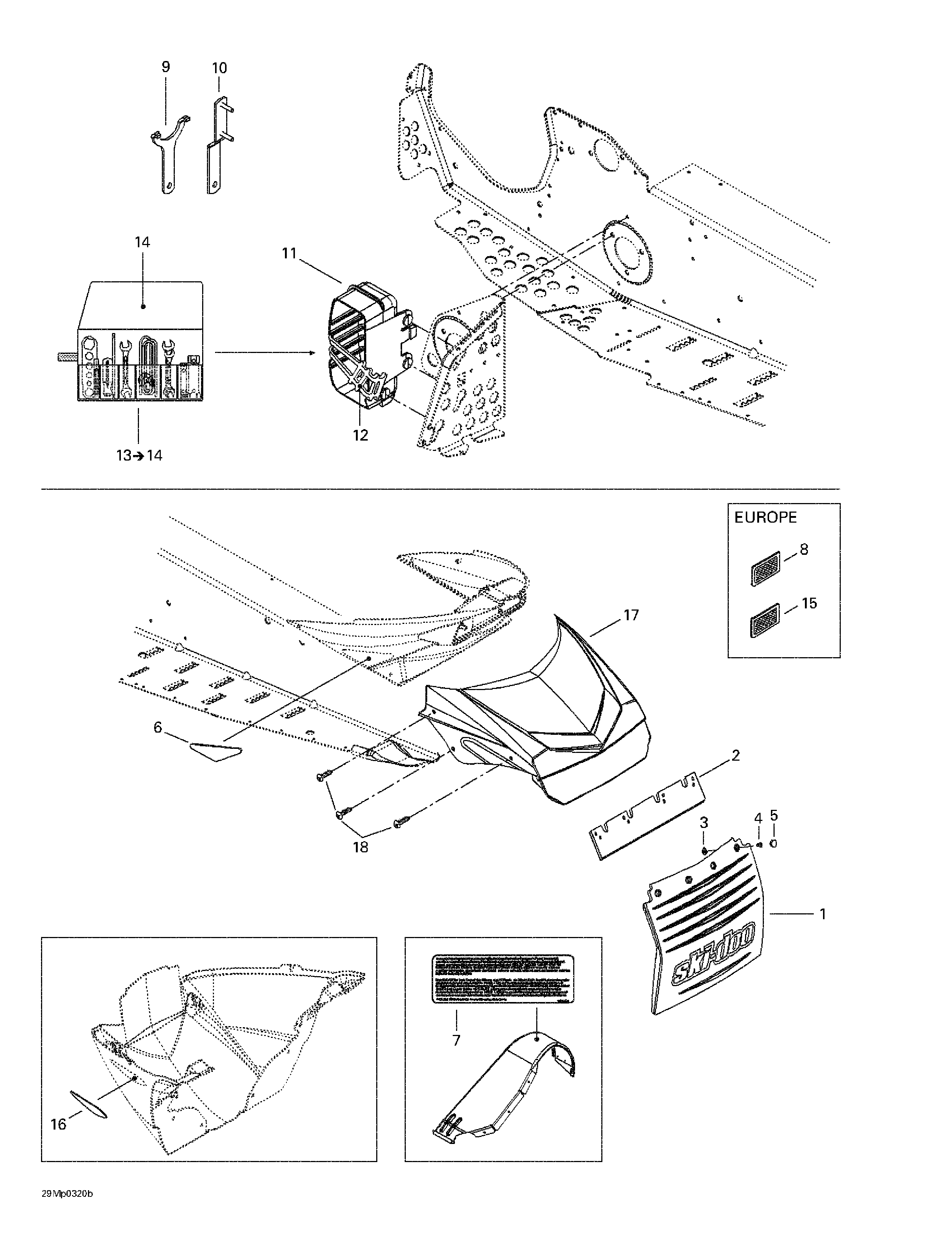

09- Utilities для BRP Ski-Doo MX Z Blair Morgan Special Edition - 2003
-
№АртикулНазвание
-
1572103803 Snow guardSnow guard
-
2572108200 ReinforcementReinforcement
-
3517225900 Flat washerFlat washer
-
4293150087 Pop rivet 3/16''Pop rivet 3/16''
-
5415073300 CapCap
-
6520000237 Rear reflector (red)Rear reflector (red)
-
520000311 Rear reflector (amber) (Europe)Rear reflector (amber) (Europe)
-
7516001681 Pending labelPending label
-
8520000271 Reflector (amber) (Europe)Reflector (amber) (Europe)
-
9529035582 Wrench adjusterWrench adjuster
-
10520000126 Wrench adjusterWrench adjuster
-
11520000322 TrunkTrunk
-
12570069700 LatchLatch
-
13529035596 Tool kit. Includes 13 - 14.Tool kit. Includes 13 - 14.
-
14520000047 Tool bagTool bag
-
15415037900 Reflector (white) (Europe)Reflector (white) (Europe)
-
16516001336 Front reflectorFront reflector
-
17520000340 MouldingMoulding
-
18250000123 Nylon screwNylon screw
