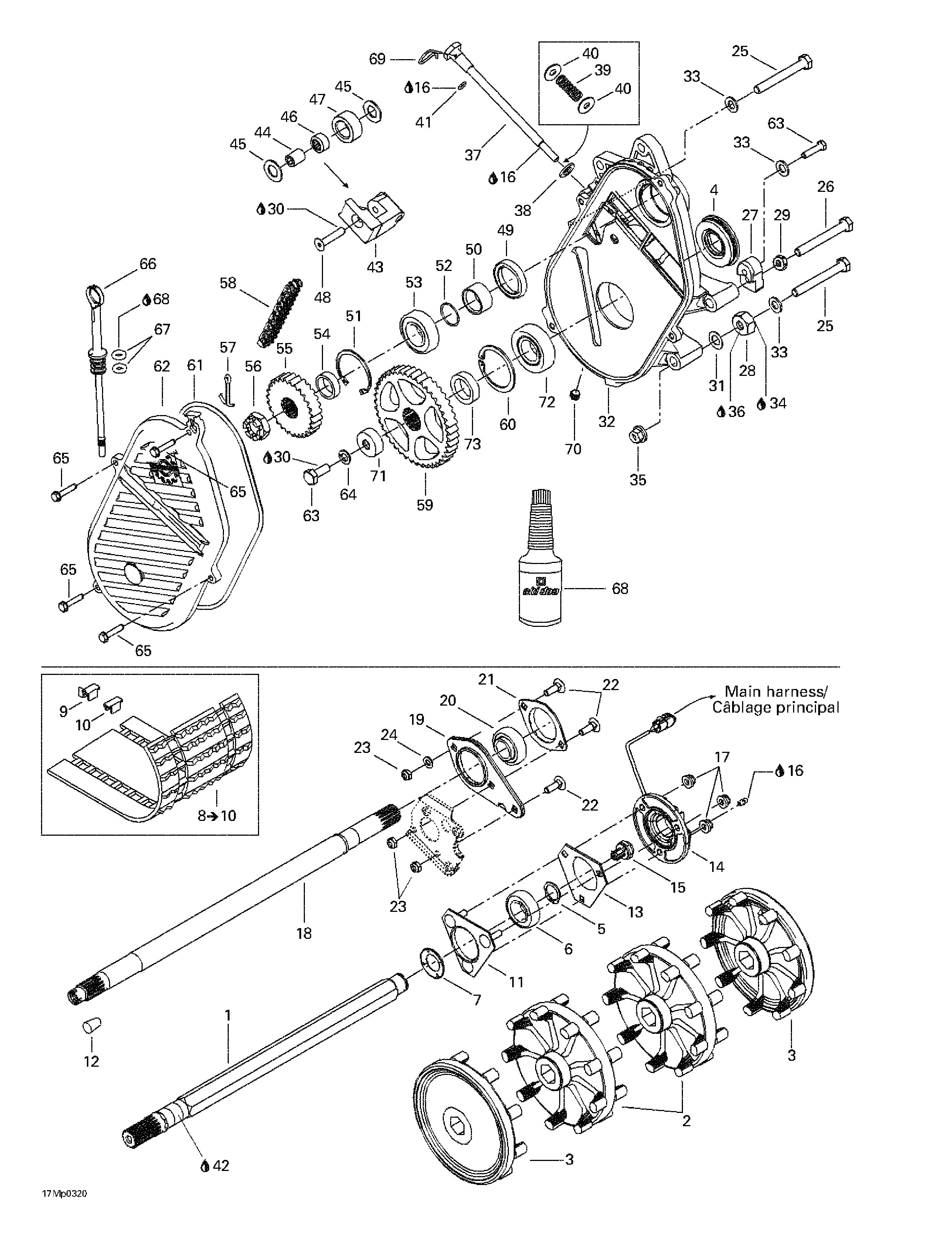

05- Drive System для BRP Ski-Doo MX Z Blair Morgan Special Edition - 2003
-
№АртикулНазвание
-
1501027400 Drive axleDrive axle
-
2504152198 Sprocket (10 teeth)Sprocket (10 teeth)
-
3504152199 Half sprocket (10 teeth)Half sprocket (10 teeth)
-
4504151918 Oil seal ass'yOil seal ass'y
-
5371910200 CirclipCirclip
-
6504152009 Ball bearingBall bearing
-
7501017400 Ball bearing protectorBall bearing protector
-
8504152157 Track (15'' x 121'' x 1''). Includes 8 - 10.Track (15'' x 121'' x 1''). Includes 8 - 10.
-
9500003400 Guide clipGuide clip
-
10504151828 CleatCleat
-
11504151860 Ball bearing housingBall bearing housing
-
12414784800 CorkCork
-
13501025000 FlangeFlange
-
14504152167 Speed sensor flangeSpeed sensor flange
-
15504152040 Magnetic adaptorMagnetic adaptor
-
16219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
17233281414 Elastic flanged nut M8Elastic flanged nut M8
-
18504152018 Counter shaftCounter shaft
-
19504151968 SpacerSpacer
-
20504152026 Ball bearingBall bearing
-
21501026900 FlangeFlange
-
22207782544 Carriage bolt M8 x 25Carriage bolt M8 x 25
-
23232581414 Elastic stop nut M8Elastic stop nut M8
-
24234081410 Flat washer 8 mmFlat washer 8 mm
-
25207108044 Hex. screw M10 x 80Hex. screw M10 x 80
-
26207006544 Hex screw M10 x 65Hex screw M10 x 65
-
27504152106 SpacerSpacer
-
28504083800 SpacerSpacer
-
29504152237 SpacerSpacer
-
30293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
31504073700 WasherWasher
-
32504152086 ChaincaseChaincase
-
33503183800 WasherWasher
-
34293800070 Loctite 767, antiseize lubricant, 8 ozLoctite 767, antiseize lubricant, 8 oz
-
35233201414 Elastic flanged nut M10Elastic flanged nut M10
-
36293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
37504151946 Adjusting screwAdjusting screw
-
38503189148 Flat washer 10 mmFlat washer 10 mm
-
39504151945 SpringSpring
-
40503125900 Hard washerHard washer
-
41504151954 O-ringO-ring
-
42219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
43504151940 Chain tensionnerChain tensionner
-
44504080200 SpacerSpacer
-
45504080300 WasherWasher
-
46405403000 Needle bearingNeedle bearing
-
47414531300 RollerRoller
-
48732601144 ScrewScrew
-
49415049300 Oil sealOil seal
-
50507031500 SpacerSpacer
-
51371901700 CirclipCirclip
-
52414876700 O-ringO-ring
-
53504152006 Ball bearingBall bearing
-
54504093400 ShimShim
-
55504091000 Sprocket, large (23 teeth)Sprocket, large (23 teeth)
-
56250000012 Hex. castellated nut M20Hex. castellated nut M20
-
57371006300 Cotter pinCotter pin
-
58504151857 Drive chain, large (74 links)Drive chain, large (74 links)
-
59504148500 Sprocket (43 teeth)Sprocket (43 teeth)
-
60415064300 CirclipCirclip
-
61415046400 O-ringO-ring
-
62504152027 CoverCover
-
63207102544 Hex. screw M10 x 25Hex. screw M10 x 25
-
64234100602 Lock washer 10 mmLock washer 10 mm
-
65210263080 Hex. flanged screw M6 x 30Hex. flanged screw M6 x 30
-
66504151703 Filler capFiller cap
-
67414969400 O-ringO-ring
-
68413803300 Synthetic chaincase oil,. 12 x 355 mlSynthetic chaincase oil,. 12 x 355 ml
-
69414575600 Hair pinHair pin
-
70504151921 Plug 1/8''-27Plug 1/8''-27
-
71504152104 CapCap
-
72504152005 Ball bearingBall bearing
-
73504152058 ShimShim
