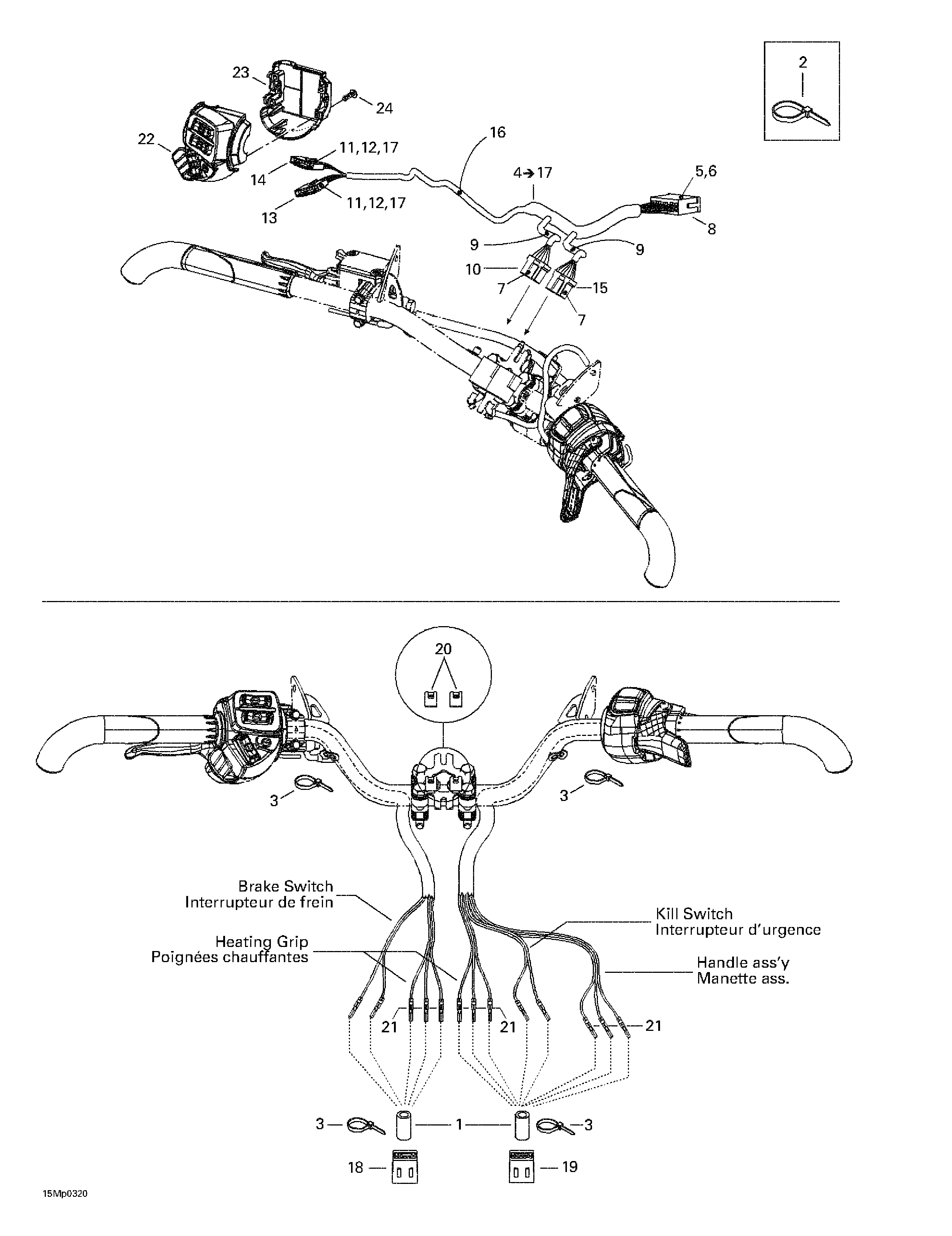

07- Steering System для BRP Ski-Doo MX Z Blair Morgan Special Edition - 2003
-
№АртикулНазвание
-
1515175830 Low temperature tubing 1/2''Low temperature tubing 1/2''
-
2293750008 Tie rap 350 mmTie rap 350 mm
-
414115200 Tie rap 180 mmTie rap 180 mm
-
3293750002 Locking Tie 142 mmLocking Tie 142 mm
-
4515175932 Handle harness. Includes 4 - 17.Handle harness. Includes 4 - 17.
-
5515175232 Male terminalMale terminal
-
6515175273 Male terminalMale terminal
-
7515175231 Female terminalFemale terminal
-
8515175352 Male terminal housing (13 circuits)Male terminal housing (13 circuits)
-
9415079900 Tubing 10 mmTubing 10 mm
-
10515175543 Female terminal housing (6 circuits)Female terminal housing (6 circuits)
-
11515175808 Female terminalFemale terminal
-
12515175809 Female lock (8 circuits)Female lock (8 circuits)
-
13515175807 Female terminal housing (8 circuits). (black)Female terminal housing (8 circuits). (black)
-
14515175810 Female terminal housing (8 circuits). (gray)Female terminal housing (8 circuits). (gray)
-
15515175819 Female terminal housing (8 circuits)Female terminal housing (8 circuits)
-
16515175830 TubingTubing
-
17515175941 Female terminalFemale terminal
-
18515175662 Male terminal housing (6 circuits)Male terminal housing (6 circuits)
-
19515175817 Male terminal housing (8 circuits)Male terminal housing (8 circuits)
-
20515175944 Housing supportHousing support
-
21515175232 Male terminalMale terminal
-
22515175789 Switch housingSwitch housing
-
23515175926 Switch housing plateSwitch housing plate
-
24250000100 Screw #8-18Screw #8-18
