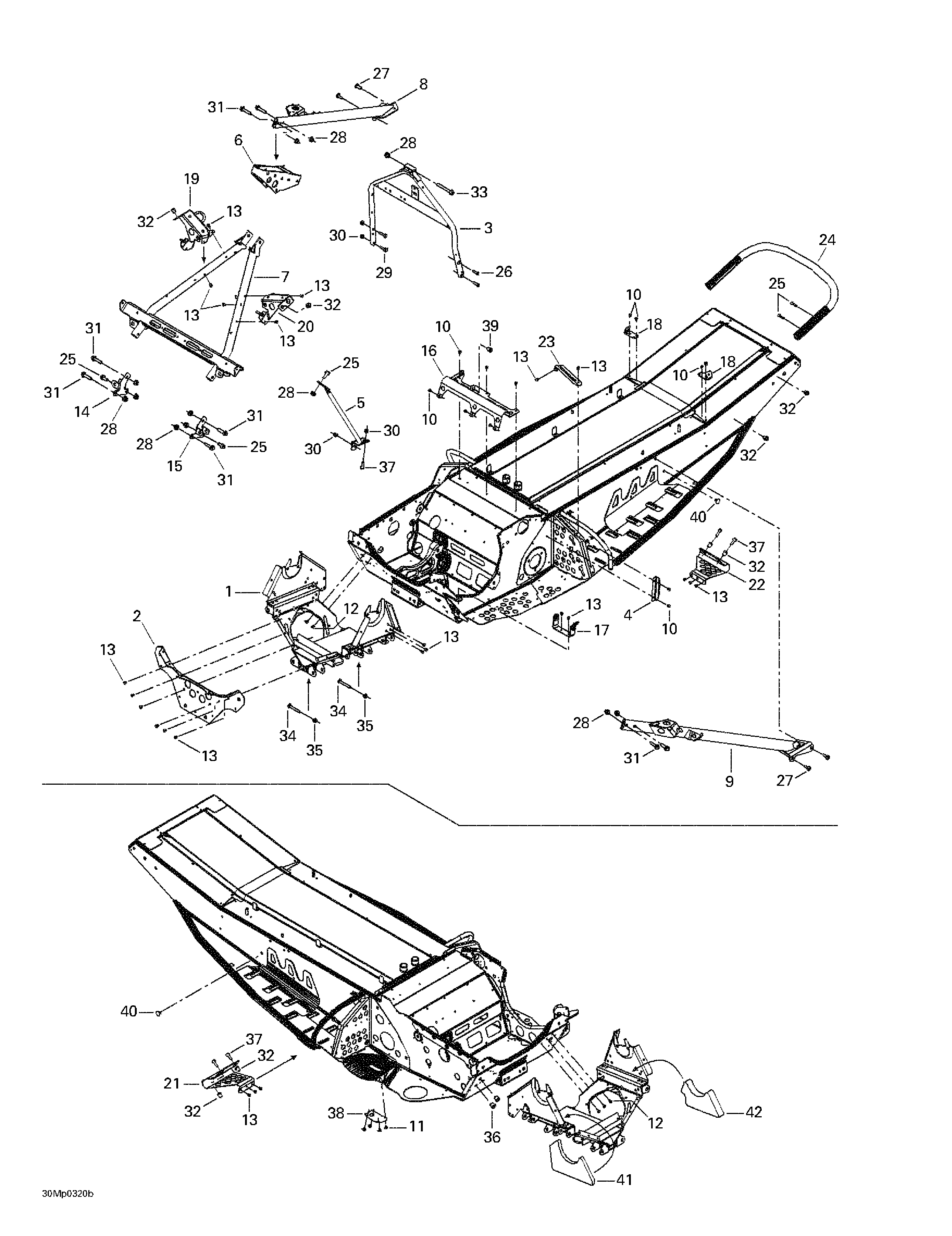

09- Frame - Front And Rear для BRP Ski-Doo MX Z Blair Morgan Special Edition - 2003
-
№АртикулНазвание
-
1518323246 Front cross-memberFront cross-member
-
2518322166 Front plateFront plate
-
3518323394 Handle supportHandle support
-
5518323472 BraceBrace
-
6518322546 BracketBracket
-
7518323251 Upper cross-memberUpper cross-member
-
8518323352 R.H. memberR.H. member
-
9518323354 L.H. memberL.H. member
-
10390402200 Pop rivet 3/16''Pop rivet 3/16''
-
11390402400 Pop rivet 3/16''Pop rivet 3/16''
-
12390909100 Rivet AvexRivet Avex
-
13390909200 Rivet AvexRivet Avex
-
14518322461 R.H. shock bracketR.H. shock bracket
-
15518322462 L.H. shock bracketL.H. shock bracket
-
16518323463 Air intake supportAir intake support
-
17518322726 Belt guard bracketBelt guard bracket
-
18518323274 Trunk bracketTrunk bracket
-
19518322961 R.H. console supportR.H. console support
-
20518322962 L.H. console supportL.H. console support
-
21518323377 R.H. toe holdR.H. toe hold
-
22518323378 L.H. toe holdL.H. toe hold
-
23518323105 PlatePlate
-
24518322708 Rear bumperRear bumper
-
25207682044 Hex. flanged screw M8 x 20Hex. flanged screw M8 x 20
-
26205862044 Socket head screw M6 x 20 (Scotch Grip)Socket head screw M6 x 20 (Scotch Grip)
-
27205000117 Torx screw M8 x 20 (Scotch Grip)Torx screw M8 x 20 (Scotch Grip)
-
28233281414 Elastic flanged nut M8Elastic flanged nut M8
-
29207662544 Hex. flanged screw M6 x 25Hex. flanged screw M6 x 25
-
30233261414 Elastic flanged nut M6Elastic flanged nut M6
-
31207683544 Hex. flanged screw M8 x 35Hex. flanged screw M8 x 35
-
32415107300 InsertInsert
-
33207687044 Hex. flanged screw M8 x 70Hex. flanged screw M8 x 70
-
34207085044 Hex. screw M8 x 50Hex. screw M8 x 50
-
35232581414 Elastic stop nut M8Elastic stop nut M8
-
36293450166 InsertInsert
-
37207662044 Hex. Flanged Screw M6 x 20Hex. Flanged Screw M6 x 20
-
38518323506 PlatePlate
-
39293450232 InsertInsert
-
40518321954 FastenerFastener
-
41518323453 FoamFoam
-
42518323007 FoamFoam
