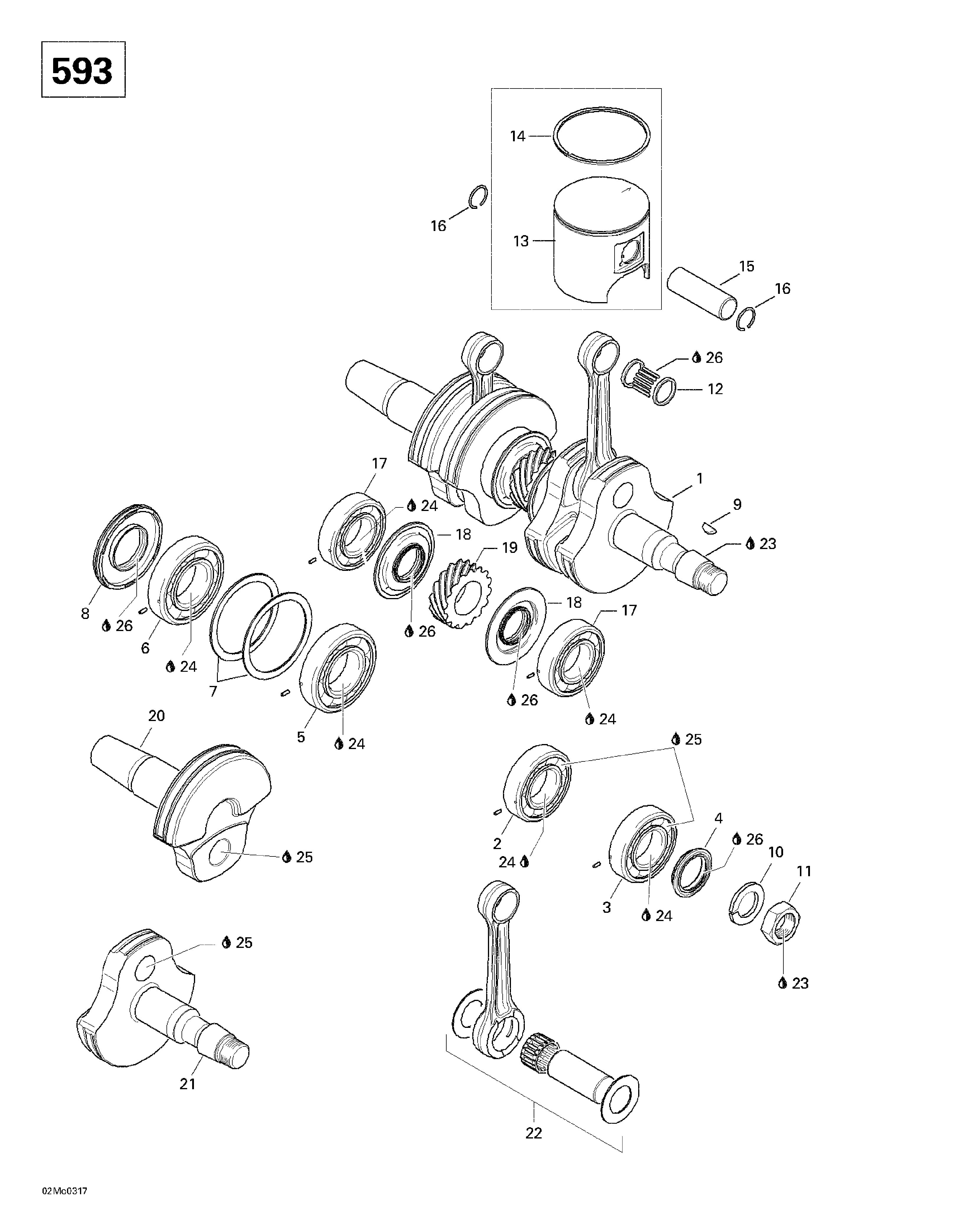

01- Crankshaft And Pistons для BRP Ski-Doo Skandic SUV 600 - 2003

№

Артикул

Название
1

420888757 Crankshaft Ass'y. Includes 1 - 9.

Crankshaft Ass'y. Includes 1 - 9.

0 ₽
2

420832595 Ball Bearing 6206

Ball Bearing 6206

0 ₽
3

420832590 Ball Bearing 6206

Ball Bearing 6206

11 730 ₽
4

420931792 Oil Seal

Oil Seal

0 ₽
5

420832635 Ball Bearing 6207

Ball Bearing 6207

0 ₽
6

420832575 Ball Bearing 6207

Ball Bearing 6207

8 480 ₽
7

420927710 Retaining Disk

Retaining Disk

2 610 ₽
8

290831950 Oil Seal

Oil Seal

0 ₽
9

420246015 Woodfuff Key

Woodfuff Key

1 040 ₽
10

420945759 Lock Washer 22 mm

Lock Washer 22 mm

660 ₽
11

420842234 Hex. Nut M22

Hex. Nut M22

0 ₽
12

420832425 Needle Bearing

Needle Bearing

0 ₽
13

420889170 Piston Ass'y (1 Ring 75.88 mm). Includes 13 - 14.

Piston Ass'y (1 Ring 75.88 mm). Includes 13 - 14.

0 ₽
420889171 Oversize Piston Ass'y

Oversize Piston Ass'y

0 ₽
14

420815155 Semi-Trapez Ring

Semi-Trapez Ring

18 620 ₽
420815156 Oversize Semi-Trapez Ring 76,25 mm

Oversize Semi-Trapez Ring 76,25 mm

18 620 ₽
15

420916410 Gudgeon Pin

Gudgeon Pin

0 ₽
16

420845106 Piston Circlip

Piston Circlip

2 410 ₽
17

420832590 Ball Bearing 6206

Ball Bearing 6206

11 730 ₽
18

420931940 Oil Seal

Oil Seal

10 710 ₽
19

420834350 Central Gear 15 Teeth

Central Gear 15 Teeth

8 200 ₽
20

420818666 Crankshaft (PTO side)

Crankshaft (PTO side)

0 ₽
21

420818693 Crankshaft (MAG side)

Crankshaft (MAG side)

0 ₽
22

420888753 Rod Repair Kit (MAG side)

Rod Repair Kit (MAG side)

0 ₽
420888754 Rod Repair Kit (PTO side)

Rod Repair Kit (PTO side)

0 ₽
23

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml

2 760 ₽
24

293800023 Loctite 767, Antiseize Lubricant, 454 g

Loctite 767, Antiseize Lubricant, 454 g

0 ₽
25

413711400 Loctite 648, 10 ml

Loctite 648, 10 ml

3 420 ₽
26

413802900 Injection Oil (12 x 1 Liter)

Injection Oil (12 x 1 Liter)

1 050 ₽
