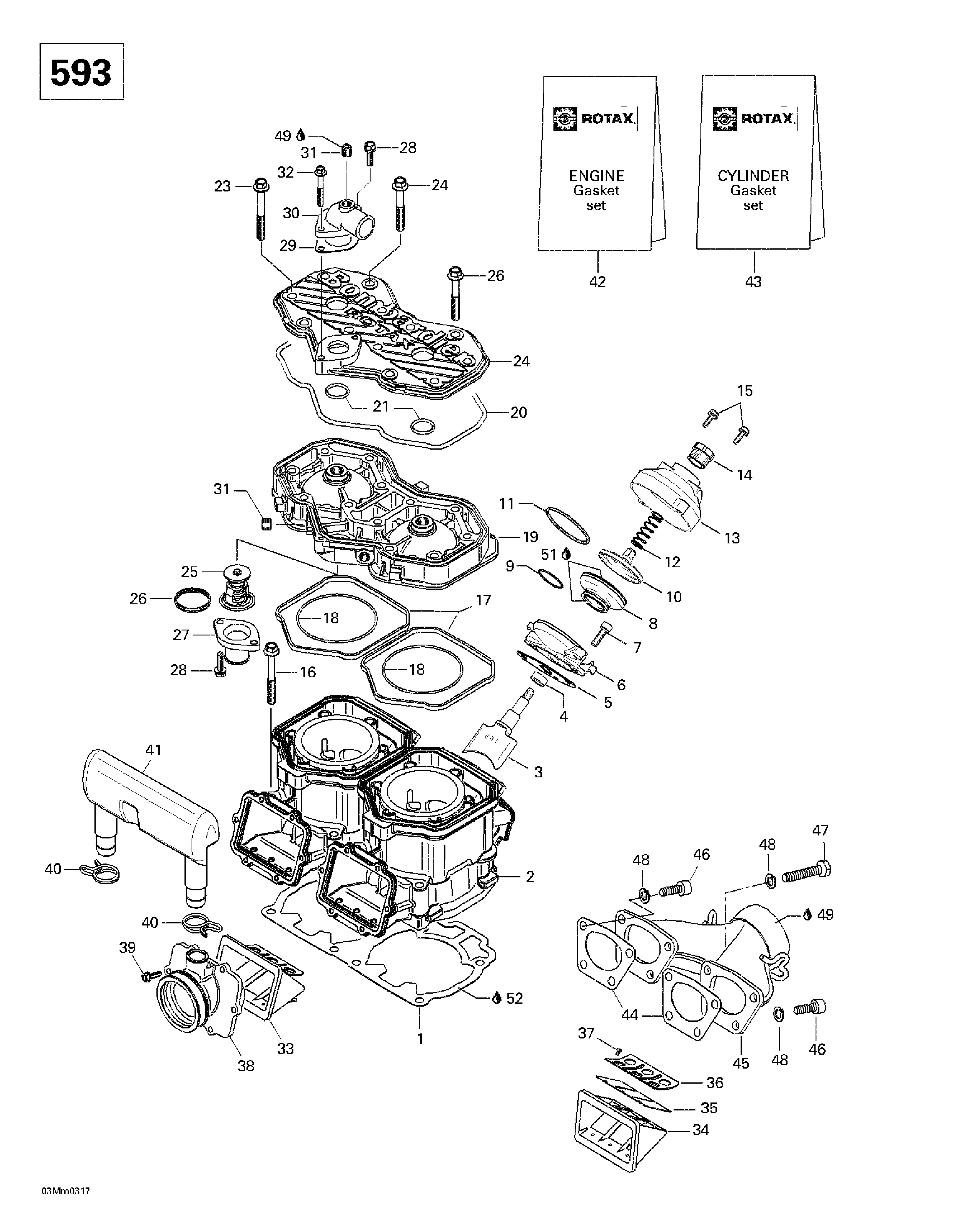

01- Cylinder, Exhaust Manifold для BRP Ski-Doo Skandic SUV 600 - 2003
-
№АртикулНазвание
-
1420931584 Double Gasket 0.8 mmDouble Gasket 0.8 mm
-
420931962 Double Gasket 0.7 mmDouble Gasket 0.7 mm
-
420931582 Double Gasket 0.6 mmDouble Gasket 0.6 mm
-
420931583 Double Gasket 0.5 mmDouble Gasket 0.5 mm
-
420931581 Double Gasket 0.4 mmDouble Gasket 0.4 mm
-
2420613620 Cylinder with SleeveCylinder with Sleeve
-
3420854370 Exhaust ValveExhaust Valve
-
4420950730 Oil SealOil Seal
-
5420250239 GasketGasket
-
6420854266 Valve HousingValve Housing
-
7205062044 Socket Head Screw M6 x 20Socket Head Screw M6 x 20
-
8290260723 BellowsBellows
-
9420838253 Spring ClampSpring Clamp
-
10420854449 Exhaust ValveExhaust Valve
-
11290239048 Hose SpringHose Spring
-
12420239948 SpringSpring
-
13420911552 Valve CoverValve Cover
-
14420241221 Adjuster ScrewAdjuster Screw
-
15420841555 Tapping Screw M5 x 20Tapping Screw M5 x 20
-
16420841951 Hex. Screw M8 x 68.5Hex. Screw M8 x 68.5
-
17420931590 Rubber RingRubber Ring
-
18293300026 O-RingO-Ring
-
19420923452 Cylinder Head (Silver)Cylinder Head (Silver)
-
20290950320 O-RingO-Ring
-
21420430782 O-RingO-Ring
-
22420923460 Cylinder Head Cover (Silver)Cylinder Head Cover (Silver)
-
23420841306 Hex. Collar Screw M8 x 65Hex. Collar Screw M8 x 65
-
24420941621 Hex. Collar Screw M8 x 56.5Hex. Collar Screw M8 x 56.5
-
25420922517 ThermostatThermostat
-
26420931272 Sealing RingSealing Ring
-
27420922025 Bent Outlet SocketBent Outlet Socket
-
28420941250 Screw M6 x 20Screw M6 x 20
-
29420850338 GasketGasket
-
30420922062 Bent Outlet SocketBent Outlet Socket
-
31420240480 Plug Screw 1/8-27 NPTPlug Screw 1/8-27 NPT
-
32420941451 Hex. Collar Screw M6 x 40Hex. Collar Screw M6 x 40
-
33420924519 Reed Valve Ass'y. Includes 33 - 37.Reed Valve Ass'y. Includes 33 - 37.
-
35420924532 Pedal ReedPedal Reed
-
36420924539 Reed Pedal StopReed Pedal Stop
-
37420941215 Screw M3 x 5Screw M3 x 5
-
38420867860 Carburetor SocketCarburetor Socket
-
39420941925 Screw M5 x 16Screw M5 x 16
-
40420851440 ClampClamp
-
41420867815 Intake ResonatorIntake Resonator
-
42420888584 Engine Gasket SetEngine Gasket Set
-
43420888588 Cylinder Gasket SetCylinder Gasket Set
-
44420931610 GasketGasket
-
45420979633 Exhaust ManifoldExhaust Manifold
-
46M40135 Socket Head Screw M8 X 30Socket Head Screw M8 X 30
-
47207182044 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
48234181401 Lock Washer 8 mmLock Washer 8 mm
-
49293800090 Sealant, Loctite 17914, 80 mlSealant, Loctite 17914, 80 ml
-
50293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
51413707000 Molykote 111Molykote 111
-
52293800038 Loctite 518, 50 mlLoctite 518, 50 ml
