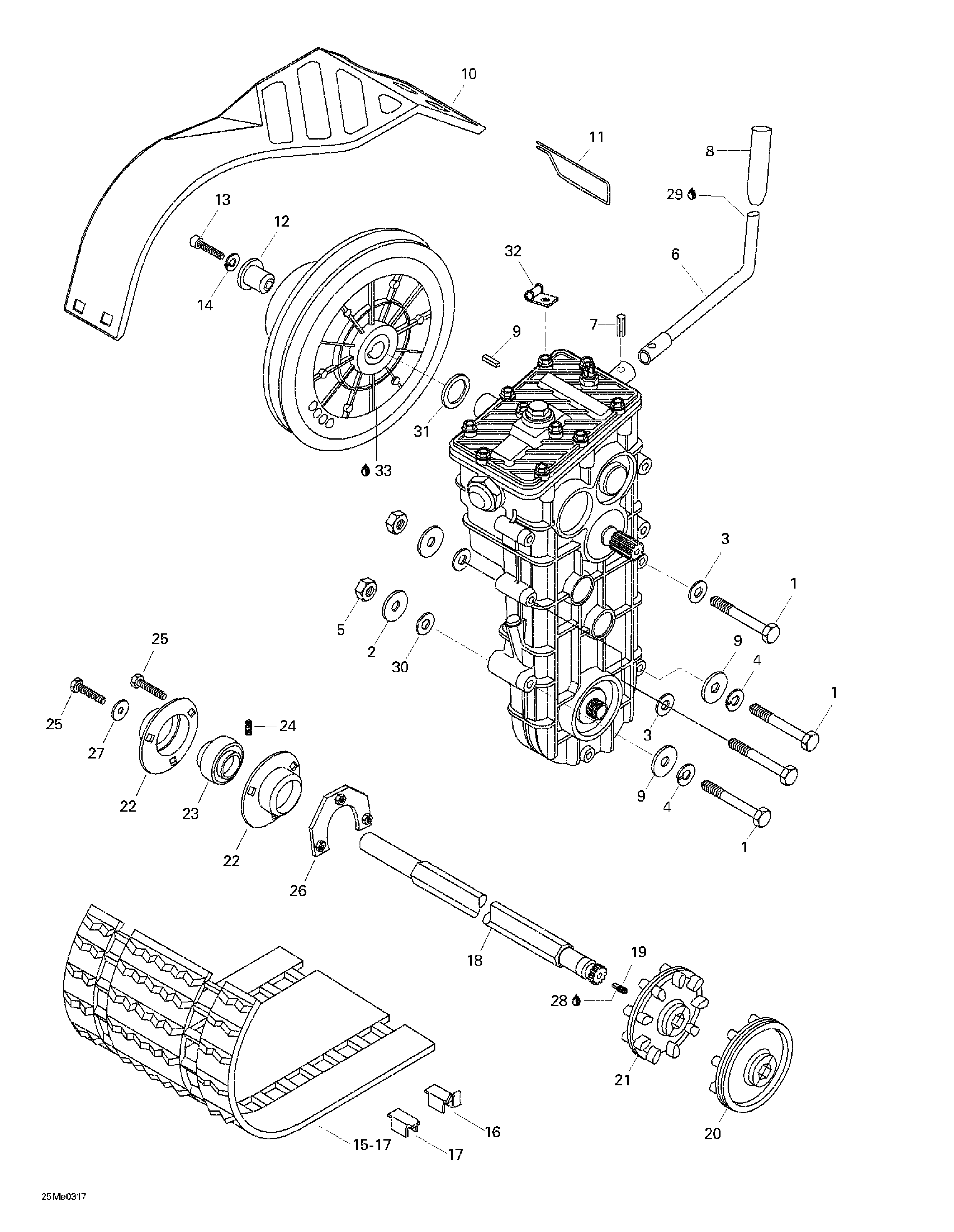

05- Drive Axle, Track And Belt Guard для BRP Ski-Doo Skandic SUV 600 - 2003
-
№АртикулНазвание
-
1M40012 Screw M8 x 80Screw M8 x 80
-
2M20010 WasherWasher
-
3234081410 Washer 8 mmWasher 8 mm
-
4234181401 Lock Washer 8 mmLock Washer 8 mm
-
5232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
6M5340902 Arm ShifterArm Shifter
-
7M41007 Pin SpringPin Spring
-
8M28247 Arm Shifter BallArm Shifter Ball
-
9M418763 KeyKey
-
10M5146001 Belt GuardBelt Guard
-
11M5442726 PinPin
-
12M5443201 Shaft ExtensionShaft Extension
-
13M40286 Socket Head Screw M8 x 45Socket Head Screw M8 x 45
-
14234181401 Lock Washer 8 mmLock Washer 8 mm
-
15M13070 Track Ass'y. Includes 15 - 17.Track Ass'y. Includes 15 - 17.
-
16M5318323 Guide CleatGuide Cleat
-
17M5318322 CleatCleat
-
18M5345117 Drive AxleDrive Axle
-
19M542013 NippleNipple
-
20415067400 Half SprocketHalf Sprocket
-
21414931800 SprocketSprocket
-
22M534430 Ball Bearing HousingBall Bearing Housing
-
23M31UC205 Ball BearingBall Bearing
-
24M10531 ScrewScrew
-
25M40336 Screw M8 x 20Screw M8 x 20
-
26M546421 Half RingHalf Ring
-
27M546336 WasherWasher
-
28293800005 Loctite 271, 10mlLoctite 271, 10ml
-
29293800060 Loctite 243, 10mlLoctite 243, 10ml
-
30M20077 WasherWasher
-
31M3125351 ShimShim
-
32M5443134 Wire HolderWire Holder
-
33293800070 Loctite Antiseize, 8 oncesLoctite Antiseize, 8 onces
