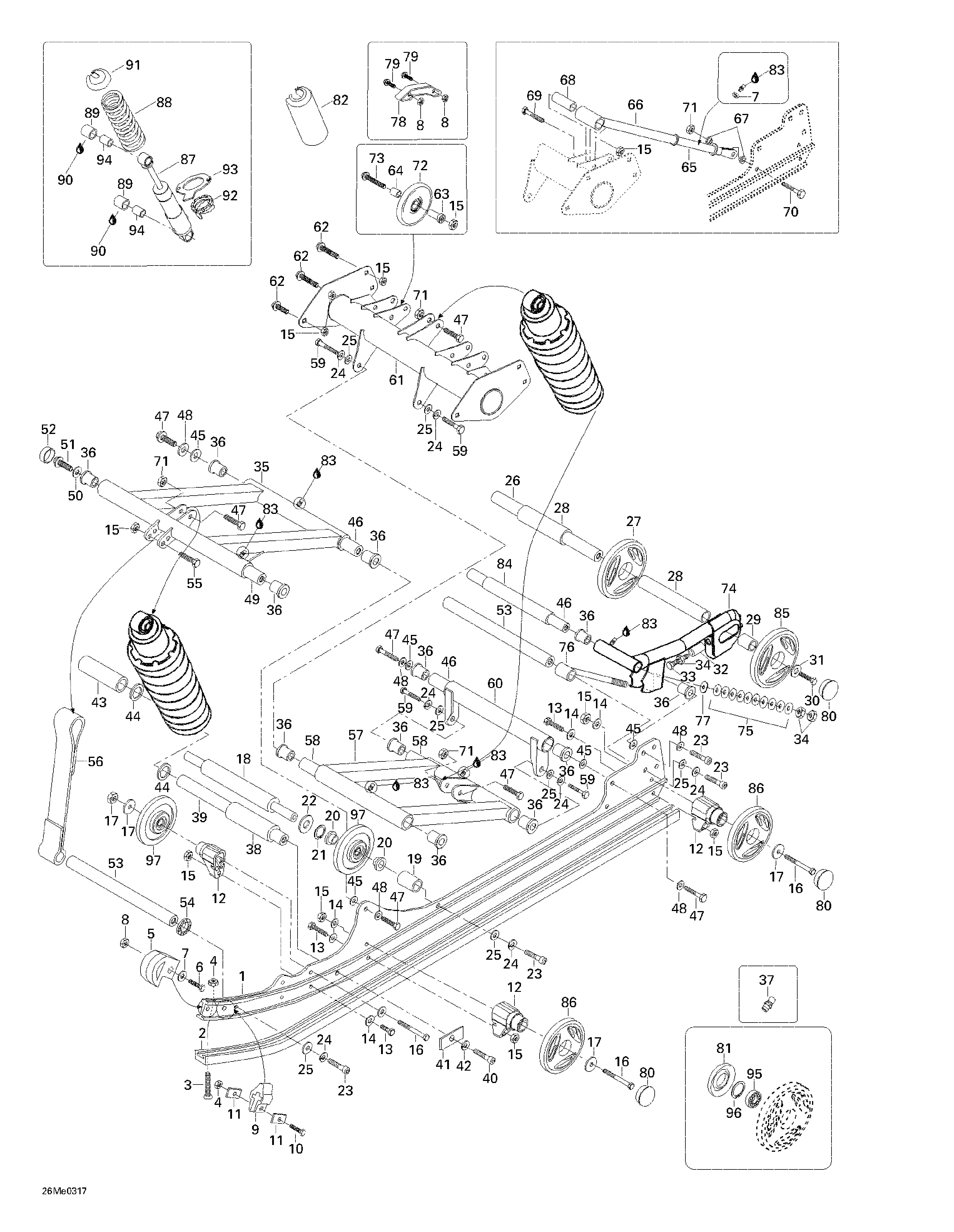

08- Rear Suspension для BRP Ski-Doo Skandic SUV 600 - 2003
-
№АртикулНазвание
-
1M5247224 RunnerRunner
-
2M5347724 Shoe RunnerShoe Runner
-
3M40059 Allen Screw M6x60Allen Screw M6x60
-
4232561414 Nut Elastic M6Nut Elastic M6
-
5M534578 Runner ProtectorRunner Protector
-
6207162544 Screw M6x25Screw M6x25
-
7234061410 WasherWasher
-
8M33200 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
9M5448216 Rubber StopperRubber Stopper
-
10207063044 Screw M6x30Screw M6x30
-
11M548470 PlatePlate
-
12M5447079 SupportSupport
-
13207182544 Screw M8x25Screw M8x25
-
14M20104 Washer, HardenedWasher, Hardened
-
15232581414 Nut Elastic M8Nut Elastic M8
-
16M40089 Screw M8x75Screw M8x75
-
17503183100 Washer, HardenedWasher, Hardened
-
18M5347950 AxleAxle
-
19M5447951 SleeveSleeve
-
20503189534 CushionCushion
-
21M31007 CirclipCirclip
-
22M31091 ShimShim
-
23M40134 Allen Screw M10x45Allen Screw M10x45
-
24M20047 Lock WasherLock Washer
-
25M20105 WasherWasher
-
26M5343284 AxleAxle
-
27503189478 Idler Wheel 165Idler Wheel 165
-
28M5444096 SleeveSleeve
-
29M5444098 SleeveSleeve
-
30250000019 Locking Screw M10x35Locking Screw M10x35
-
31503183300 WasherWasher
-
32M546668 SleeveSleeve
-
33M40239 Screw M10x100Screw M10x100
-
34232006414 Nut M10Nut M10
-
35M5147672 Front Arm WeldedFront Arm Welded
-
36M31083 CushionCushion
-
37M34011 Grease NippleGrease Nipple
-
38M5347718 LimiterLimiter
-
39M5347726 ShaftShaft
-
40M40536 Allen Screw M10x45Allen Screw M10x45
-
41M5447940 Support PlateSupport Plate
-
42M20068 Lock WasherLock Washer
-
43M5346649 SleeveSleeve
-
44M31013 ShimShim
-
45M20116 WasherWasher
-
46M5347713 ShaftShaft
-
47222004565 Screw M10x45Screw M10x45
-
48512056700 Lock WasherLock Washer
-
49M5347719 ShaftShaft
-
50M20090 Conical Spring WasherConical Spring Washer
-
51M40243 Screw M12x60Screw M12x60
-
52509000187 CapCap
-
53M5347717 ShaftShaft
-
54M4181158 WasherWasher
-
55M40008 Screw M8x45Screw M8x45
-
56M5447961 Stopper StrapStopper Strap
-
57M5245536 Rear Arm WeldedRear Arm Welded
-
58M5346865 ShaftShaft
-
59207004044 Screw M10x40Screw M10x40
-
60M5347668 Rear Arm WeldedRear Arm Welded
-
61605248974 Upper ArmUpper Arm
-
62M40058 Locking Screw M8x20Locking Screw M8x20
-
63605448772 SleeveSleeve
-
64605448773 SleeveSleeve
-
65M5347851 Tube WeldTube Weld
-
66M5347852 ShaftShaft
-
67M5447853 InsertInsert
-
68M5447848 SleeveSleeve
-
69207086044 Screw M8x60Screw M8x60
-
70207103544 Screw M10x35Screw M10x35
-
71233601416 Elastic Nut M10Elastic Nut M10
-
72M46027 Idler WheelIdler Wheel
-
73M40088 Screw M8x70Screw M8x70
-
74M5247806 R.H. ExtensionR.H. Extension
-
74M5247808 L.H. ExtensionL.H. Extension
-
75M25004 Spring PlateSpring Plate
-
76M5447373 Eye Bolt AdjusterEye Bolt Adjuster
-
77M20011 WasherWasher
-
78M5343191 ProtectorProtector
-
79M40064 Locking Screw M6x40Locking Screw M6x40
-
80570063600 Wheel CapWheel Cap
-
81572089000 Labyrinth SealLabyrinth Seal
-
82M5346754 Shock ProtectorShock Protector
-
83219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
84605448429 SleeveSleeve
-
85503189479 Idler Wheel 165/YellowIdler Wheel 165/Yellow
-
86503189094 Idler Wheel 135Idler Wheel 135
-
87M23161 Shock, CenterShock, Center
-
M23162 Shock, RearShock, Rear
-
88M25059 Spring, CenterSpring, Center
-
M25060 Spring, RearSpring, Rear
-
89M31094 Slide BearingSlide Bearing
-
90M320006 Loctite 641, 50 mLLoctite 641, 50 mL
-
91M230076 Spring SeatSpring Seat
-
92M230078 Adjusting Cam (Center/Rear)Adjusting Cam (Center/Rear)
-
93605348748 Cam AdjusterCam Adjuster
-
94M5446652 SleeveSleeve
-
95405404500 Ball Bearing 6205Ball Bearing 6205
-
96371901700 CirclipCirclip
-
97503188998 Wheel 139/BlackWheel 139/Black
