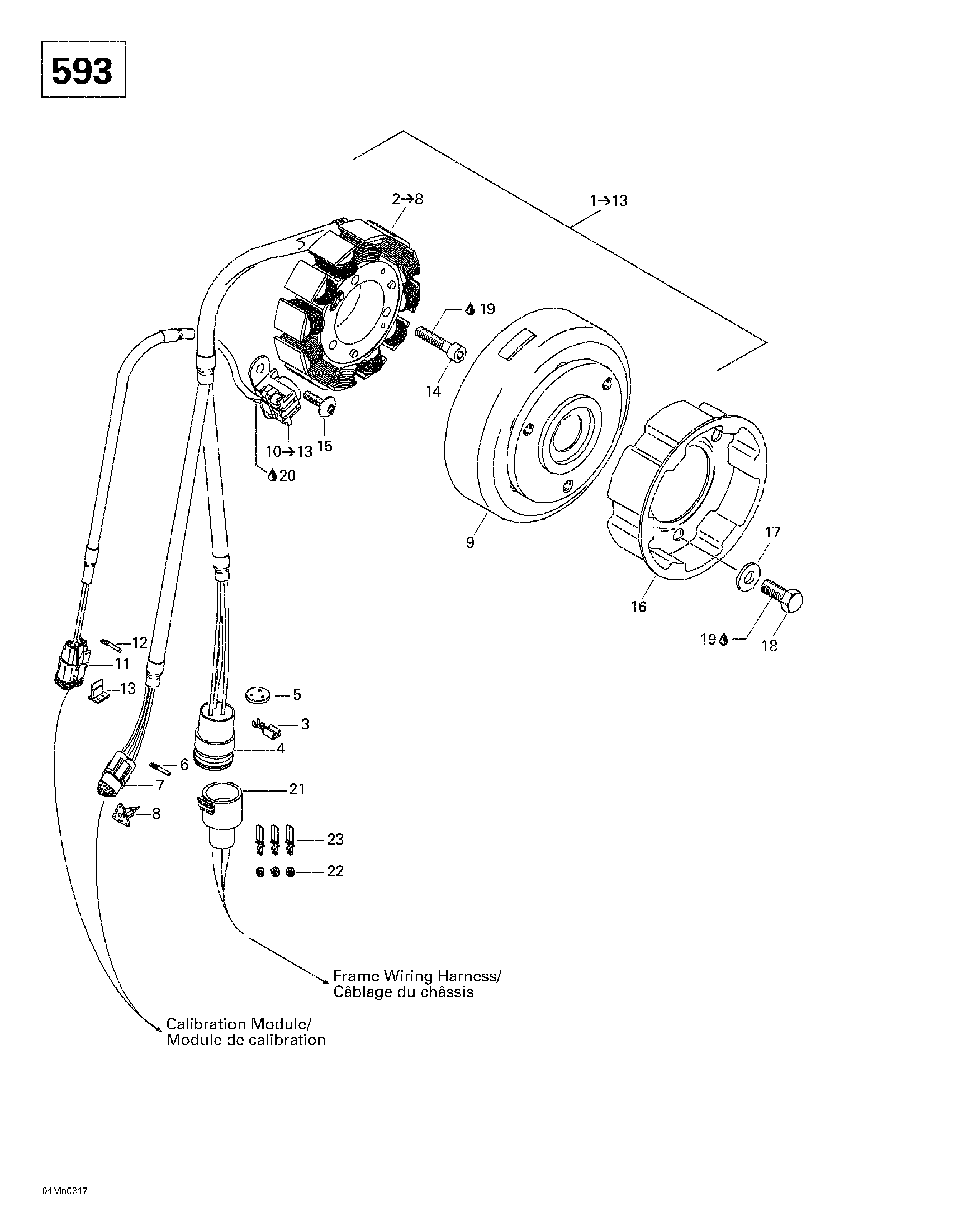

03- Magneto (12V, 290W) для BRP Ski-Doo Skandic SUV 600 - 2003

№

Артикул

Название
2

410922949 Stator Plate Ass'y. Includes 2 - 8.

Stator Plate Ass'y. Includes 2 - 8.

31 280 ₽
3

409011900 Female Terminal

Female Terminal

660 ₽
4

409208200 Female Terminal Housing (3 circ.)

Female Terminal Housing (3 circ.)

1 490 ₽
6

278000632 Female Terminal

Female Terminal

200 ₽
7

409207400 Female Terminal Housing (3 circ.)

Female Terminal Housing (3 circ.)

990 ₽
8

409207200 (Female) Secondary Lock (3 Circuits) (Deutsch)

(Female) Secondary Lock (3 Circuits) (Deutsch)

420 ₽
9

410922950 Flywheel

Flywheel

37 150 ₽
10

410922951 Pick-up Ass'y. Includes 10 - 13.

Pick-up Ass'y. Includes 10 - 13.

9 030 ₽
11

409207300 Female Terminal Housing (2 circ.)

Female Terminal Housing (2 circ.)

910 ₽
12

278000632 Female Terminal

Female Terminal

200 ₽
13

409207100 Female Lock (2 circuits)

Female Lock (2 circuits)

310 ₽
14

205063044 Socket Head Screw M6 x 30

Socket Head Screw M6 x 30

550 ₽
15

420640321 Screw M5 x 16

Screw M5 x 16

0 ₽
16

420852590 Pulley Starting

Pulley Starting

9 590 ₽
17

420827405 Lock Washer 8 mm

Lock Washer 8 mm

600 ₽
18

420841520 Socket Head Screw M8 x 12

Socket Head Screw M8 x 12

150 ₽
19

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml

2 760 ₽
21

409207900 Male Terminal Housing (3 circ.)

Male Terminal Housing (3 circ.)

1 180 ₽
22

409208500 Seal

Seal

890 ₽
23

409011100 Male Terminal

Male Terminal

660 ₽
