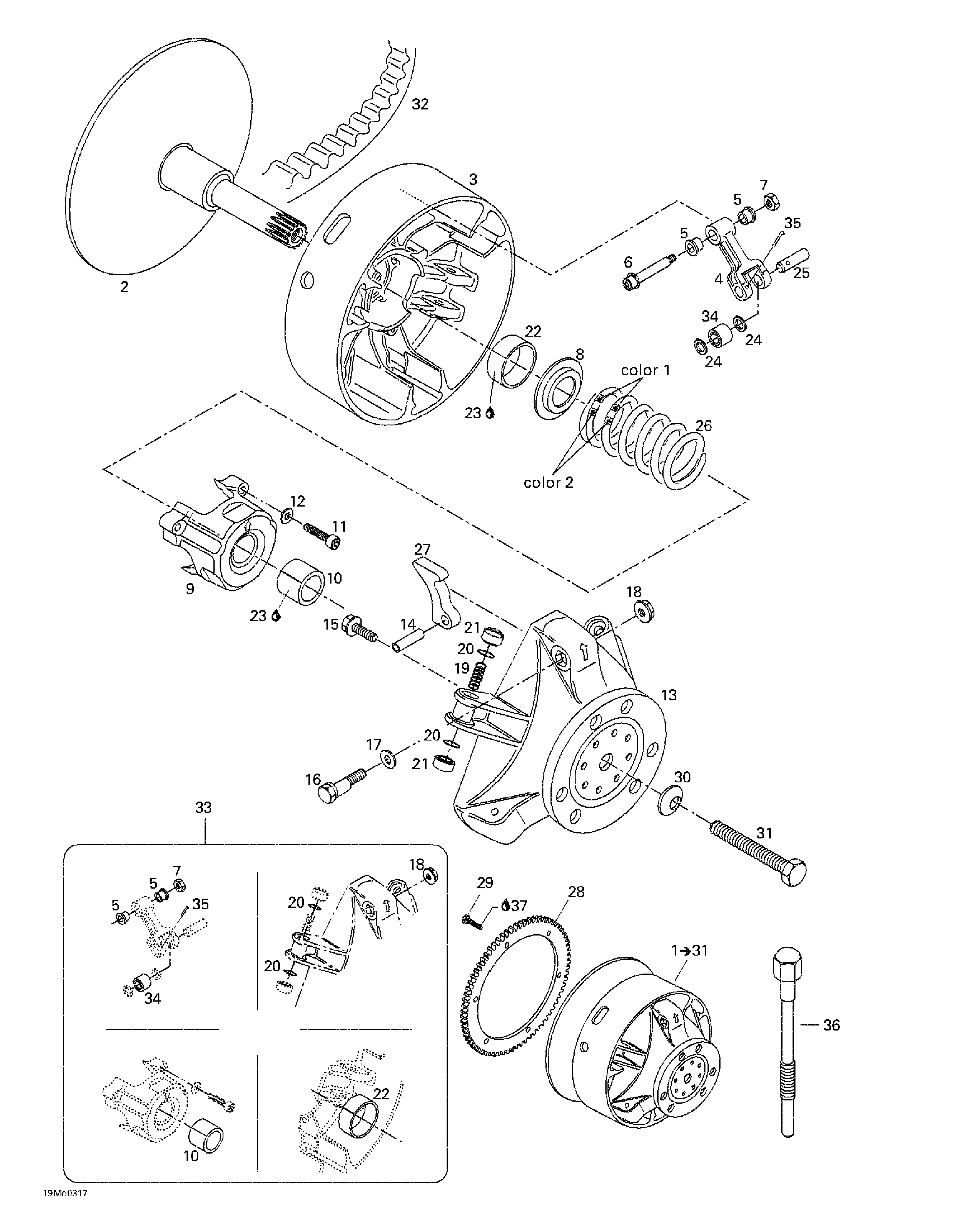

05- Drive Pulley для BRP Ski-Doo Skandic SUV 600 - 2003
-
№АртикулНазвание
-
2417222407 Fixe FlangeFixe Flange
-
3417222241 Sliding FlangeSliding Flange
-
4417222383 Lever-Ass'y. Includes 4 - 5.Lever-Ass'y. Includes 4 - 5.
-
5417004305 Flange BushingFlange Bushing
-
6417004800 Fitting Screw Ass'yFitting Screw Ass'y
-
7232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
8417222044 Spring SeatSpring Seat
-
9417222304 Spring Cover Ass'y. Includes 9 - 10.Spring Cover Ass'y. Includes 9 - 10.
-
10417004501 Sping Cover BushingSping Cover Bushing
-
11250000038 Allen Screw M6 x 40Allen Screw M6 x 40
-
12420245370 Friction-Washer 6 mmFriction-Washer 6 mm
-
13417222081 Gouvernor Cup Ass'yGouvernor Cup Ass'y
-
14732804009 Dowel Tube M8 x 24Dowel Tube M8 x 24
-
15210361890 Hex. Locking Screw M6 x 18Hex. Locking Screw M6 x 18
-
16417005500 Calibration ScrewCalibration Screw
-
17417005600 WasherWasher
-
18233061414 Locking Nut M6Locking Nut M6
-
19417005700 SpringSpring
-
20732401030 O-RingO-Ring
-
21417005800 Shoe SliderShoe Slider
-
22417004201 Bushing Outer HalfBushing Outer Half
-
23413703100 Loctite 609, 10ccLoctite 609, 10cc
-
24417004302 Thrust WasherThrust Washer
-
25417004308 PinPin
-
26414689800 Spring (Red/Red)Spring (Red/Red)
-
27417005290 Ramp 290Ramp 290
-
28417300057 Ring GearRing Gear
-
29236281684 Screw M8 x 16Screw M8 x 16
-
30M20110 Conical Spring WasherConical Spring Washer
-
31417120000 ScrewScrew
-
32414633800 Drive BeltDrive Belt
-
33417008500 Clutch Repair KitClutch Repair Kit
-
34417003900 Roller Ass'yRoller Ass'y
-
35732958001 Cotter PinCotter Pin
-
36529022400 Puller Inner HalfPuller Inner Half
-
37293800005 Loctite 271, 10 mlLoctite 271, 10 ml
