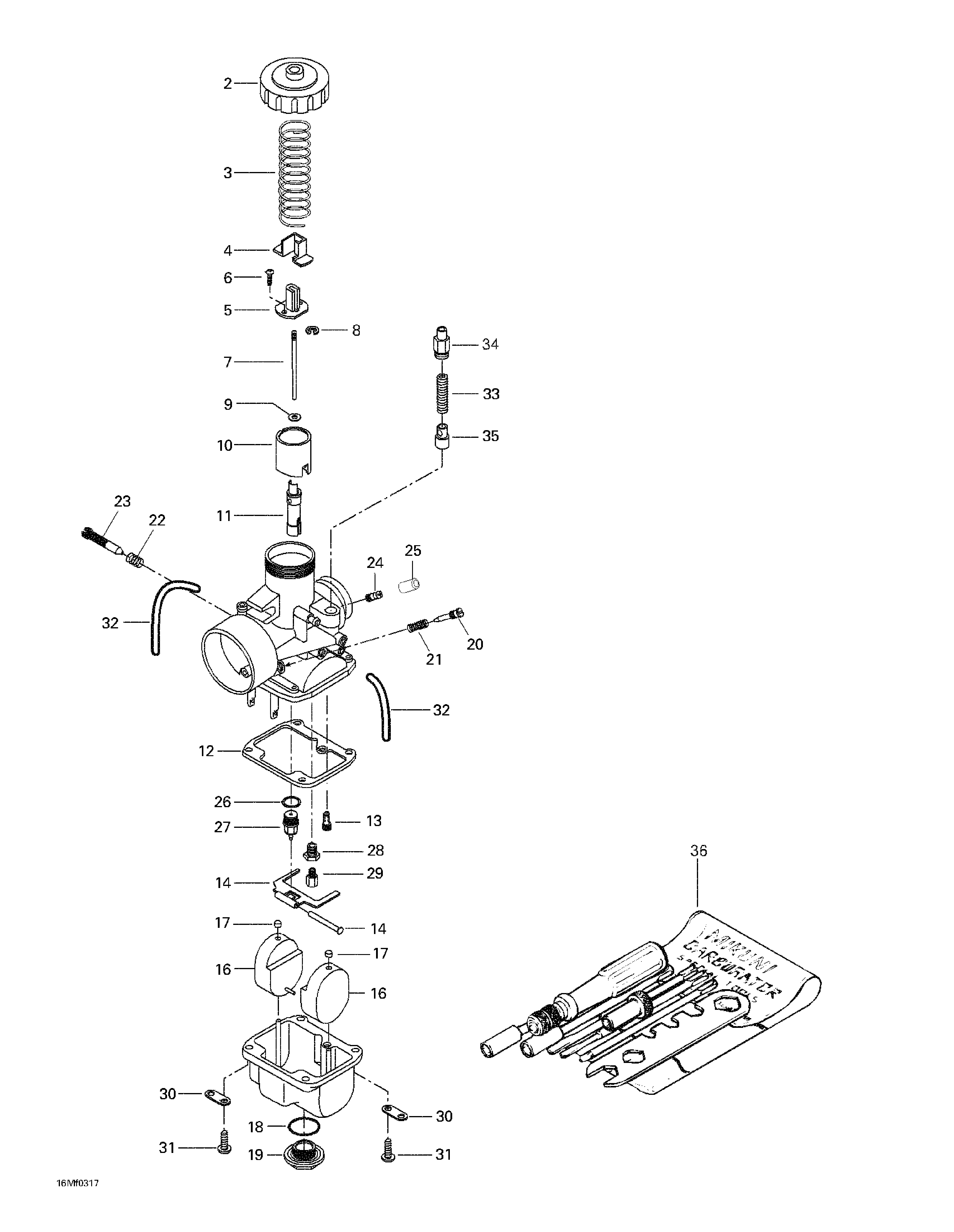

02- Carburetors для BRP Ski-Doo Skandic SUV 600 - 2003
![](/wa-data/public/shop/sheme/bombardier/ski-doo/c016e992-581d-43b5-9edc-352b342f329e.png)
-
№АртикулНазвание
-
1M19111 Carburetor VM 38-443. Includes 1 - 35.Carburetor VM 38-443. Includes 1 - 35.
-
2404105100 CoverCover
-
3404154800 Throttle Valve SpringThrottle Valve Spring
-
4404122100 CoverCover
-
5404160800 ConnectorConnector
-
6404121300 Screw with WasherScrew with Washer
-
7404114100 Jet Needle J8 6FL14Jet Needle J8 6FL14
-
8404152400 E-RingE-Ring
-
9404117000 PackingPacking
-
10404128400 Throttle Valve CA 2.5Throttle Valve CA 2.5
-
11404161805 Needle Jet NJ 480 P-9Needle Jet NJ 480 P-9
-
12404104700 Gasket PanGasket Pan
-
13404109100 Pilot Jet PJ 40Pilot Jet PJ 40
-
14404103300 Float Arm PinFloat Arm Pin
-
15404105000 Float ArmFloat Arm
-
16404105400 FloatFloat
-
17404105800 CapCap
-
18404101500 O-RingO-Ring
-
19404105600 Plug ScrewPlug Screw
-
20404149000 Idle Adjusting ScrewIdle Adjusting Screw
-
21404139800 Idle Adjusting Screw SpringIdle Adjusting Screw Spring
-
22404101700 Throttle Stop Screw SpringThrottle Stop Screw Spring
-
23404102800 Throttle Stop ScrewThrottle Stop Screw
-
24404153400 NippleNipple
-
25M19057 CapCap
-
26404101600 WasherWasher
-
27404103200 Needle Valve 1.5Needle Valve 1.5
-
28404105500 Guide ScrewGuide Screw
-
29404101400 Main Jet MJ 330Main Jet MJ 330
-
30404103000 PlatePlate
-
31404102000 Screw and Lock WasherScrew and Lock Washer
-
32404160100 Air Vent TubeAir Vent Tube
-
33404127400 SpringSpring
-
34404161100 Support-GuideSupport-Guide
-
35404160400 Plunger Ass'yPlunger Ass'y
-
36404112000 Tool KitTool Kit
