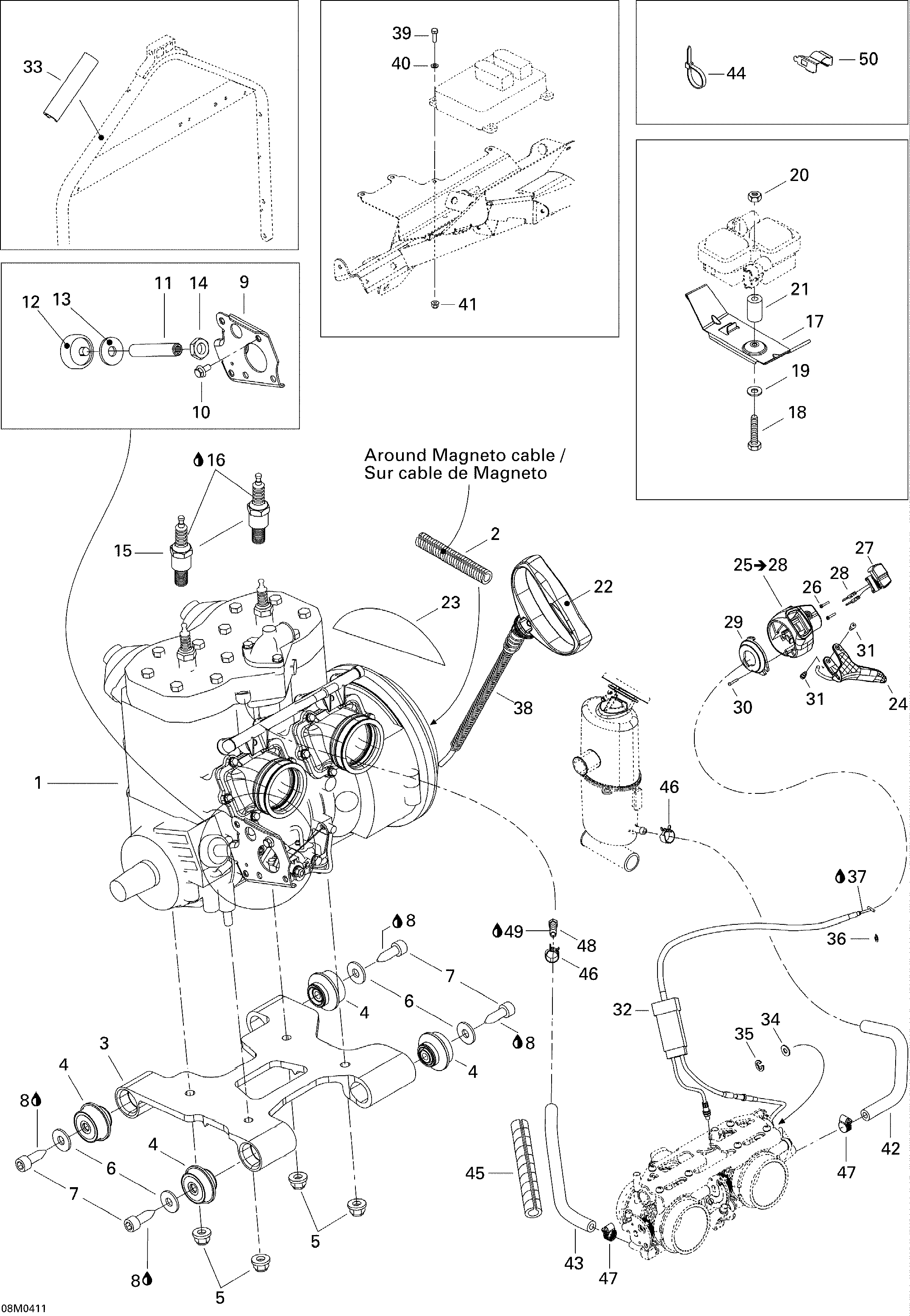

01- Engine support для BRP Ski-Doo MX Z 600 HO SDI - 2004
-
№АртикулНазвание
-
1400509751 Engine 593 Ho Sdi RerEngine 593 Ho Sdi Rer
-
2415080000 Tubing (16 mm)Tubing (16 mm)
-
3512059754 Engine SupportEngine Support
-
4512059691 Rubber MountRubber Mount
-
5233201414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
6506151251 WasherWasher
-
7250000094 Screw M10 X 30Screw M10 X 30
-
8413703400 Loctite 222, 10 CcLoctite 222, 10 Cc
-
9512059840 PlatePlate
-
10207561244 Hex Flanged Screw M6 X 12 (Scotch Grip)Hex Flanged Screw M6 X 12 (Scotch Grip)
-
11250500007 Stopper ScrewStopper Screw
-
12512059610 StopperStopper
-
13512059057 WasherWasher
-
14232170411 Hex. Jam Nut M14Hex. Jam Nut M14
-
15415128524 Spark Plug NGK BR9ECS 0.8mmSpark Plug NGK BR9ECS 0.8mm
-
16293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
17512059865 Coil SupportCoil Support
-
18207064544 Hex Screw M6 X 45Hex Screw M6 X 45
-
19234061410 Flat WasherFlat Washer
-
20232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
21512059812 SpacerSpacer
-
22572084400 Starter GripStarter Grip
-
23512059893 Reflective SheetReflective Sheet
-
24512059766 Handle Ass'Y (28 mm)Handle Ass'Y (28 mm)
-
25512059810 Housing Throttle Ass'YHousing Throttle Ass'Y
-
26250000098 Phillips Screw M2.9 X 16Phillips Screw M2.9 X 16
-
27415128683 Kill SwitchKill Switch
-
28515175232 Male TerminalMale Terminal
-
29512059698 CoverCover
-
30250000098 Phillips Screw M2.9 X 16Phillips Screw M2.9 X 16
-
31732601143 Flanged ScrewFlanged Screw
-
32512059765 Throttle Cable. AdrenalineThrottle Cable. Adrenaline
-
512059878 Throttle Cable. X & Renegade XThrottle Cable. X & Renegade X
-
33512059750 ProtectorProtector
-
34234081100 Flat Washer 8 mmFlat Washer 8 mm
-
35414753500 CirclipCirclip
-
36414274500 CirclipCirclip
-
37293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
38512059535 Rope GuideRope Guide
-
39207151644 Hex Screw M5 X 16Hex Screw M5 X 16
-
40234051410 Flat WasherFlat Washer
-
41233251414 Elastic Flanged Stop Nut M5Elastic Flanged Stop Nut M5
-
42512059563 Formed HoseFormed Hose
-
43512059892 Formed HoseFormed Hose
-
44414115200 Tie Rap 180 mmTie Rap 180 mm
-
45415080000 Tubing (16 mm)Tubing (16 mm)
-
46414655700 Spring ClampSpring Clamp
-
47293650128 Tridon ClampTridon Clamp
-
48293710082 Straight FittingStraight Fitting
-
49293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
50512059809 Heating Element BracketHeating Element Bracket
