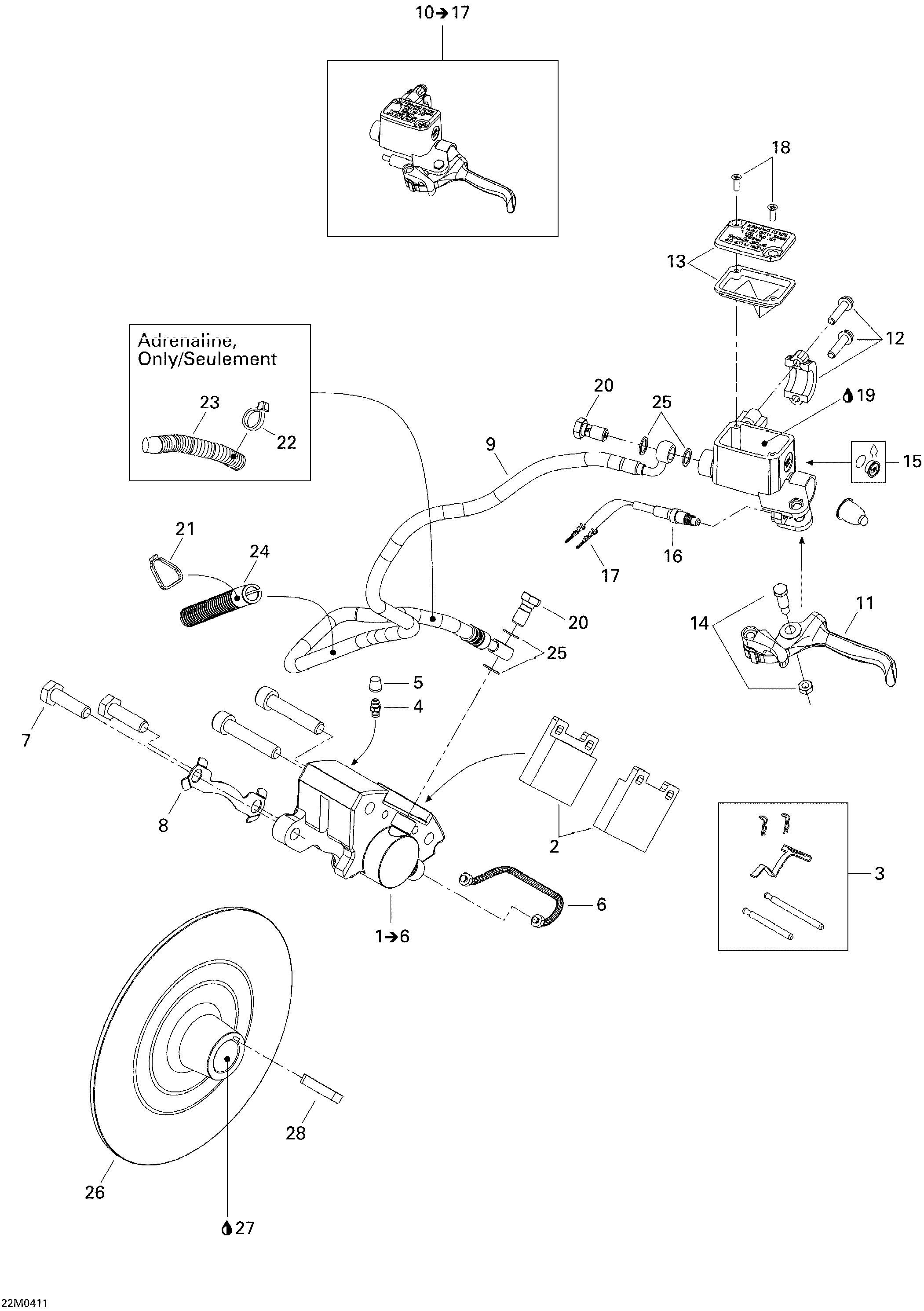

06- Hydraulic brakes для BRP Ski-Doo MX Z 600 HO SDI - 2004
-
№АртикулНазвание
-
1507032382 Caliper. Includes items 1 to 6 / X & Renegade XCaliper. Includes items 1 to 6 / X & Renegade X
-
1507032383 Caliper. Includes items 1 to 6 / AdrenalineCaliper. Includes items 1 to 6 / Adrenaline
-
2415084600 Brake Pad KitBrake Pad Kit
-
3414990700 Kit (Pins, Retainers, Spring)Kit (Pins, Retainers, Spring)
-
4414989800 Bleeder ScrewBleeder Screw
-
5414989700 BootBoot
-
6414989900 Rigid TubingRigid Tubing
-
7207103544 Hex Screw M10 X 35Hex Screw M10 X 35
-
8507032316 Locking TabLocking Tab
-
9507032384 Hose. AdrenalineHose. Adrenaline
-
9507032385 Hose. X & Renegade XHose. X & Renegade X
-
10507032362 Master Cylinder. Includes items 10 to 17Master Cylinder. Includes items 10 to 17
-
11507032268 Brake Short Lever Ass'yBrake Short Lever Ass'y
-
12415029800 Clamp Ass'YClamp Ass'Y
-
13415029900 CapCap
-
14415030000 Pin Ass'YPin Ass'Y
-
15414990600 WindowWindow
-
16507032366 MicroswitchMicroswitch
-
17515175232 Male TerminalMale Terminal
-
18216141260 Screw M4 X 12Screw M4 X 12
-
19293600063 Brake Fluid, Srf (Dot 4)Brake Fluid, Srf (Dot 4)
-
19293600062 Brake Fluid, Gtlma (Dot 4), 12 X 354 mlBrake Fluid, Gtlma (Dot 4), 12 X 354 ml
-
20414920500 Banjo BoltBanjo Bolt
-
21293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
22293750002 Tie-Rap 130 mm. AdrenalineTie-Rap 130 mm. Adrenaline
-
23415079900 Tubing 10 mm. AdrenalineTubing 10 mm. Adrenaline
-
24415079900 Tubing 10 mm. AdrenalineTubing 10 mm. Adrenaline
-
24515175442 Tubing (6 mm). X & Renegade XTubing (6 mm). X & Renegade X
-
25414920600 WasherWasher
-
26507031300 Brake Disk. AdrenalineBrake Disk. Adrenaline
-
26507032301 Brake Disk. X & Renegade XBrake Disk. X & Renegade X
-
27293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
28507021300 KeyKey
