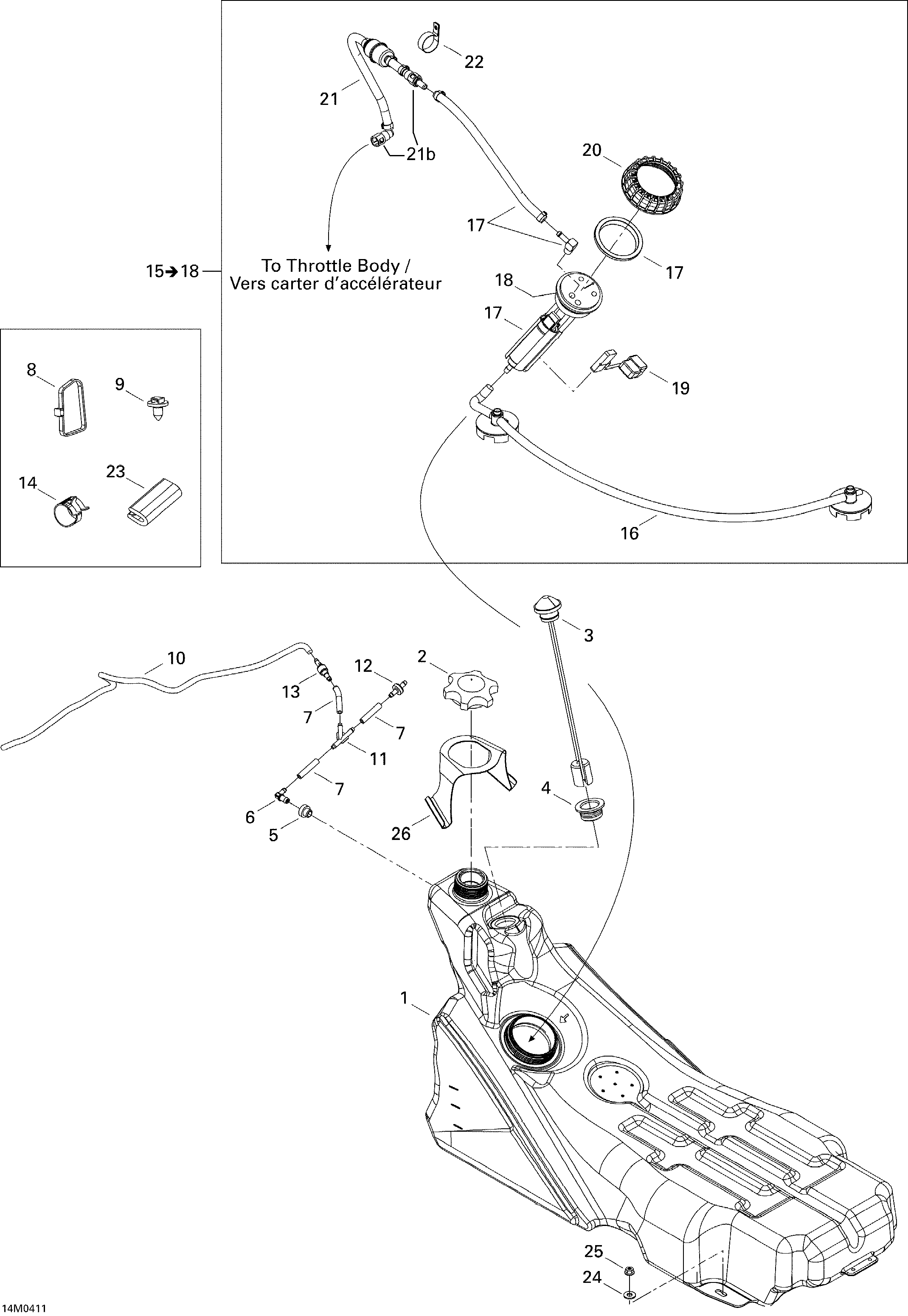

02- Fuel System для BRP Ski-Doo MX Z 600 HO SDI - 2004
-
№АртикулНазвание
-
1513033100 Fuel TankFuel Tank
-
2513033024 Fuel Tank CapFuel Tank Cap
-
3513033092 Fuel GaugeFuel Gauge
-
4293720058 GrommetGrommet
-
5513032908 GrommetGrommet
-
6414580700 Elbow Male ConnectorElbow Male Connector
-
7415080200 LineLine
-
8414115200 Tie Rap 180 mmTie Rap 180 mm
-
9293730018 Dart MountDart Mount
-
10415080200 LineLine
-
11293710059 Y-FittingY-Fitting
-
12275500398 Check ValveCheck Valve
-
13275500505 Check ValveCheck Valve
-
14414554800 Spring ClampSpring Clamp
-
15513033086 Fuel Pump Module. Includes 15 to 18Fuel Pump Module. Includes 15 to 18
-
16861302400 Fuel Hose KitFuel Hose Kit
-
17861302600 Fuel Pump KitFuel Pump Kit
-
18861302100 Regulator KitRegulator Kit
-
19861302500 Float Level Sensor KitFloat Level Sensor Kit
-
20513033040 Fuel Pump Module NutFuel Pump Module Nut
-
21513033087 Fuel Filter Ass'YFuel Filter Ass'Y
-
21b513033135 Locking ClipLocking Clip
-
22513033047 Open ClampOpen Clamp
-
23271000110 TrimTrim
-
24234082410 Flat Washer 8 mm. X, Renegade XFlat Washer 8 mm. X, Renegade X
-
25232581414 Elastic Stop Nut M8. X, Renegade XElastic Stop Nut M8. X, Renegade X
-
26513033066 SupportSupport
